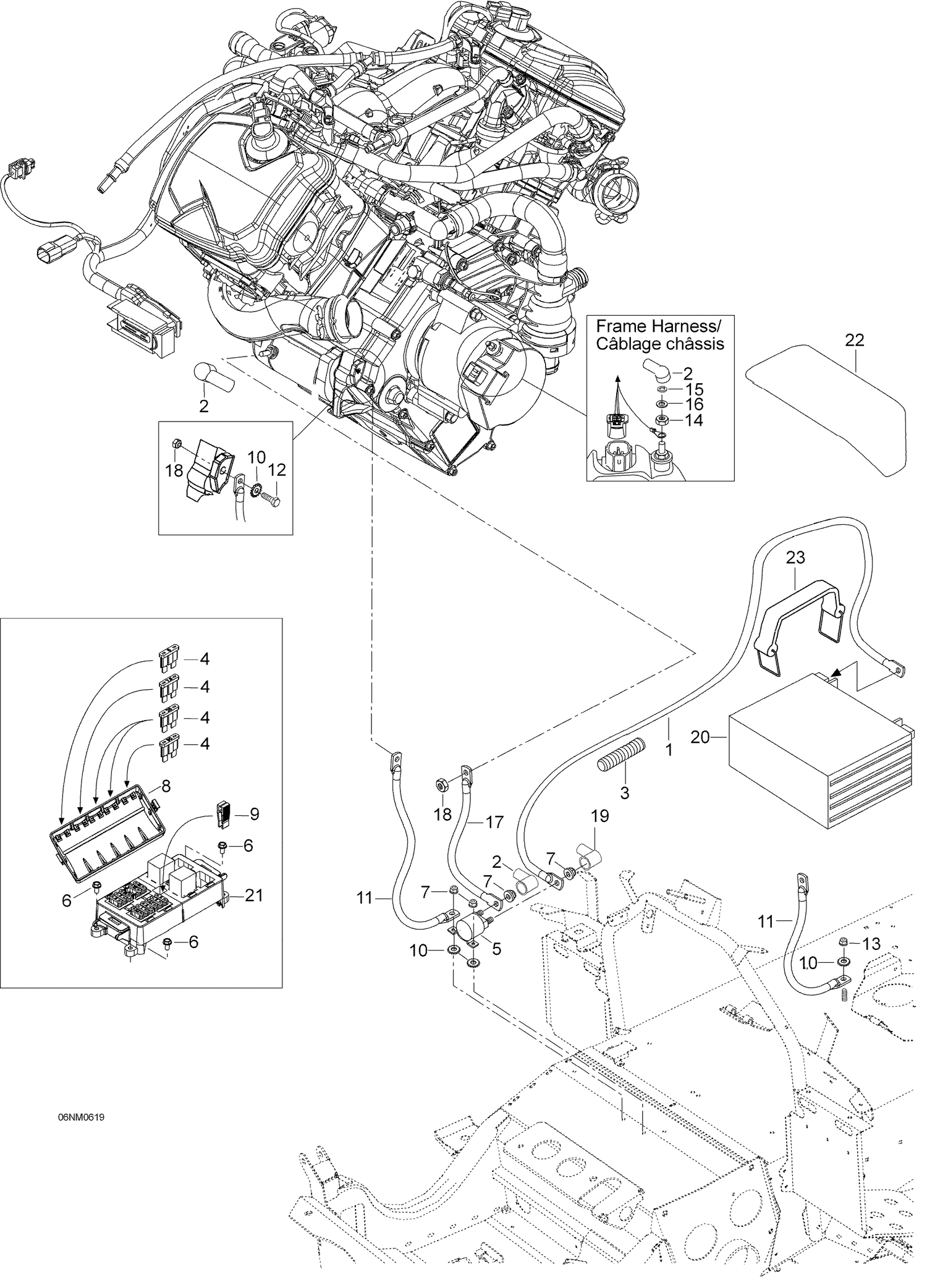

10- Electrical Accessories 2
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605151524 | Battery Wire |
| 2 | 570151000 | Protection Cap |
| 3 | M28012 | HOUSING - Call your local BRP dealership |
| 4 | 278000344 | Fuse, 5 Amperes |
| 4 | 278000704 | FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 4 | 409003900 | Fuse, 20 Amperes |
| 4 | 410917200 | Fuse, 30 Amperes |
| 4 | 710000745 | Little Fuse, 15 Ampere |
| 4 | M42044 | Fuse 1 A |
| 5 | 515176011 | Starter Relay |
| 6 | 210251650 | Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 8 | 515176066 | COVER - Call your local BRP dealership |
| 9 | 515175811 | FUSE TOOL - Call your local BRP dealership |
| 10 | M20017 | SERRATED LOCK WASHER - Call your local BRP dealership |
| 11 | 515175483 | GROUND WIRE - Call your local BRP dealership |
| 12 | 207162044 | Hex. Screw M6 X 20 |
| 13 | 232561414 | Elastic Stop Nut M6 |
| 14 | 232061414 | Hex. Nut M6 |
| 15 | 234161471 | Lock Washer M6, Black |
| 16 | 234061410 | Flat Washer 6 mm |
| 17 | 515175793 | Battery Wire |
| 18 | 232561414 | Elastic Stop Nut M6 |
| 19 | 278000020 | PROTECTION CAP - Call your local BRP dealership |
| 20 | 410922962 | Battery YUASA YTX24-HL |
| 21 | 515176065 | FUSE BOX BASE - Call your local BRP dealership |
| 22 | 605352572 | COVER - Call your local BRP dealership |
