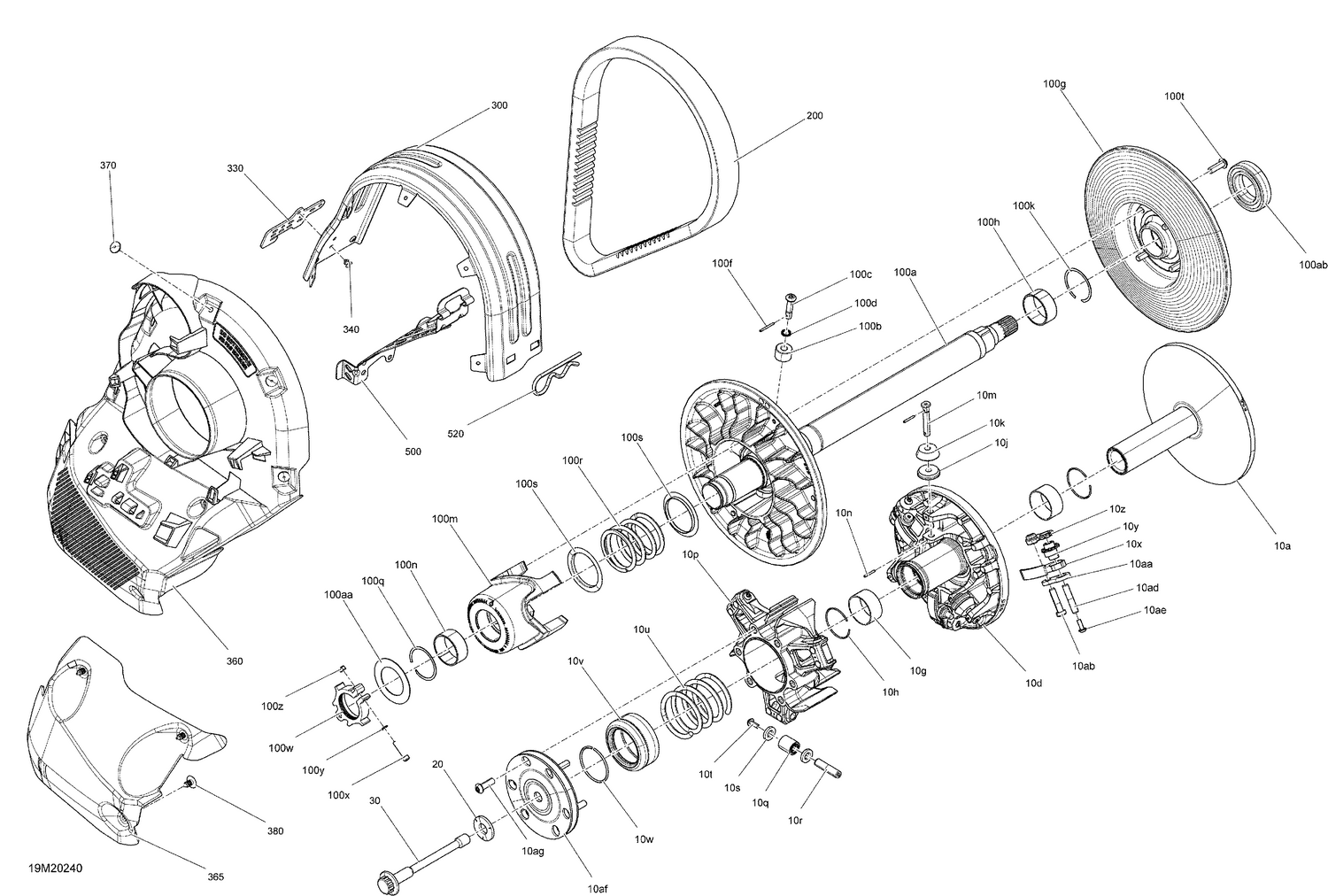

05- Pulley - System
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 417224332 | Fixed Flange Ass'y |
| 10aa | 417224114 | LH Lever |
| 10ab | 417224221 | Pivot 33mm |
| 10ad | 417224694 | Pin Ramp This part replaces 417223631. |
| 10ae | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10af | 417224682 | VIbration Damper This part replaces 417223994. |
| 10ag | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 10g | 293250389 | Bushing |
| 10h | 293370137 | Circlip This part replaces 293370117. |
| 10j | 417224153 | Back Torque Roller |
| 10k | 417224916 | Pulley Roller Ext This part replaces 417224458. |
| 10m | 417224510 | Pin This part replaces 417224191. |
| 10n | 250400101 | Spring Pin 2.6MM X 20.5MM This part replaces 250400074. |
| 10q | 417224947 | Roller Pulley Ass'y This part replaces 417224285. |
| 10r | 417224204 | Axle - 10mm |
| 10s | 417224868 | Thrust Washer This part replaces 417224009. |
| 10t | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10u | 417224172 | Clutch Spring |
| 10v | 417224003 | Seat Spring |
| 10w | 293370116 | Circlip |
| 10x | 417224227 | Ramp 968 |
| 10y | 417224113 | Molded Cam |
| 10z | 417224086 | RH Lever |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300522 | Pulley Drive Bolt M14 X 144 |
| 100aa | 417127155 | Washer |
| 100ab | 504152574 | Ball Bearing |
| 100b | 417127016 | Pulley Roller |
| 100c | 417127294 | Pivot Stud |
| 100d | 250200009 | Lock Washer 8 mm |
| 100f | 250400070 | Spring Pin |
| 100h | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100k | 293370049 | Circlip |
| 100n | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100q | 293370049 | Circlip |
| 100r | 417127137 | Green, Spring |
| 100s | 417127116 | Swivel Abutment |
| 100t | 250000757 | Button Head Torx Screw M8 X 25 S.Gr This part replaces 250000707. |
| 100w | 415129604 | Calibration Ass'y |
| 100x | 250000981 | Socket Screw M5 X 25 |
| 100y | 234051410 | Flat Washer M5 |
| 100z | 232551414 | Elastic Stop Nut M5 |
| 200 | 417300571 | Drive Belt |
| 300 | 417300620 | Belt Guard This part replaces 417300479. |
| 330 | 417300561 | Front Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360 | 417300553 | CVT Duct Cooling |
| 365 | 417300590 | Acoustic Panel This part replaces 417300542. |
| 370 | 293150103 | Pop Rivet 3/16" |
| 380 | 414644300 | Black, Dart |
| 500 | 417300579 | Rear Guard Support |
