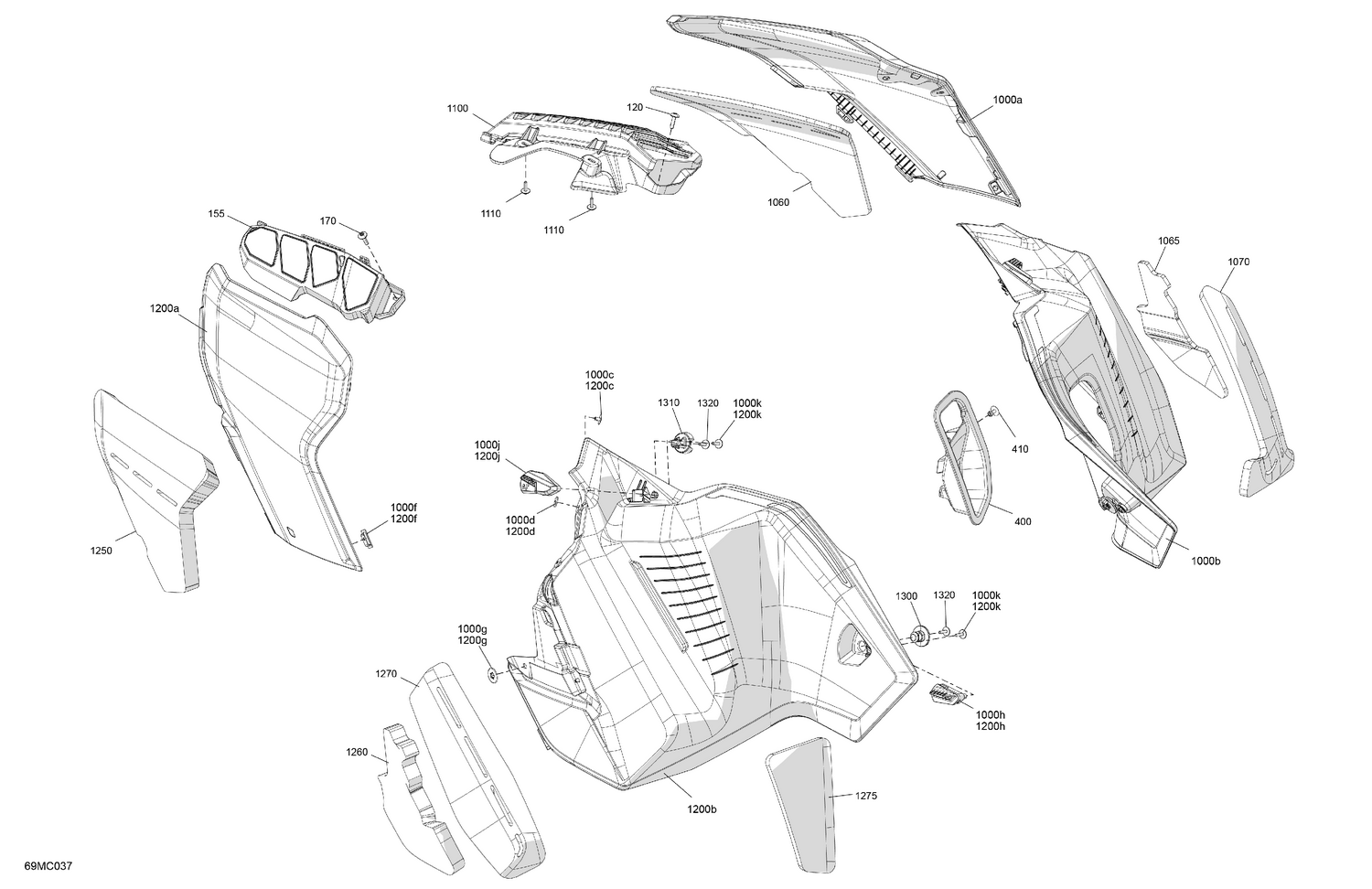

07- Body - Side Panels
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 250000528 | Torx Screw M5 X 20 |
| 155 | 517306690 | LH Hood Trim This part replaces 517308953. |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 400 | 517306302 | Reverse Lever Trim |
| 410 | 293150104 | Pop Rivet 3/16" |
| 1000a | 517307314 | Deep Black, RH Front Panel |
| 1000b | 517306904 | RH Rear Panel |
| 1000c | 293150104 | Pop Rivet 3/16" |
| 1000d | 517124300 | Washer |
| 1000f | 517305109 | Rivet Plate |
| 1000g | 508000853 | Push Nut |
| 1000h | 517305773 | RH Rear Latch |
| 1000j | 517305979 | RH Front Latch |
| 1000k | 250000725 | Screw M4 X 16 |
| 1060 | 517306461 | Foam |
| 1065 | 517306495 | Foam |
| 1070 | 517306845 | RH Rear Panel Foam |
| 1100 | 517308292 | RH Hood Grille Ass'y |
| 1110 | 250000725 | Screw M4 X 16 |
| 1200a | 861805589 | Deep Black, LH Front Panel Kit This part replaces 517307322. |
| 1200b | 517308780 | Deep Black, LH Rear Panel This part replaces 517306296. |
| 1200c | 293150104 | Pop Rivet 3/16" |
| 1200d | 517124300 | Washer |
| 1200f | 517305109 | Rivet Plate |
| 1200g | 508000853 | Push Nut |
| 1200h | 517305774 | LH Rear Latch |
| 1200j | 517305980 | LH Front Latch |
| 1200k | 250000725 | Screw M4 X 16 |
| 1250 | 517306463 | Foam |
| 1260 | 517306464 | Foam |
| 1270 | 517306465 | Foam |
| 1275 | 517306496 | LH Rear Panel Foam |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
