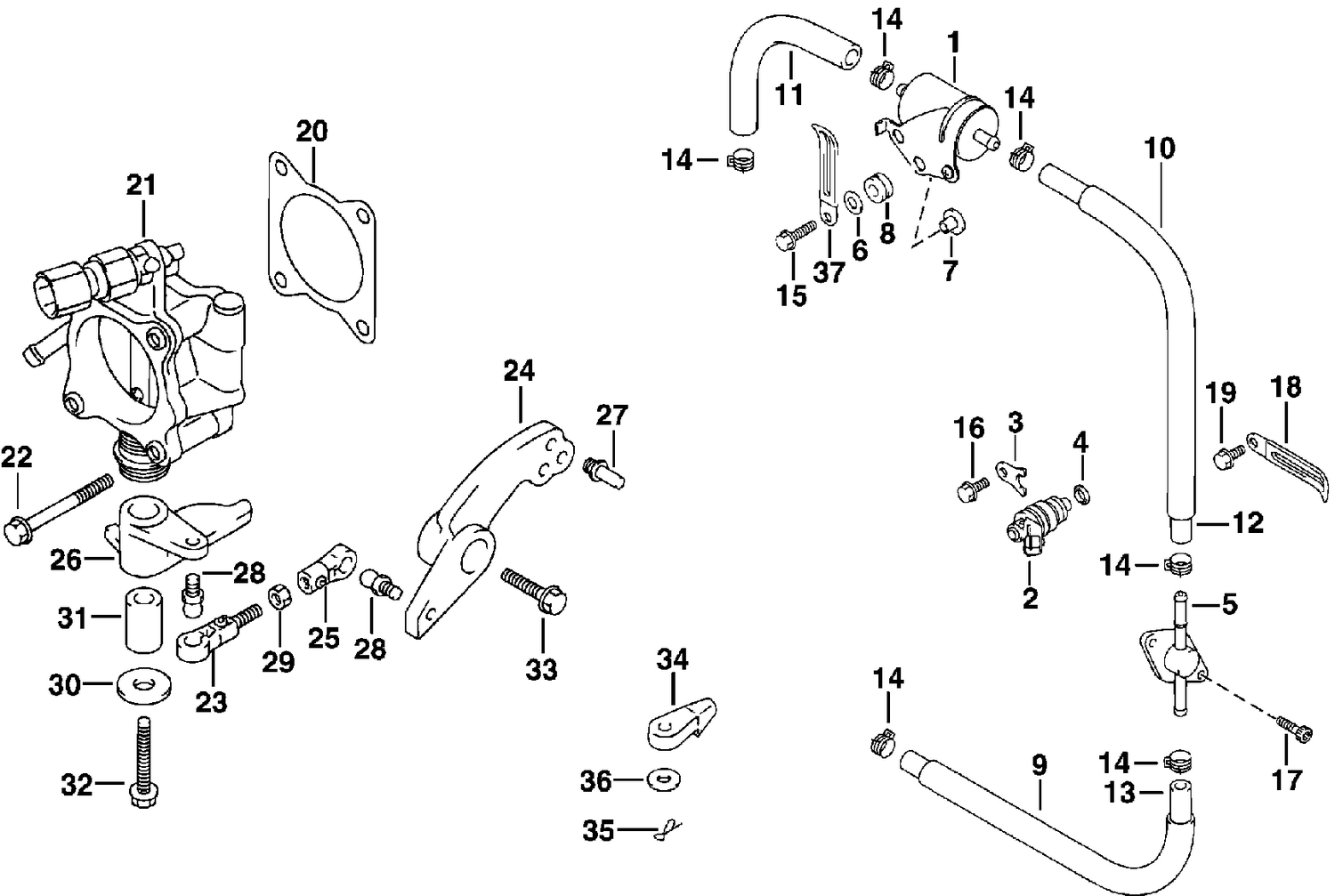

| Ref | Part Number | Description |
|---|
| 1 |
5031400 |
FILTER, HIGH PRESSURE FUEL |
| 2 |
5031403 |
INJECTOR, FUEL |
| 3 |
5031404 |
BRACKET, Fuel injector |
| 5 |
5031406 |
JOINT, Fuel, main |
| 7 |
5030471 |
SPACER |
| 8 |
5030555 |
CUSHION |
| 9 |
5031436 |
SLEEVE, Fuel pump, long |
| 10 |
5031438 |
SLEEVE, Fuel pump, short |
| 14 |
5030579 |
CLAMP |
| 15 |
5030982 |
BOLT |
| 17 |
5031643 |
BOLT |
| 18 |
5031280 |
CLAMP |
| 21 |
5031389 |
BODY, THROTTLE W/CTP SWITCH |
| 22 |
5031644 |
BOLT |
| 23 |
5031391 |
ROD, THROTTLE |
| 24 |
5031440 |
LEVER, Throttle |
| 25 |
5030760 |
CONNECTEUR, TRINGLERIE D’ACCÉLÉRATEUR |
| 26 |
5031441 |
LEVER, THROTTLE |
| 27 |
*5032289 |
PIN,CONNECTOR This part replaces 5031078. |
| 28 |
5030403 |
BOLT |
| 30 |
5031222 |
WASHER |
| 31 |
5031236 |
SPACER |
| 34 |
*5032155 |
CONN,THROTTLE LIMT This part replaces 5030955. |
| 35 |
*5030575 |
CLIP |
| 36 |
*5031080 |
WASHER,CONNECTOR |
