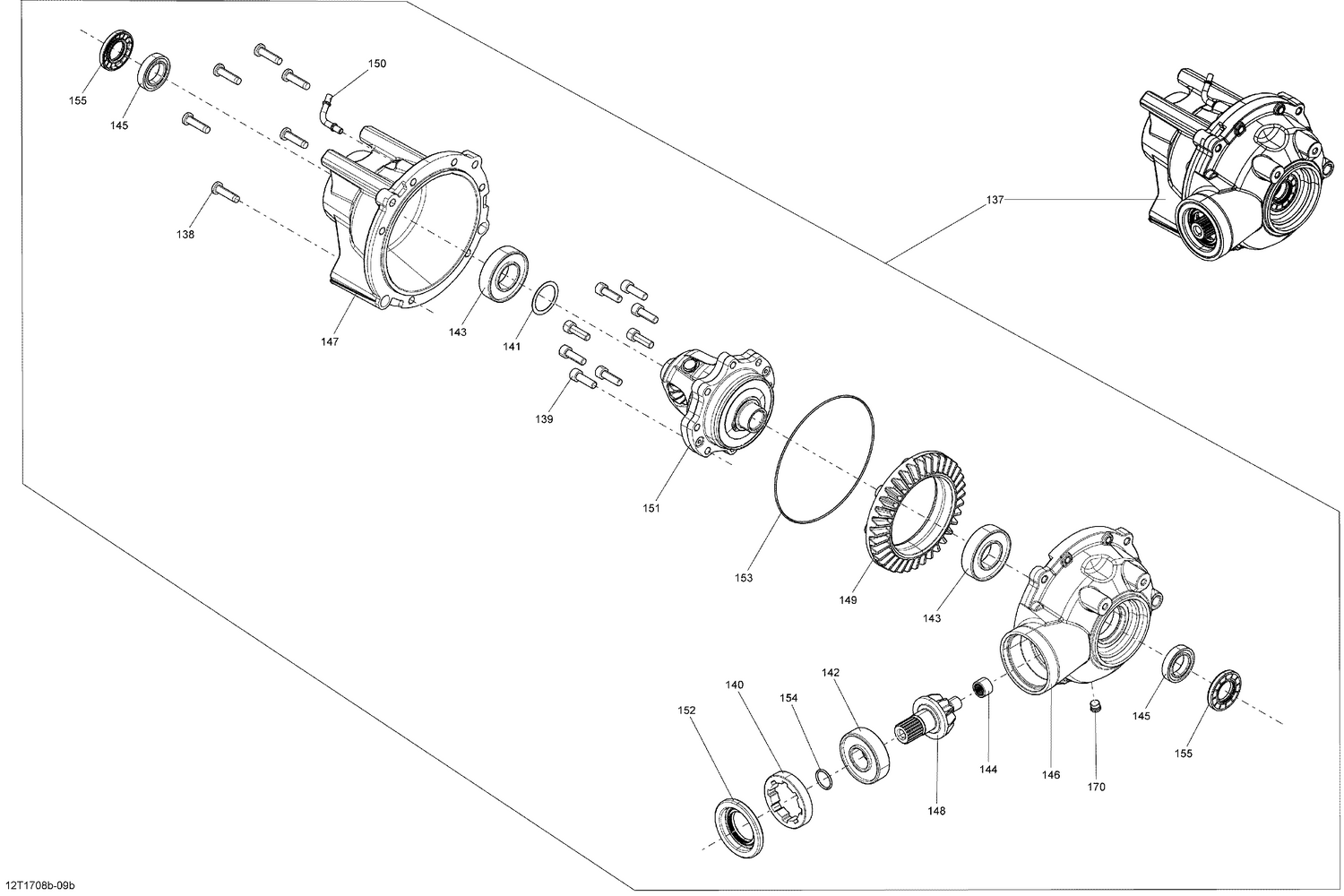

07- Drive System, Front Differential
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 137 | 703500908 | Front Differential This part replaces 705401511. |
| 138 | 705401601 | Screw |
| 139 | 705401602 | Screw |
| 140 | 705401603 | Nut |
| 141 | 705401604 | Shim |
| 142 | 705401605 | Ball Bearing |
| 143 | 705401606 | Ball Bearing |
| 144 | 705402848 | Ball Bearing This part replaces 705401607. |
| 145 | 705401608 | Ball Bearing |
| 146 | 705401792 | Front Pinion Cover This part replaces 705401609. |
| 147 | 705401610 | Front Cover |
| 148 | 705402841 | Pinion 10 Teeth This part replaces 705401611. |
| 149 | 705401612 | Gear 36 Teeth |
| 150 | 705401613 | Vent Valve |
| 151 | 705402182 | Differential This part replaces 705401506. |
| 152 | 705401615 | Oil Seal |
| 153 | 705401616 | Seal |
| 154 | 705401617 | O'Ring |
| 155 | 705401618 | Gasket |
