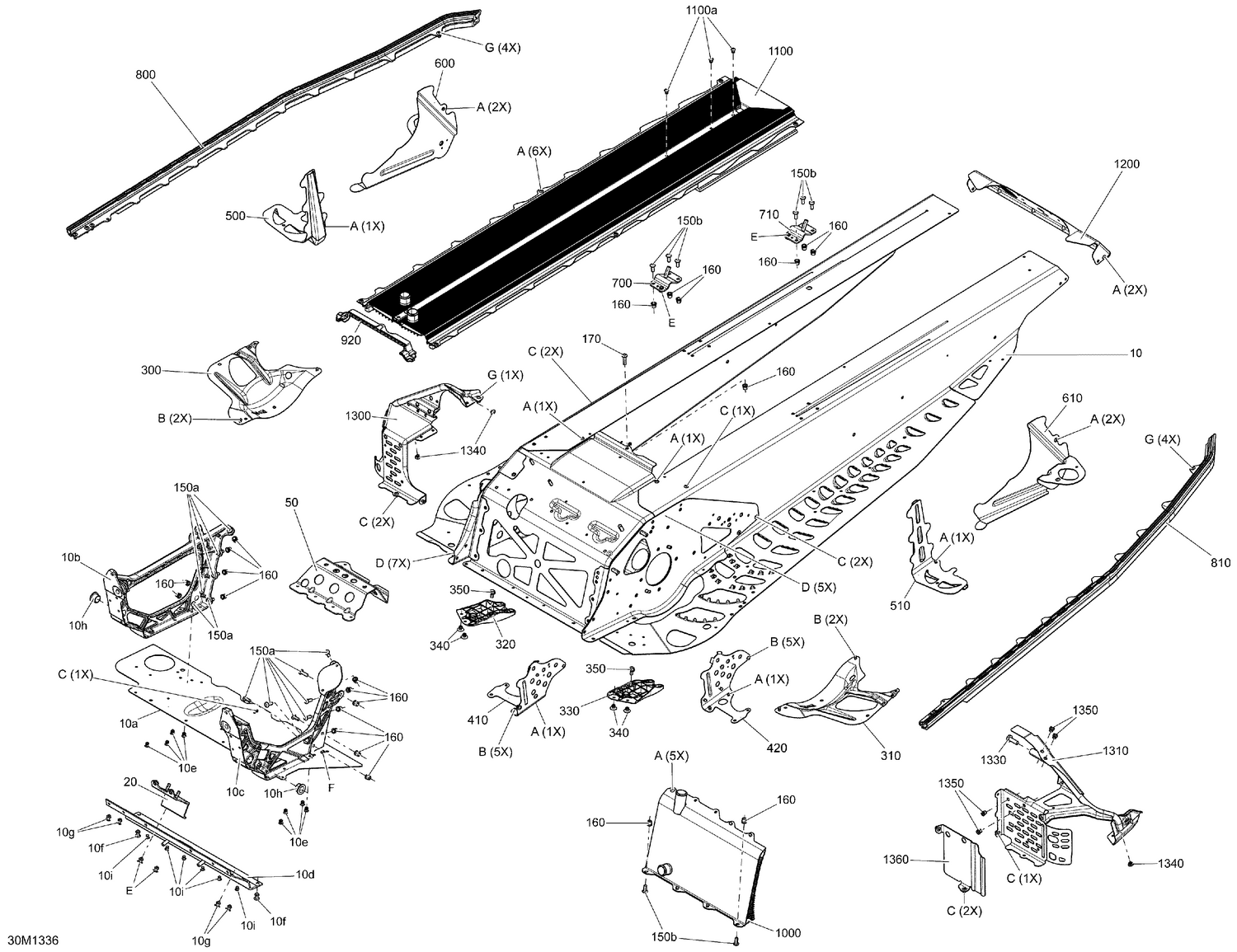

09- Frame
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| A | 390909200 | Avex Rivet |
| B | 390909100 | Avex Rivet |
| C | 293150144 | Stavex Rivet |
| D | 293150146 | Henrob Rivet |
| E | 293150119 | Hemlock Rivet, 6.5 mm |
| F | 293150174 | Hemlock Rivet, 6.4 mm |
| 10b | 518326795 | RH Member |
| 10c | 518326796 | LH Member |
| 10d | 518326198 | Front Member |
| 10e | 293150144 | Stavex Rivet |
| 10f | 293150120 | Hemlock Rivet 6.5 mm |
| 10g | 293150119 | Hemlock Rivet, 6.5 mm |
| 10h | 505073317 | Leg Cushion |
| 10i | Not | Available As Spare Part - Rivet |
| 20 | 518325943 | MAG Engine Support |
| 50 | 518325796 | LINK CROSS - Call your local BRP dealership |
| 150a | 207662044 | Hex. Flange Screw M6 X 20 |
| 150b | 207661644 | Hex. Flange Screw M6 X 16 |
| 160 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 170 | 207662044 | Hex. Flange Screw M6 X 20 |
| 300 | 518326468 | Foot Reinforcement RH |
| 310 | 518326469 | Foot Reinforcement LH |
| 320 | 518325782 | RH Deflector, Black Polypropylene |
| 330 | 518325783 | LH Deflector, Black Polypropylene |
| 340 | 293150104 | Pop Rivet 3/16" |
| 350 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 410 | 518326616 | RH Front Suspension Retainer |
| 420 | 518326617 | LH Front Suspension Retainer |
| 500 | 518325747 | RH REINFORCEMENT - Call your local BRP dealership |
| 510 | 518325748 | LH REINFORCEMENT - Call your local BRP dealership |
| 600 | 518326766 | RH REAR SUPPORT - Call your local BRP dealership |
| 610 | 518326767 | LH REAR SUPPORT - Call your local BRP dealership |
| 700 | 518325973 | RH Rear Base |
| 710 | 518325974 | LH Rear Base |
| 800 | 518326282 | RH FOOT ROLLER - Call your local BRP dealership |
| 810 | 518326283 | LH Foot Roller |
| 920 | 518326656 | Seal |
| 1000 | 518326485 | Front Radiator This part replaces 518326486. |
| 1100a | 390909100 | Avex Rivet |
| 1200 | 518327105 | Rear Cap |
| 1300 | 518328938 | RH Stirup This part replaces 518326216. |
| 1310 | 518327935 | LH STIRUP - Call your local BRP dealership This part replaces 518326239. |
| 1330 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 1340 | 293730042 | Full Moon Dart 5 mm |
| 1350 | 293450268 | Insert M5 X 0.8 |
| 1360 | 518326188 | PLATE - Call your local BRP dealership |
