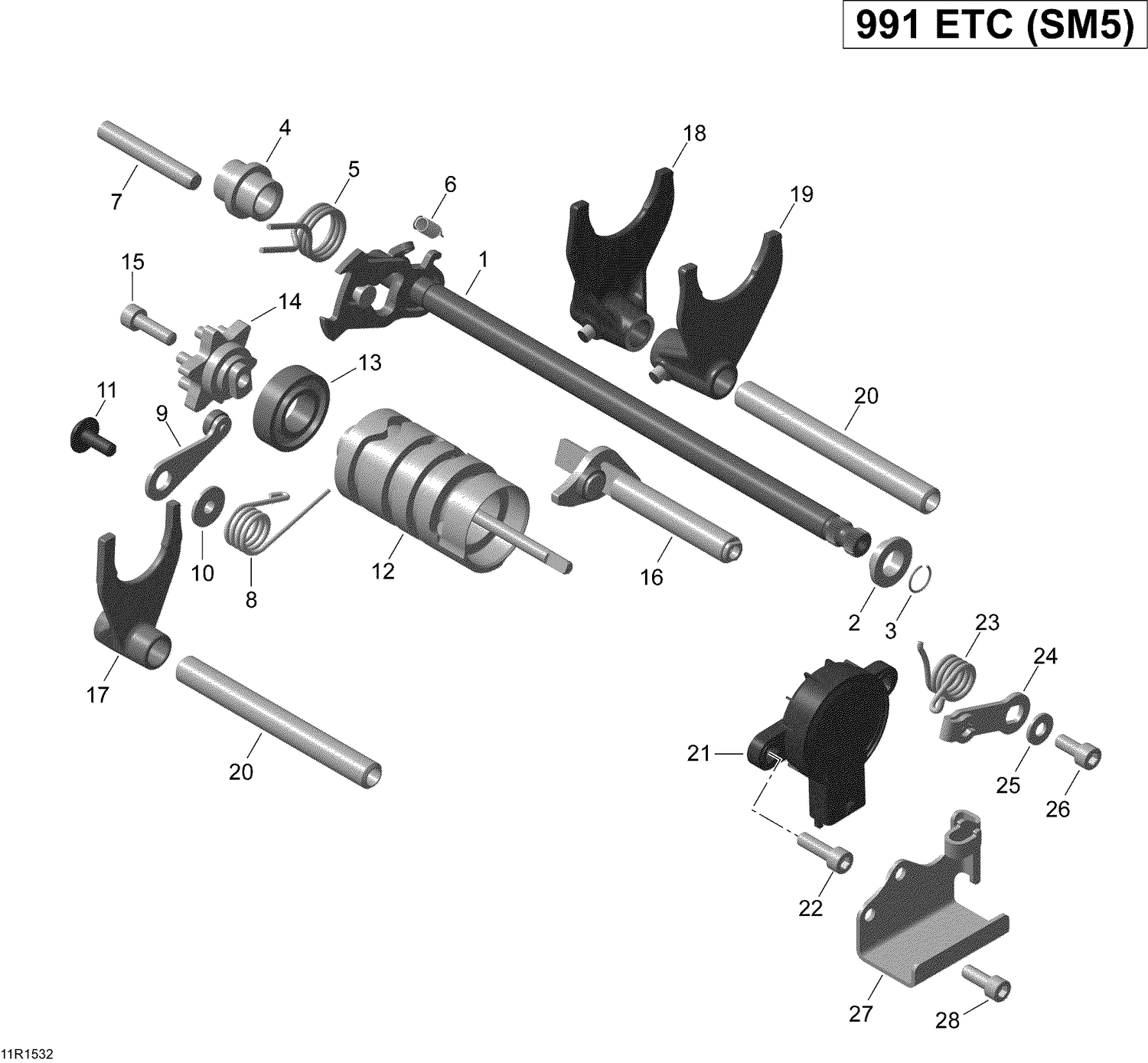

05- Shifting System _11R1532
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420227714 | STEP RING - Call your local BRP dealership |
| 3 | 420245440 | Snap Ring |
| 4 | 420247940 | Step Sleeve |
| 5 | 420239422 | SPRING - Call your local BRP dealership |
| 6 | 420239431 | Spring This part replaces 420239430. |
| 7 | 420229385 | PIN, M6 X 55 - Call your local BRP dealership |
| 8 | 420239248 | Return Spring |
| 9 | 420248376 | INDEXATION LEVER - Call your local BRP dealership |
| 10 | 420227716 | Step Ring |
| 11 | 420241522 | Torx Screw M6 X 16 This part replaces 420241529. |
| 12 | 420657026 | SHIFT DRUM - Call your local BRP dealership |
| 13 | 420232625 | Ball Bearing |
| 14 | 420258310 | Indexation Shim |
| 15 | 420241939 | Allen Screw M6 X 20 |
| 16 | 420620706 | Locking Shaft |
| 17 | 420257690 | SHIFT FORK SHAFT - Call your local BRP dealership |
| 18 | 420258355 | Shift Fork Shaft |
| 19 | 420258365 | Shift Fork Shaft |
| 20 | 420258383 | Fork Spindle |
| 21 | 420266168 | Angle Rotation Sensor |
| 22 | 420441835 | Torx Flange Screw M6 X 20 This part replaces 420440209. |
| 23 | 420838415 | SPRING - Call your local BRP dealership |
| 24 | 420248275 | Control Lever |
| 25 | 224061121 | Flat Washer |
| 26 | 420840391 | Allen Screw M6 X 14 |
| 27 | 420251565 | REVERSE CABLE SUPPORT - Call your local BRP dealership |
