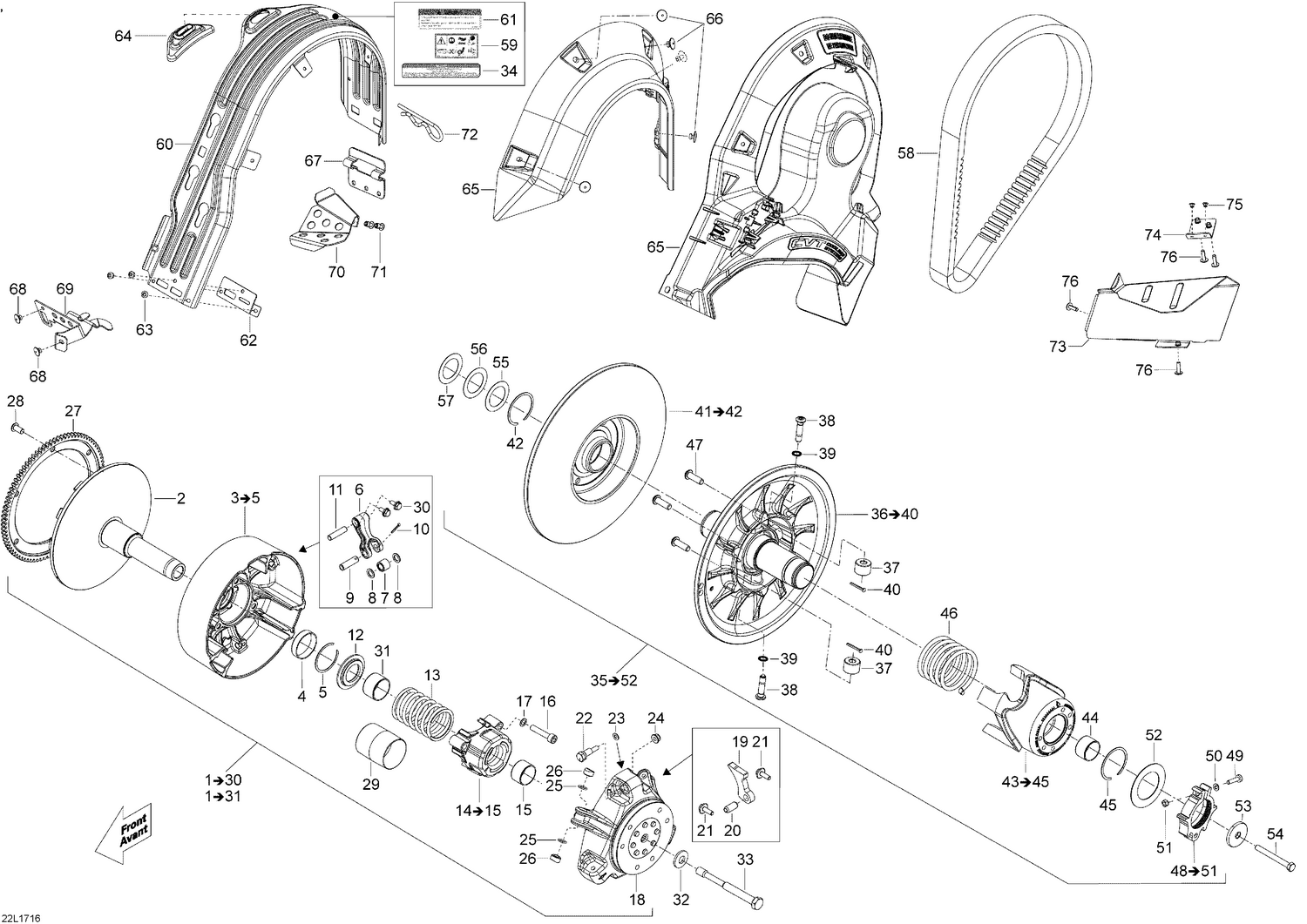

05- Pulley System
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417223232 | Fixed Flange Ass'y |
| 4 | 417223086 | Bushing |
| 5 | 293370071 | Double Circlip |
| 6 | 417222671 | Lever Ass'y |
| 7 | 417222947 | Roller |
| 8 | 417004302 | Stopper Washer |
| 9 | 417222594 | Pin |
| 10 | 250400060 | Cotter Pin |
| 11 | 417223164 | Lever Axle |
| 12 | 417222312 | Spring Seat |
| 13 | 414742100 | SPRING YELLOW/GREEN - Call your local BRP dealership |
| 15 | 417009204 | Bushing |
| 16 | 205084044 | Socket Head Screw M8 x 40 |
| 17 | 250200009 | Lock Washer 8mm |
| 18 | 417223666 | Governor Cup Ass'y |
| 19 | 417222508 | Ramp (413) |
| 20 | 250400050 | Spring Pin |
| 21 | 250000418 | Hex. Flange Screw M6 x 18 |
| 22 | 417223501 | Calibration Screw |
| 23 | 417005600 | Washer |
| 24 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 25 | 732401030 | O-Ring |
| 26 | 417223271 | Slider Shoe |
| 27 | 417225071 | Ring Gear_Starter This part replaces 417223739. |
| 28 | 250000533 | Torx Screw M8 x 16 |
| 29 | 417009205 | Guard |
| 30 | 250000412 | Hex. Flange Screw M6 x 12 |
| 30 | 250000416 | Hex. Flange Screw M6 x 16 |
| 31 | 417223471 | Bushing |
| 32 | 250200144 | Conical Spring Washer M14 |
| 33 | 417300409 | Drive Pulley Bolt |
| 34 | 516005503 | Drive Pulley Bolt Decal |
| 37 | 417127189 | Roller |
| 38 | 417127294 | Stud |
| 39 | 250200009 | Lock Washer M8 |
| 40 | 250400063 | Spring Pin M3 x 30 |
| 42 | 293370049 | Spacer (1.91/2.21mm) |
| 44 | 417127318 | Bushing |
| 45 | 293370049 | Spacer (1.91/2.21mm) |
| 46 | 417127243 | Spring (White / White, 476-705N / 107-158lbs) |
| 47 | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 49 | 205052544 | Socket Head Screw M10 x 1.5 |
| 50 | 234051410 | Flat Washer M5 |
| 51 | 232551414 | Elastic Stop Nut M5 |
| 52 | 417127155 | Washer |
| 53 | 517302322 | Strength Washer |
| 54 | 207287544 | Hex. Cap Screw M8 x 75 |
| 58 | 417300571 | Drive Belt This part replaces 417300391. |
| 59 | 516003919 | Warning Label |
| 60 | 417300357 | Belt Guard |
| 61 | 516006900 | Belt Guard Security Decal |
| 62 | 417300380 | Reinforcement |
| 63 | 390909200 | Avex Rivet |
| 64 | 417300381 | Guide |
| 65 | 417300441 | CVT Air Duct |
| 66 | 293150103 | Pop Rivet 3/16 |
| 67 | 417300363 | Belt Guard Bracket |
| 68 | 293150104 | Pop Rivet 3/16 |
| 69 | 417300364 | Bracket |
| 70 | 518325626 | Brake Hose Cover |
| 71 | 293150163 | Rivet Hucklok |
| 72 | 114045200 | Hair Pin |
