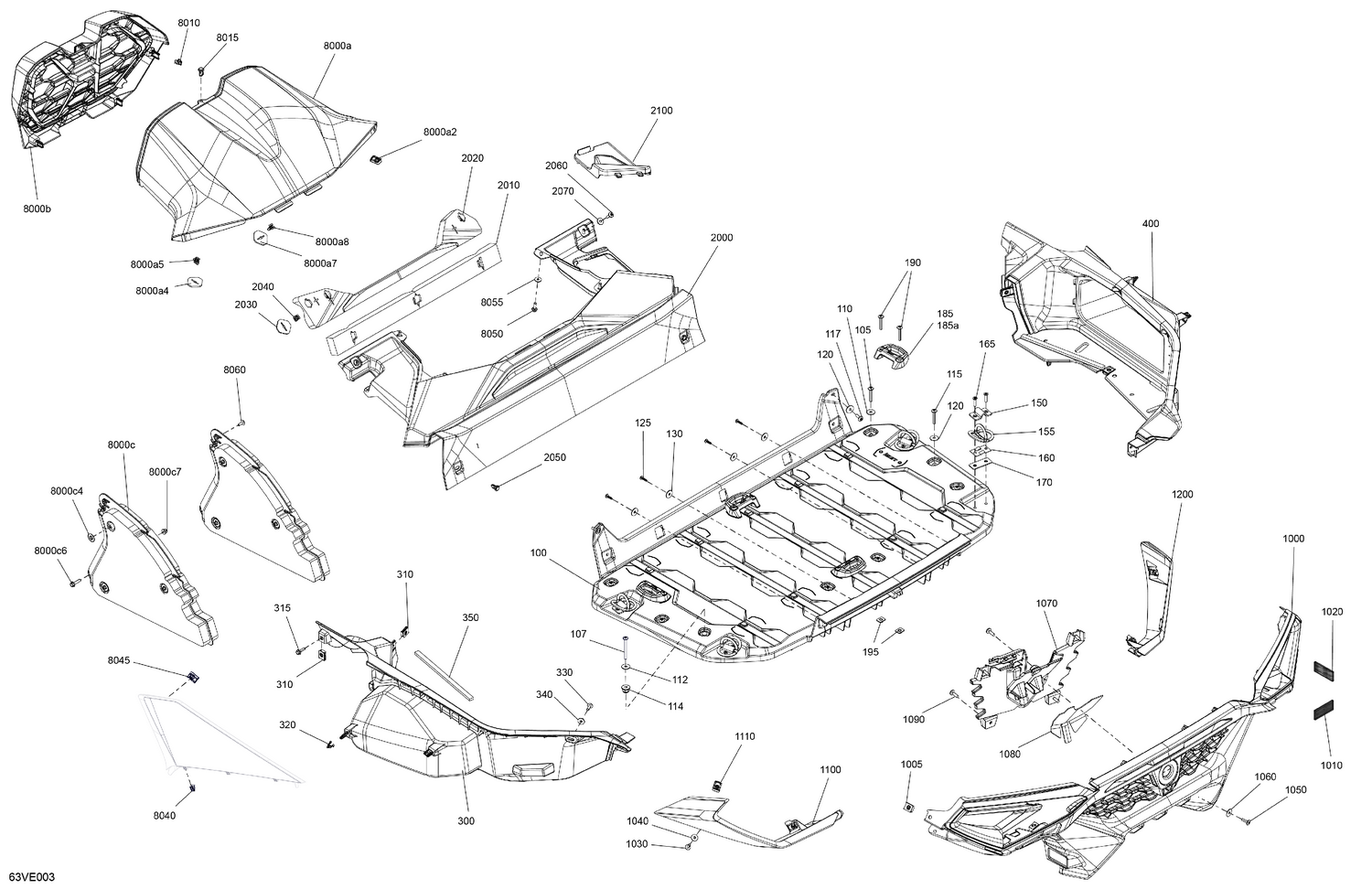

07- Body - Cargo
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 708303769 | Luggage Rack |
| 105 | 250001003 | Torx-Truss M/S M6 X 40 |
| 107 | 250000954 | Torx Screw M6 X 70 |
| 110 | 250200162 | Flat Washer M6.6 X 22 |
| 112 | 250200162 | Flat Washer M6.6 X 22 |
| 114 | 233261494 | Hex. Flange Elastic Nut M6 |
| 115 | 250001003 | Torx-Truss M/S M6 X 40 |
| 117 | 250000722 | Torx Screw M6 X 20 |
| 120 | 250200162 | Flat Washer M6.6 X 22 |
| 125 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 130 | 250200162 | Flat Washer M6.6 X 22 |
| 150 | 708302992 | Tie-Down Ring Bracket |
| 155 | 708302990 | D-Ring |
| 160 | 708302991 | Tie-Down Ring Spring |
| 165 | 250001107 | Torx Flat Head Screw T-30 S.Grip M6X25 |
| 170 | 708304337 | Retaining Plate |
| 185a | 860201806 | Luggage Rack Base With Hardware |
| 190 | 250001003 | Torx-Truss M/S M6 X 40 |
| 195 | 708304332 | Retaining Plate |
| 300 | 705016220 | LH Box Panel |
| 310 | 250100208 | Panel Nut M6 X 1.0 |
| 315 | 207662054 | Hex. Flange Screw M6 X 20 |
| 320 | 517306478 | Clip |
| 330 | 250000722 | Torx Screw M6 X 20 |
| 340 | 234062670 | Stainless Steel Flat Washer |
| 350 | 219704386 | Seal 3000MM Long |
| 400 | 705016221 | RH Box Panel |
| 1000 | 708304481 | Rear Fascia |
| 1005 | 250100208 | Panel Nut M6 X 1.0 |
| 1010 | 520001820 | Red Reflector |
| 1020 | 520002680 | Amber, Reflector |
| 1030 | 250000722 | Torx Screw M6 X 20 |
| 1040 | 234062670 | Stainless Steel Flat Washer |
| 1050 | 250000722 | Torx Screw M6 X 20 |
| 1060 | 234062670 | Stainless Steel Flat Washer |
| 1070 | 708304335 | Camera Support |
| 1080 | 708304271 | Heat Shield |
| 1090 | 250000720 | Torx Screw K50 X 16 |
| 1100 | 708303788 | Deep Black, LH Taillight Trim |
| 1110 | 250100208 | Panel Nut M6 X 1.0 |
| 1200 | 708303789 | Deep Black, RH Taillight Trim |
| 2000 | 708303964 | Intercooler Cover |
| 2010 | 708304244 | Lower Acoustic Insulation Cover |
| 2020 | 708304322 | Upper Acoustic Insulation Cover |
| 2030 | 705003841 | Support Plate |
| 2040 | 517302785 | Edge Clip |
| 2050 | 293150230 | Tuflok Plastic Rivet |
| 2060 | 250000722 | Torx Screw M6 X 20 |
| 2070 | 234062670 | Stainless Steel Flat Washer |
| 2100 | 705017038 | Access Cover |
| 8000a2 | 250100208 | Panel Nut M6 X 1.0 |
| 8000a4 | 705003841 | Support Plate |
| 8000a5 | 517302785 | Edge Clip |
| 8000a7 | 705003841 | Support Plate |
| 8000a8 | 517302785 | Edge Clip |
| 8000b | 708304061 | Central Air Inlet Grille |
| 8000c4 | 508000853 | Push Nut |
| 8000c6 | 207662554 | Hex. Flange Screw M6 X 25 |
| 8000c7 | 233261494 | Hex. Flange Elastic Nut M6 |
| 8010 | 517306478 | Clip |
| 8015 | 293150230 | Tuflok Plastic Rivet |
| 8040 | 517306478 | Clip |
| 8045 | 250100208 | Panel Nut M6 X 1.0 |
| 8050 | 207662054 | Hex. Flange Screw M6 X 20 |
| 8055 | 234062670 | Stainless Steel Flat Washer |
