| Ref | Part Number | Description |
|---|
| 1 |
0343170 |

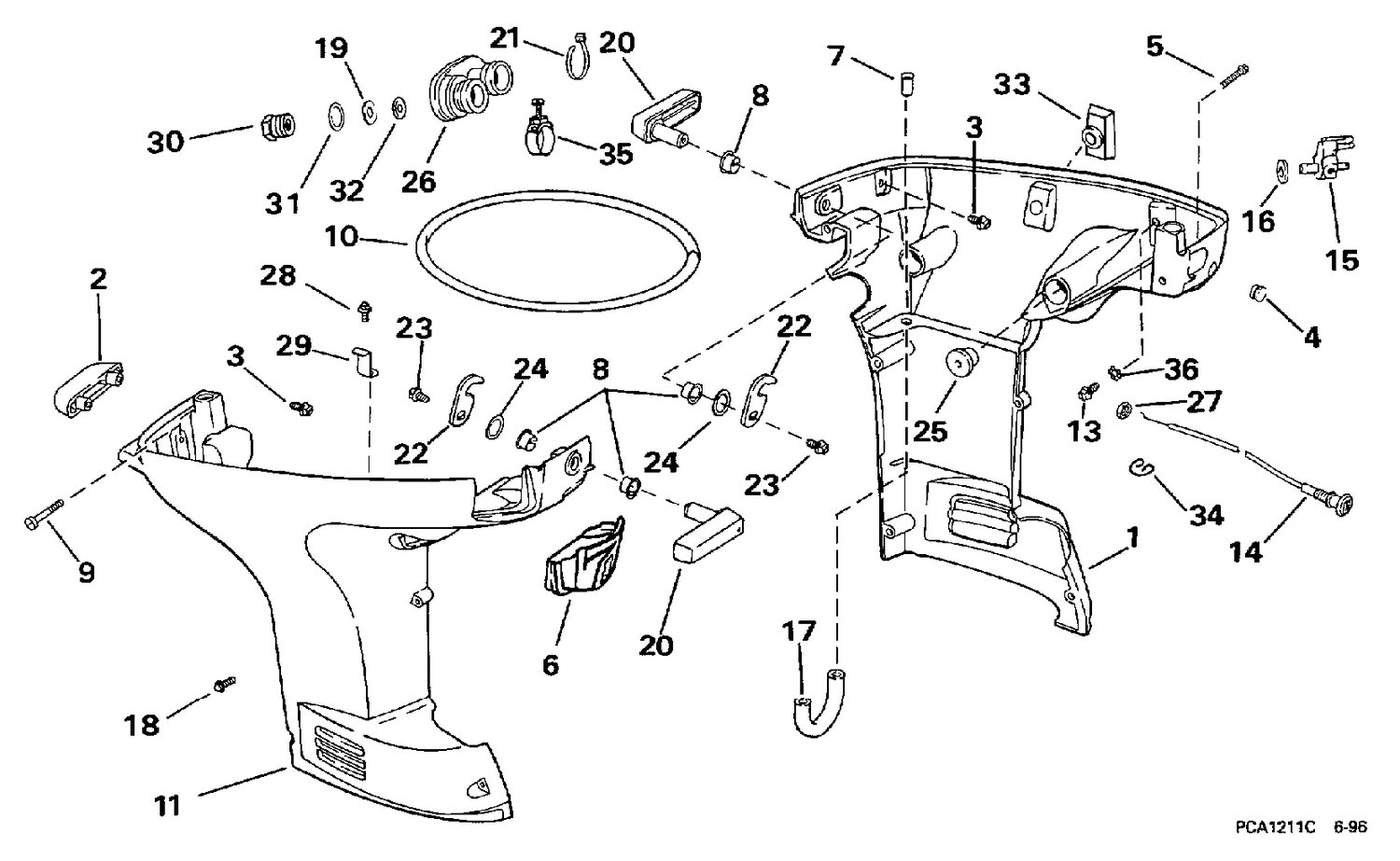

ENGINE COVER ASSY., Lower, port |
| 2 |
0344466 |
BUMPER, Cover This part replaces 0340742. |
| 3 |
0338318 |
SCREW, Bumper to cover |
| 5 |
0341989 |
SCREW, Cover, front, M6 |
| 6 |
0339446 |
GROMMET |
| 6 |
0339447 |
GROMMET |
| 9 |
0341989 |
SCREW, Cover, front, M6 |
| 10 |
0339390 |
EXHAUST HOUSING SEAL, Upper |
| 11 |
0344461 |
ENGINE COVER, Lower, stbd. This part replaces 0343442. |
| 14 |
0437011 |
CHOKE CABLE |
| 17 |
0336225 |
FLEXIBLE, connecteur vers filtre |
| 20 |
0433514 |
HANDLE ASSY. |
| 21 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 22 |
0335570 |
HOOK, Front & rear |
| 25 |
0332413 |
MOUNT |
| 26 |
0436223 |
GROMMET, Exhaust relief |
| 30 |
0436857 |
BOUCHON & GICLEUR, indicateur d'éjection |
| 31 |
0301967 |
O RING |
| 32 |
0335530 |
REED VALVE |
| 34 |
0336417 |
DISPOSITIF DE RETENUE, tringlerie de sens de marche |
| 35 |
0336136 |
CLAMP |
