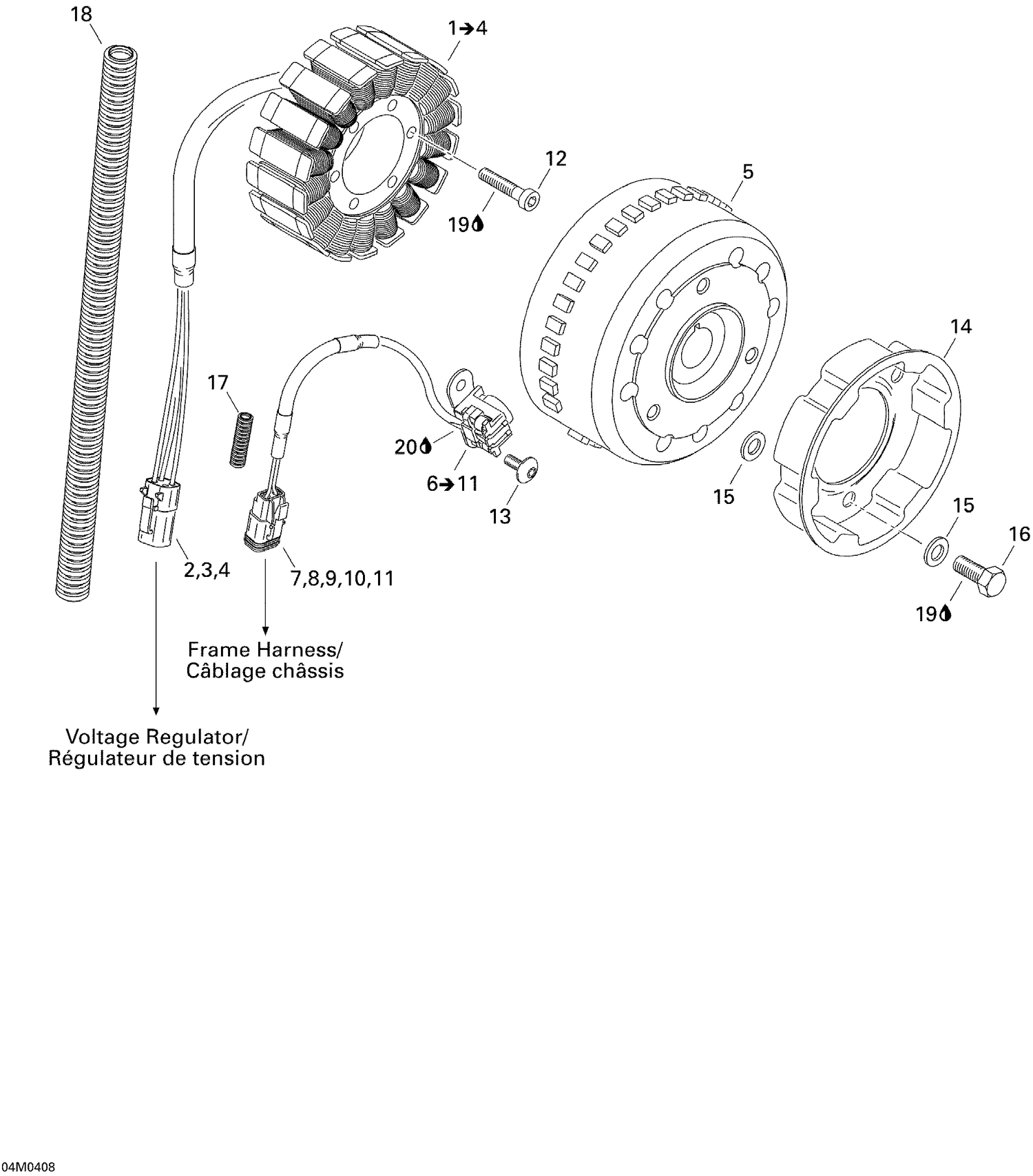

03- Magneto (12V, 480W)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 278001473 | Female Terminal Housing, 4 Circuits |
| 3 | 515175568 | Male Terminal |
| 4 | 278001474 | Female Lock, 4 Circuits |
| 7 | 515175670 | Female Terminal Housing, 2 Circuits |
| 8 | 278000632 | Female Terminal |
| 9 | 278001661 | FEMALE TERMINAL - Call your local BRP dealership |
| 10 | 515175675 | Female Lock, 2 Circuits |
| 11 | 293000052 | Sealing Cap |
| 12 | 420241816 | SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 13 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 14 | 420852533 | Starting Pulley This part replaces 420852532. |
| 15 | 420827405 | Flat Washer |
| 16 | 207181644 | Hex. Screw M8 x 16 |
| 17 | 420660911 | TUBE - Call your local BRP dealership |
| 18 | 420460012 | TUBE - Call your local BRP dealership |
| 19 | 293800060 | Loctite 243, 10 ml |
