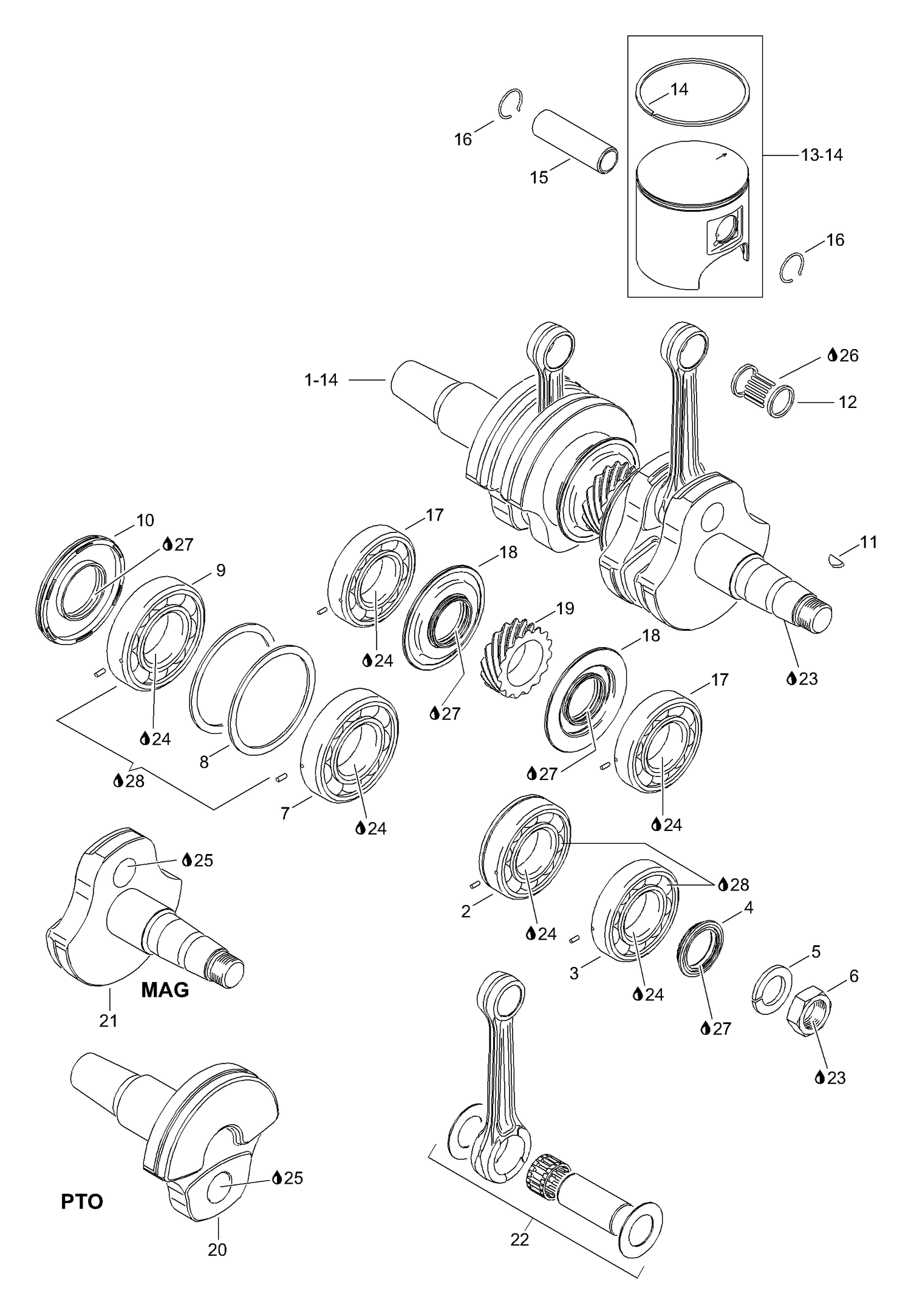

01- Crankshaft Assy
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420832596 | Ball bearing assy This part replaces 420832595. |
| 3 | 420832590 | Ball bearing assy |
| 4 | 420931795 | Oil Seal This part replaces 420931792. |
| 5 | 420945759 | Lock washer |
| 6 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 7 | 420832673 | Ball Bearing Sealed, 6207 This part replaces 420832635. |
| 8 | 420927710 | Retaining disk |
| 9 | 420832575 | Ball Bearing 6207 |
| 10 | 420831952 | Oil seal |
| 11 | 420246015 | Woodruff Key |
| 12 | 420832445 | Needle Bearing This part replaces 420832425. |
| 14 | 420815155 | Retangular ring |
| 14 | 420815156 | Retangular ring |
| 15 | 420916412 | Piston Pin This part replaces 420916410. |
| 16 | 420845106 | Piston Circlip |
| 17 | 420832590 | Bearing 6206 assy |
| 18 | 420931940 | Oil seal |
| 19 | 420834350 | Central gear 15T |
| 20 | 420818665 | CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818666. |
| 21 | 420818697 | Crankshaft This part replaces 420818693. |
| 22 | 420890973 | Rod repair kit (MAG side) This part replaces 420888753. |
| 22 | 420890974 | Rod Repair Kit, PTO Side This part replaces 420888754. |
| 23 | 293800060 | Loctite 243, 10 ml This part replaces 420899785. |
| 24 | 420297434 | Loctite anti seize |
| 25 | 420897340 | Loctite 14486, 250ml |
| 27 | 420899271 | Klueber petamo |
