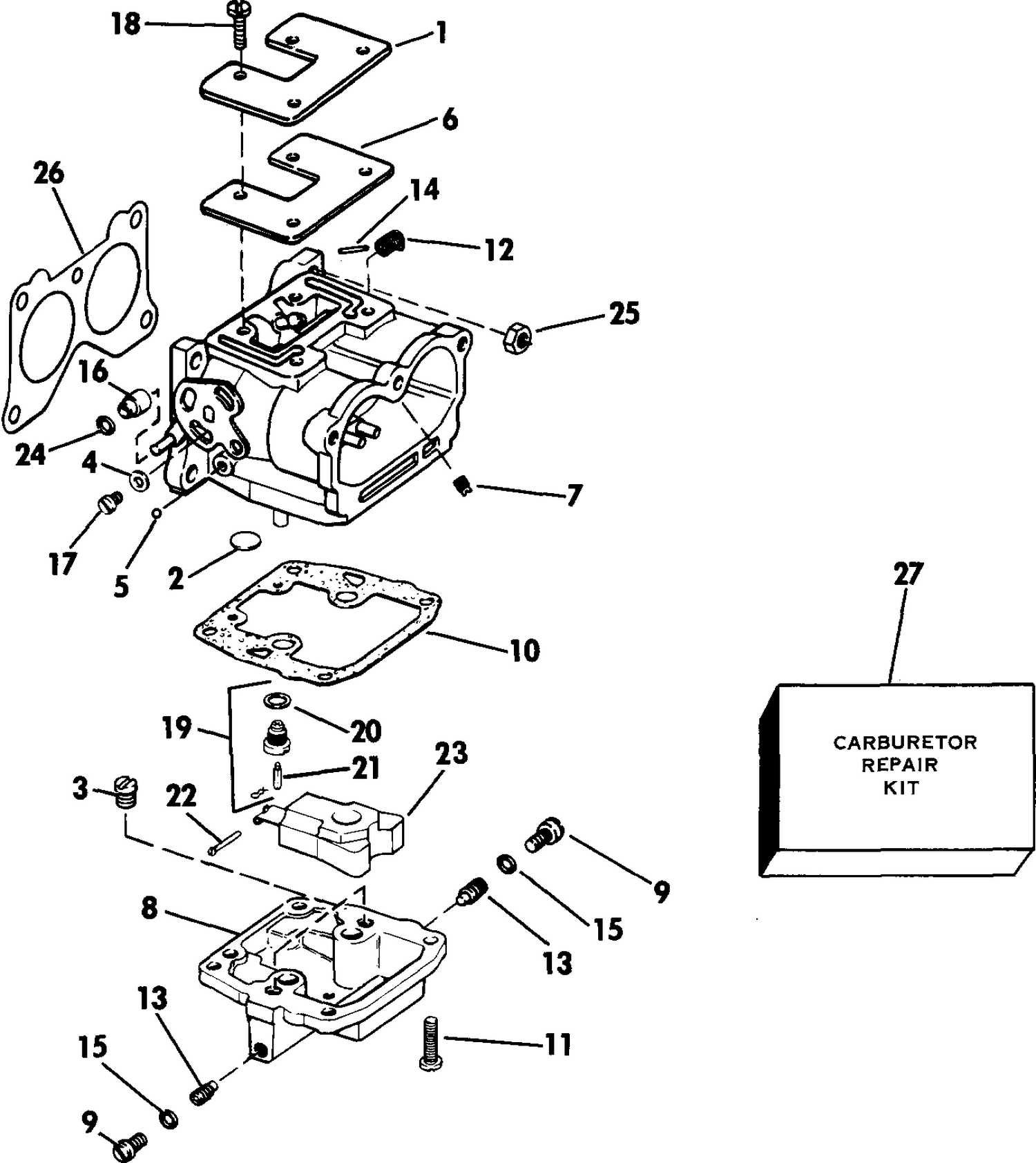

| Ref | Part Number | Description |
|---|
| 1 |
0334352 |
COVER, Idle channel This part replaces 0330132. |
| 6 |
0334353 |
GASKET, Cover This part replaces 0327931. |
| 8 |
0392375 |
FLOAT CHAMBER ASSY. |
| 8 |
0392376 |
FLOAT CHAMBER ASSY. |
| 9 |
0330131 |
CLAMP, Fuel filter |
| 10 |
0338884 |
GASKET, Float bowl This part replaces 0323784. |
| 11 |
0319682 |
VIS, capteur vers plaque |
| 13 |
0317021 |
ORIFICE PLUG (57C) |
| 16 |
0330130 |
ROLLER |
| 18 |
0330133 |
SCREW, Breaker plate |
| 21 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 23 |
0383437 |
FLOAT ASSEMBLY |
| 24 |
0308776 |
O-RING |
| 25 |
0316291 |
NUT |
| 26 |
0327707 |
GASKET, Air silencer |
| 0394228 |
0394228 |
CARB ASSY., Upper |
| 0394229 |
0394229 |
CARB ASSY., Lower |
