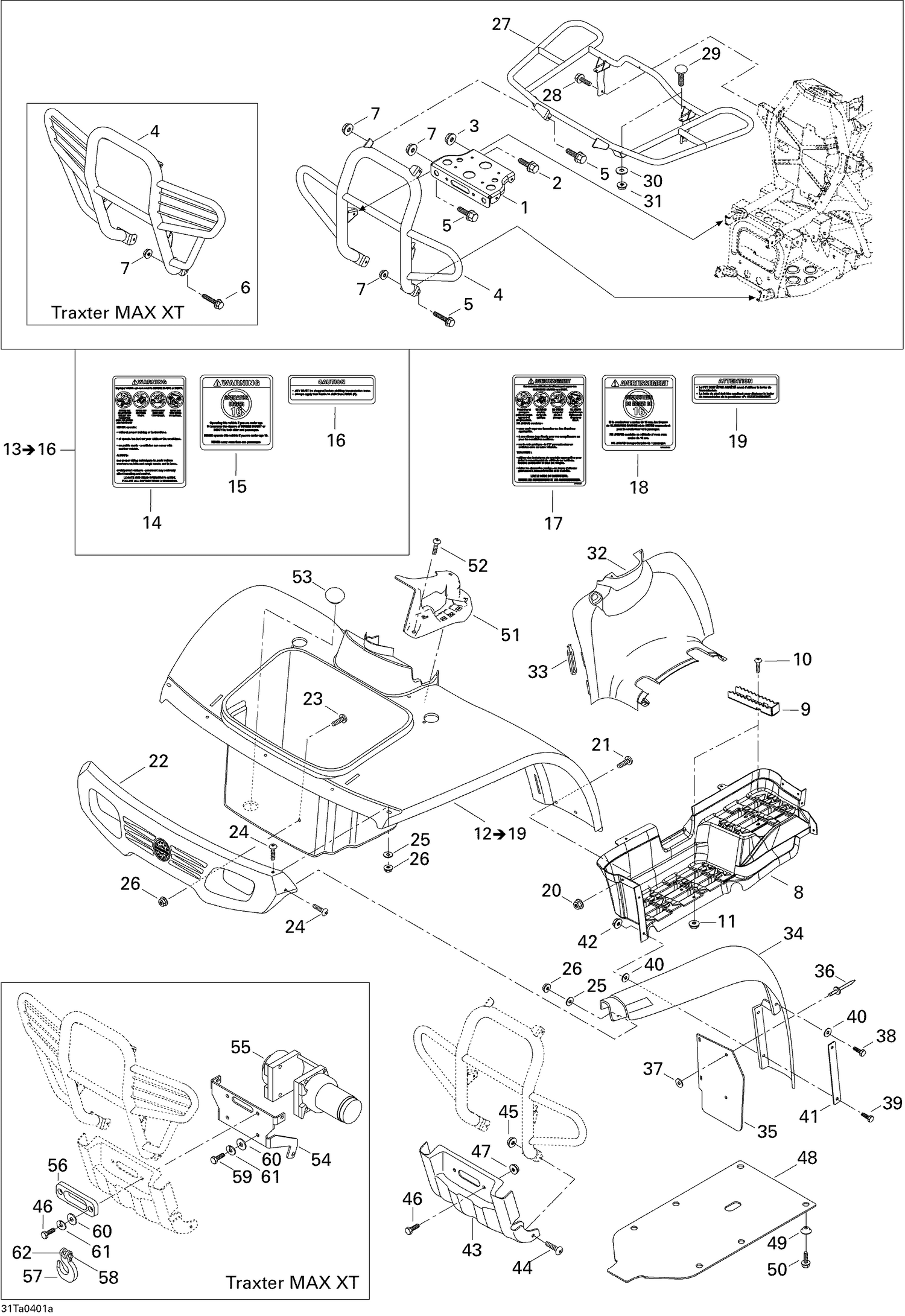

| Ref | Part Number | Description |
|---|
| Not |
Available |
As Spare Part - Front fender ass'y (Viper red) |
| 1 |
705200196 |
WINCH LATCH, BLACK - Call your local BRP dealership |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8 |
705000671 |
RH footrest cover |
| 9 |
705001083 |
Footrest, Black |
| 10 |
207662554 |
Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 21 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 22 |
705000708 |
Front Fascia, Slate Gray |
| 23 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 24 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 25 |
224060201 |
Flat Washer |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 27 |
703500264 |
Front Luggage Rack, Black |
| 28 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 29 |
250000035 |
TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 30 |
224060201 |
Flat Washer |
| 31 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 32 |
705000710 |
Tank Cover, Slate Gray |
| 33 |
570023800 |
Windshield Latch |
| 34 |
705000711 |
LH Front Mudguard |
| 35 |
705000755 |
Mudguard Extension |
| 36 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 37 |
234082410 |
Flat Washer 8 mm |
| 38 |
207162044 |
Hex. Screw M6 X 20 |
| 39 |
207162544 |
Hex. Screw M6 X 25 |
| 40 |
224060201 |
Flat Washer |
| 41 |
705000754 |
PLATE - Call your local BRP dealership |
| 42 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 43 |
705000713 |
PROTECTOR PLATE, SLATE GRAY - Call your local BRP dealership |
| 44 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 45 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 48 |
705000675 |
Skid Plate |
| 49 |
705200533 |
CUP - Call your local BRP dealership |
| 50 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 51 |
705000081 |
Lever Indicator |
| 52 |
414745900 |
Tuflock Phillips Plastic Screw |
| 53 |
570041600 |
Rubber Cover |
| 705000672 |
Cache |
Repose-Pied GA 705000672 |
| 705000712 |
Garde-Boue |
Avant DR 705000712 |
| 705000712 |
RH |
Front Mudguard 705000712 |
