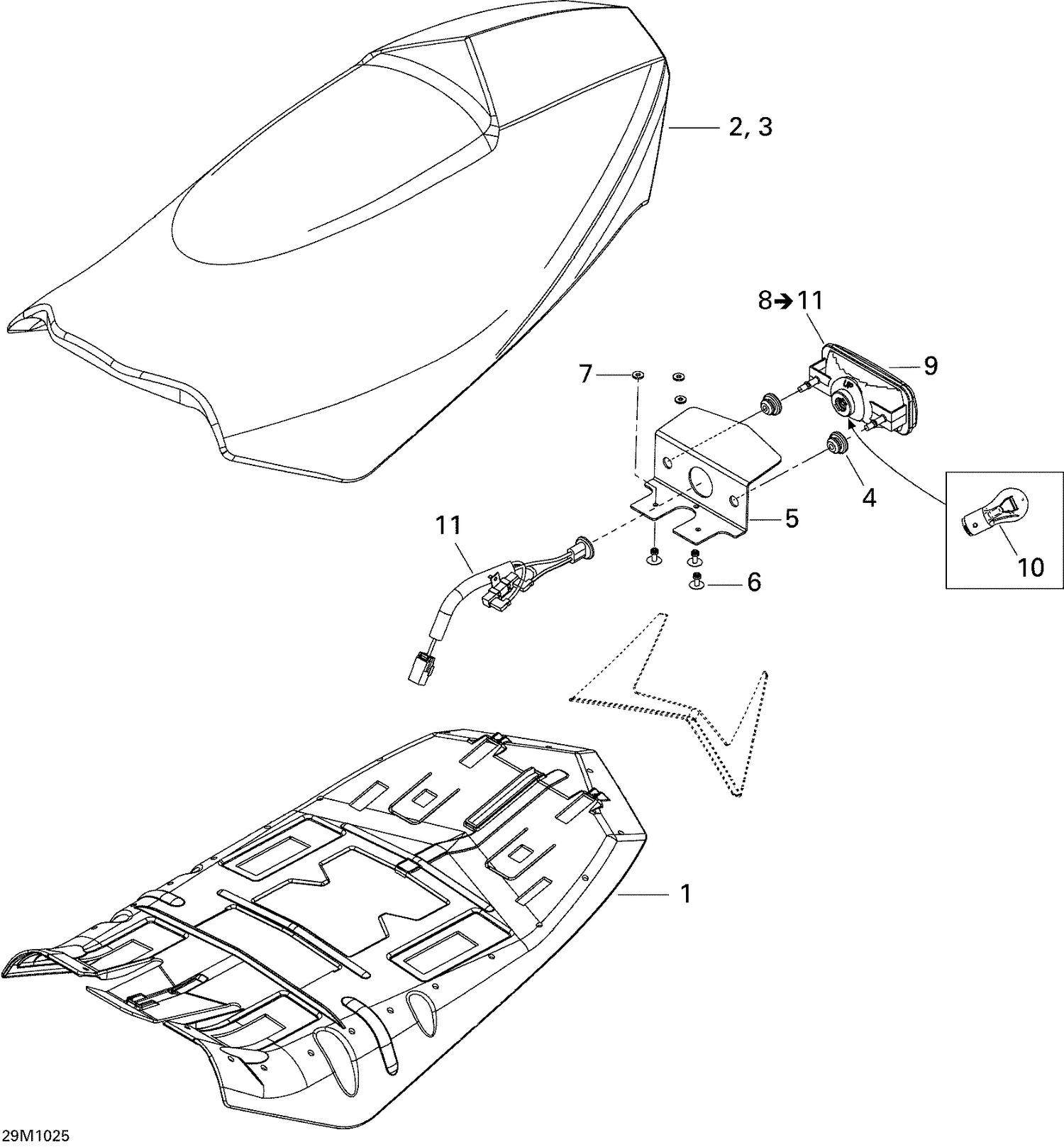

09- Seat
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510005407 | Seat Base This part replaces 510005272. |
| 2 | 510005122 | SEAT FOAM - Call your local BRP dealership |
| 3 | 510005123 | SEAT COVER - Call your local BRP dealership |
| 4 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 5 | 520000890 | SUPPORT - Call your local BRP dealership |
| 6 | 293150104 | Pop Rivet 3/16" |
| 7 | 517297900 | WASHER - Call your local BRP dealership |
| 9 | 710000652 | Rear Lens Box |
| 10 | 710000653 | BULB - Call your local BRP dealership |
