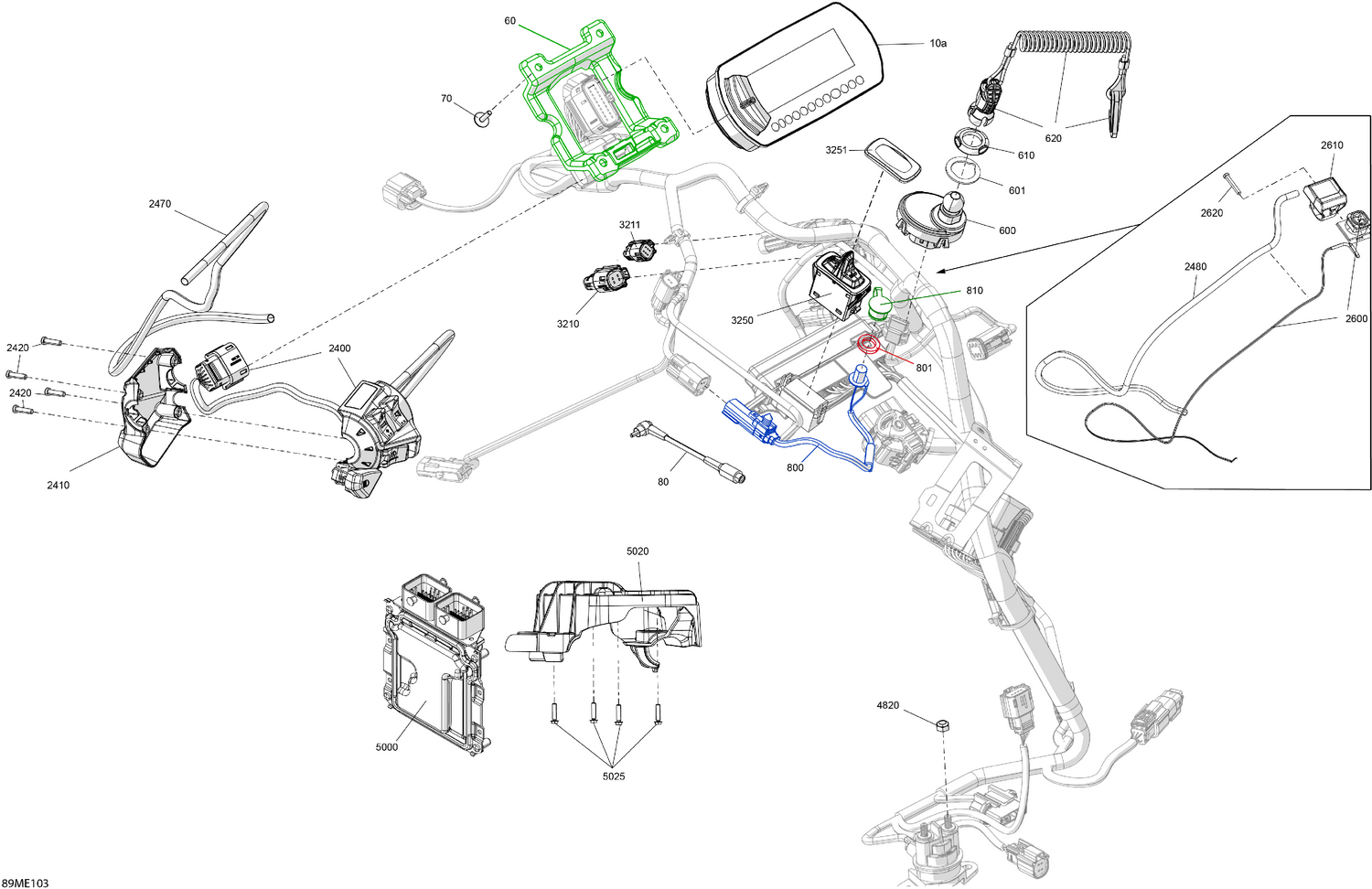

08- Electric - Upper Section
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 60 | 515178450 | Housing |
| 70 | 250000725 | Screw M4 X 16 |
| 80 | 515175851 | Extension |
| 600 | 710008832 | Terminal DESS CAN |
| 601 | 513034206 | Self Adhesive Weather Strip |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 800 | 515178645 | Heated Visor Wiring Harness |
| 801 | 513034208 | Self Adhesive Weather Strip |
| 810 | 572103300 | Cap |
| 2400 | 515178102 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3211 | 515178202 | Coil Connector |
| 3250 | 515178501 | Rocket Switch |
| 3251 | 515179778 | Boot |
| 4820 | 232561434 | Elastic Stop Nut M6 |
| 5000 | 420464172 | Vehicle Control Unit |
| 5020 | 512061397 | Module Support |
