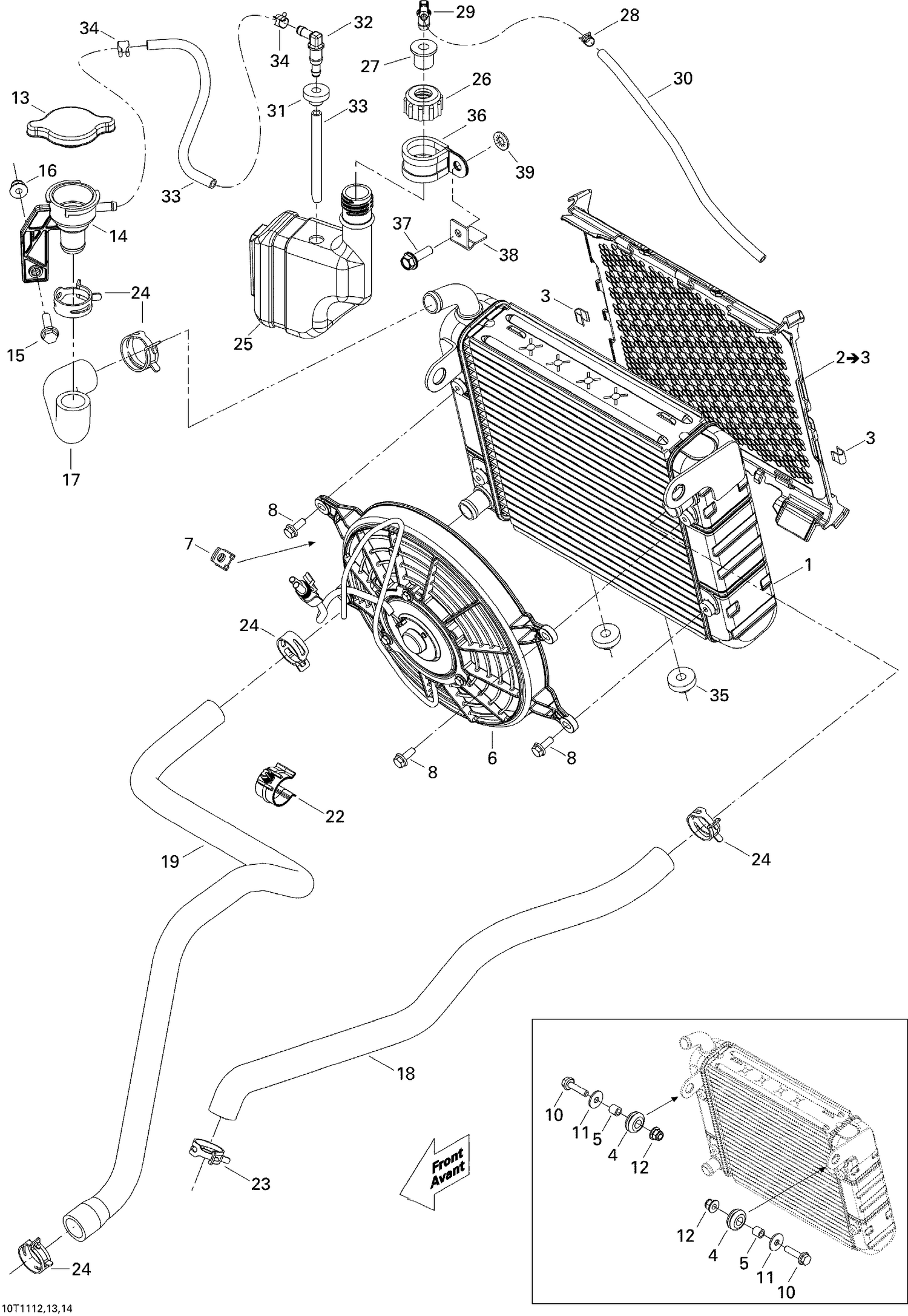

01- Cooling System
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709200411 | RADIATOR - Call your local BRP dealership This part replaces 709200306. |
| 3 | 414479100 | Clip |
| 4 | 709000582 | Grommet This part replaces 293720053. |
| 5 | 293900105 | Bushing This part replaces 293900045. |
| 6 | 709200371 | Fan Ass'y |
| 7 | 293650256 | Clamp This part replaces 705600459. |
| 8 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 10 | 207662544 | Hex. Flange Screw M6 X 25 |
| 11 | 250200082 | Flat Washer This part replaces 391302000. |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 709200207 | Radiator Pressure Cap |
| 14 | 709200179 | Filler Neck |
| 15 | 207662544 | Hex. Flange Screw M6 X 25 |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 709200180 | FILLER NECK HOSE - Call your local BRP dealership |
| 18 | 709200182 | INLET HOSE - Call your local BRP dealership |
| 19 | 709200258 | OUTLET HOSE - Call your local BRP dealership |
| 22 | 275500590 | Retainer |
| 23 | 293650108 | Norma Spring Clamp |
| 24 | 293650109 | Norma Spring Clamp |
| 25 | 709200099 | COOLANT TANK - Call your local BRP dealership |
| 26 | 709200586 | Cap This part replaces 548872589. |
| 27 | 293830136 | Grommet |
| 28 | 414554800 | Spring Clamp |
| 29 | 414580700 | Male Connector |
| 30 | 219704410 | Polyurethane Hose 10000Mm Long |
| 31 | 709200285 | Grommet |
| 32 | 414580600 | Elbow Male Connector |
| 33 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 34 | 414554800 | Spring Clamp |
| 35 | 709200285 | Grommet |
| 36 | 709200036 | Hose Anchor |
| 37 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 38 | 709200209 | BRACKET - Call your local BRP dealership |
