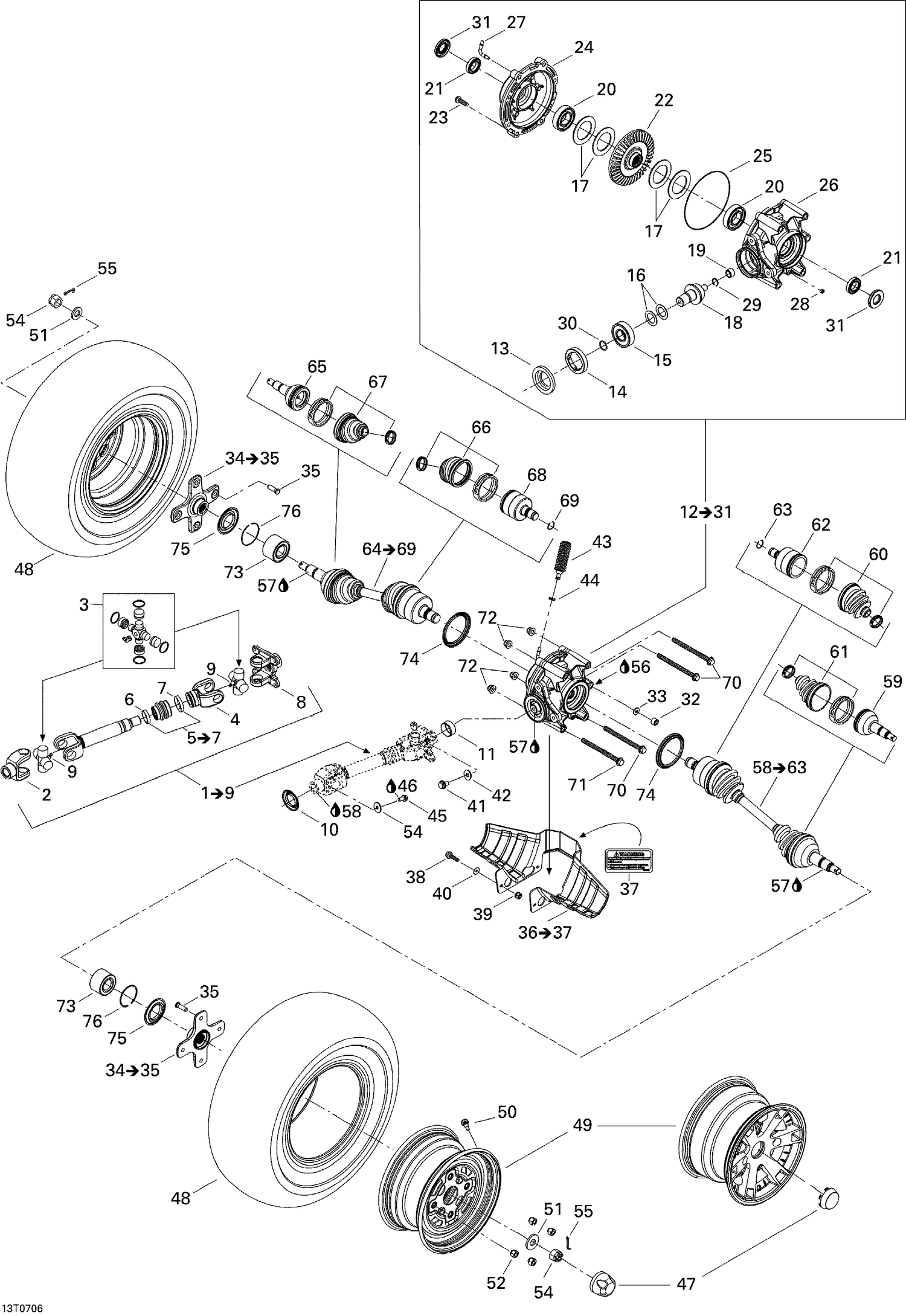

| Ref | Part Number | Description |
|---|
| 2 |
715900101 |
Fixe Yoke This part replaces 705500371. |
| 3 |
715900326 |
Universal Joint This part replaces 703000022. |
| 4 |
705500528 |
SLIDING JOINT - Call your local BRP dealership |
| 6 |
705400148 |
Collar |
| 7 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 8 |
705500526 |
DISC JOINT - Call your local BRP dealership |
| 9 |
705500841 |
GREASE FITTING - Call your local BRP dealership |
| 10 |
705501123 |
Protector This part replaces 705500678. |
| 11 |
705400036 |
Wear Ring |
| 13 |
705401481 |
Oil Seal This part replaces 705400027. |
| 14 |
705502059 |
Nut This part replaces 705500842. |
| 15 |
705500260 |
Ball Bearing |
| 16 |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 17 |
705502060 |
Differential Shim 0.02 mm This part replaces 703500548. |
| 18 |
705500268 |
GEAR, 10 TEETH - Call your local BRP dealership |
| 19 |
705500261 |
Needle Bearing |
| 20 |
705502737 |
Ball Bearing This part replaces 705500749. |
| 21 |
705500750 |
BALL BEARING - Call your local BRP dealership |
| 22 |
705500775 |
GEAR, 36 TOOTH - Call your local BRP dealership |
| 23 |
705401601 |
Screw This part replaces 705500264. |
| 24 |
705500697 |
REAR DIFFERENTIAL COVER - Call your local BRP dealership |
| 25 |
705500265 |
Seal |
| 26 |
705500843 |
Rear Cover |
| 27 |
705500893 |
VENT VALVE - Call your local BRP dealership This part replaces 705500262. |
| 28 |
705500894 |
Drain Plug This part replaces 705500245. |
| 29 |
705500269 |
RETAINING RING - Call your local BRP dealership |
| 30 |
705500267 |
O-Ring |
| 31 |
705501996 |
Oil Seal This part replaces 705500751. |
| 32 |
705500504 |
Fill Level Plug |
| 33 |
705500506 |
Copper Washer |
| 35 |
250300055 |
Wheel Stud M10 X 1.25 This part replaces 250300020. |
| 37 |
704900766 |
WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership This part replaces 704900009. |
| 38 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 39 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 40 |
250200082 |
Flat Washer This part replaces 391302000. |
| 41 |
250000060 |
Flange Screw M10 X 16, Scotch Grip |
| 42 |
250200014 |
Flat Washer M10 |
| 43 |
705400552 |
Rubber Bellow |
| 44 |
293650042 |
Oetiker Clamp |
| 45 |
250001044 |
Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000247. |
| 46 |
293800005 |
Loctite 271, 10 ml |
| 50 |
705400193 |
Rim Valve With Cap |
| 51 |
250200171 |
Conical Spring Washer M18 This part replaces 250200049. |
| 53 |
250200014 |
Flat Washer M10 |
| 54 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 55 |
250400036 |
Cotter Pin This part replaces 250400016. |
| 56 |
779221 |
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011. |
| 57 |
293550010 |
Synthetic Grease, 400 G |
| 59 |
705500728 |
CV JOINT - Call your local BRP dealership |
| 60 |
705500855 |
Boot Kit |
| 61 |
705500855 |
Boot Kit |
| 62 |
705500729 |
PLUNGING JOINT - Call your local BRP dealership |
| 63 |
705500845 |
CIRCLIP - Call your local BRP dealership |
| 65 |
705500728 |
CV JOINT - Call your local BRP dealership |
| 66 |
705500855 |
Boot Kit |
| 67 |
705500855 |
Boot Kit |
| 68 |
705500729 |
PLUNGING JOINT - Call your local BRP dealership |
| 69 |
705500845 |
CIRCLIP - Call your local BRP dealership |
| 70 |
230603046 |
Hex. Flange Screw, M10 X 130 |
| 71 |
230603546 |
Hex. Flange Screw M10 X 135 |
| 72 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 73 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 74 |
705501124 |
Wear Ring This part replaces 705500725. |
| 75 |
705501121 |
Wear Sleeve This part replaces 705500564. |
