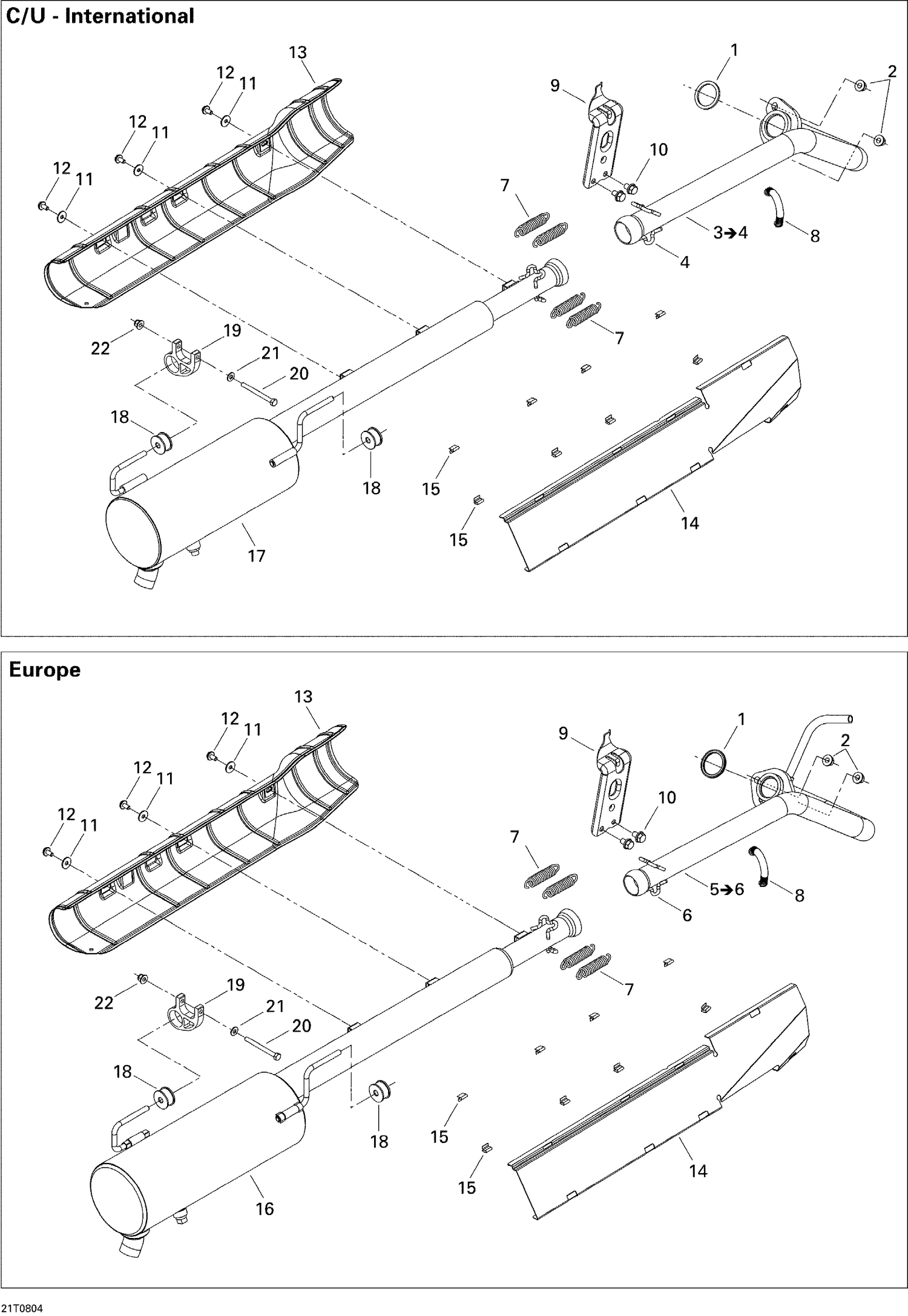

| Ref | Part Number | Description |
|---|
| 1 |
707600317 |
Gasket |
| 2 |
233081416 |
Hex. Flange Nut M8 |
| 4 |
Not |
Available As Spare Part - Hook |
| 6 |
Not |
Available As Spare Part - Hook |
| 7 |
415107100 |
Spring |
| 8 |
707600207 |
SPRING - Call your local BRP dealership |
| 9 |
707600194 |
Muffler Support |
| 10 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 11 |
250200082 |
Flat Washer This part replaces 391302000. |
| 12 |
250000073 |
HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership |
| 13 |
707600255 |
HEAT SHIELD - Call your local BRP dealership |
| 14 |
707600340 |
HEAT DEFLECTOR - Call your local BRP dealership |
| 15 |
517306751 |
Clip This part replaces 517302674. |
| 17 |
707600396 |
MUFFLER - Call your local BRP dealership |
| 18 |
707600702 |
Anti-Vibration Rubber This part replaces 707600012. |
| 19 |
707600411 |
MUFFLER BRAKET - Call your local BRP dealership |
| 20 |
207066544 |
Hex. Screw M6 X 65 |
| 21 |
224061121 |
Flat Washer |
