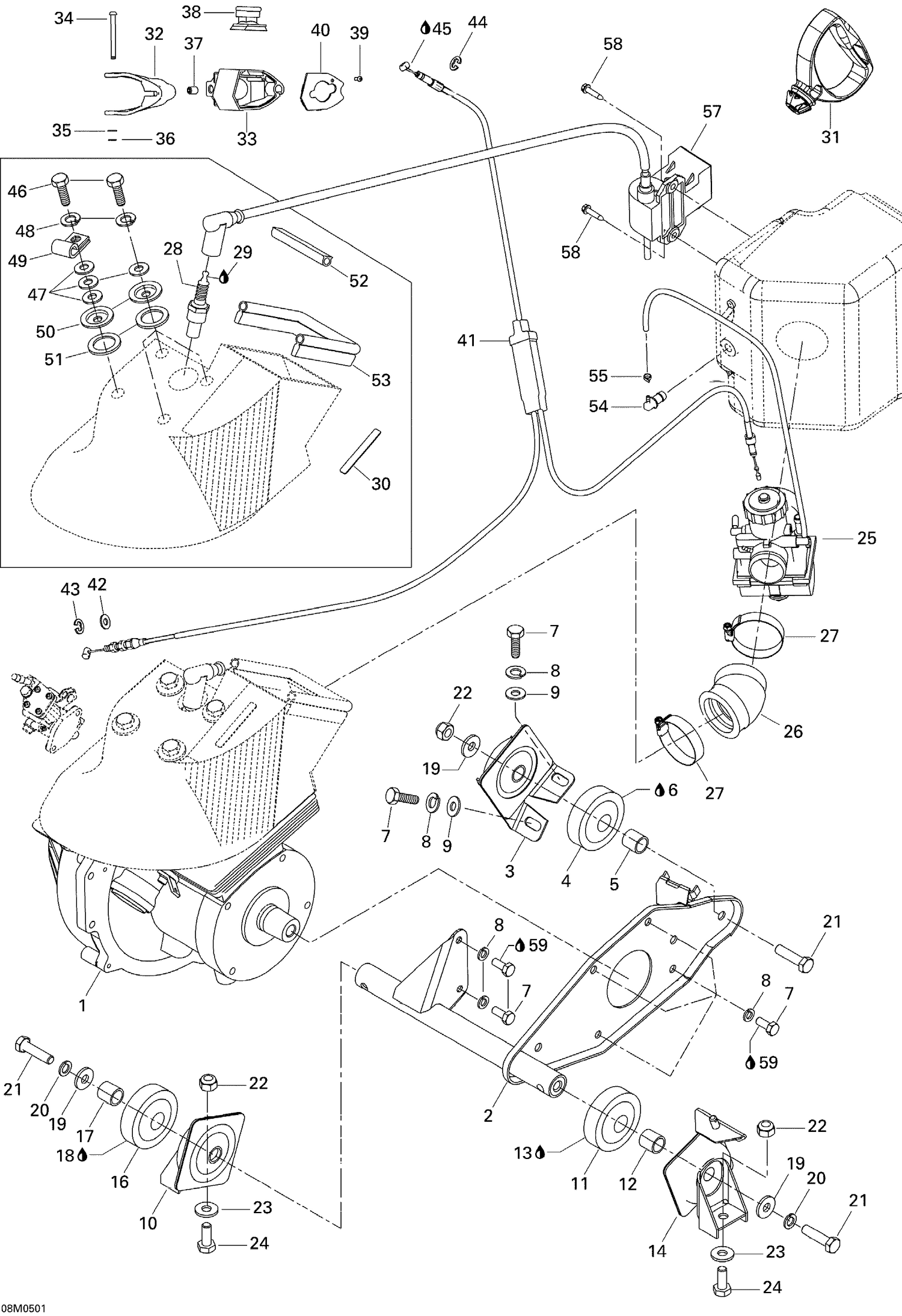

01- Engine And Engine Support
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 400206003 | Engine 277 Ass'y |
| 2 | 512059034 | Engine Support Paint |
| 3 | 512050400 | WELDED SUPPORT - Call your local BRP dealership |
| 5 | 517167100 | BUSHING - Call your local BRP dealership |
| 6 | 293550030 | Grease, Super Lube |
| 7 | 207182044 | Hex. Screw M8 X 20 |
| 8 | 234181401 | Lock Washer 8 mm |
| 9 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 10 | 512048300 | RH Welded Support |
| 12 | 517167100 | BUSHING - Call your local BRP dealership |
| 13 | 293550030 | Grease, Super Lube |
| 14 | 512048400 | LH Support |
| 15 | 414822300 | Clevis Pin |
| 17 | 517167100 | BUSHING - Call your local BRP dealership |
| 18 | 293550030 | Grease, Super Lube |
| 19 | 506063100 | Washer |
| 20 | 234101402 | Lock Washer M10 |
| 21 | 207104044 | HEX. SCREW M10 X 40 - Call your local BRP dealership |
| 22 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 23 | 732900051 | WASHER - Call your local BRP dealership |
| 24 | 207102544 | Hex. Screw M10 X 25 |
| 25 | 403138753 | Carburetor Vm-34 |
| 26 | 570025400 | Rubber Flanged |
| 27 | 408801900 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 28 | 219703120 | Spark Plug NGK BR9ES This part replaces 414961100. |
| 29 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 30 | 516000986 | Spark Plug Decal |
| 31 | 572084400 | Starter Grip |
| 32 | 512060214 | Handle Ass'y This part replaces 512059623. |
| 33 | 512060603 | Throttle Housing This part replaces 512059334. |
| 34 | 414438700 | Lever Pin |
| 35 | 234051600 | Flat Washer M5, Stainless |
| 36 | 414439000 | Circlip |
| 37 | 414440800 | Socket Set Screw M8 X 10 |
| 38 | 515175410 | Kill Switch |
| 39 | 250000022 | SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 40 | 512060390 | Plate This part replaces 512059507. |
| 41 | 512059614 | THROTTLE CABLE - Call your local BRP dealership |
| 42 | 234081100 | Flat Washer 8 mm, Nylon |
| 43 | 414753500 | Circlip |
| 44 | 293370020 | Circlip |
| 45 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 46 | 207182044 | Hex. Screw M8 X 20 |
| 47 | 234081410 | Flat Washer 8 mm |
| 48 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 49 | 414176000 | Open Clamp |
| 50 | 420827140 | COWL COVER - Call your local BRP dealership |
| 51 | 420960860 | RUBBER WASHER - Call your local BRP dealership |
| 52 | 219704371 | Neoprene Seal 3000 mm Long |
| 53 | 219704365 | Was 293200017 Neoprene Seal |
| 54 | 414814100 | Male Connector |
| 55 | 293750001 | Tie Wrap 94 mm |
| 56 | 779123 | OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200. |
| 57 | 512060006 | Calibrated Module This part replaces 515175459. |
| 58 | 365901400 | Screw-hex.taping 12 |
