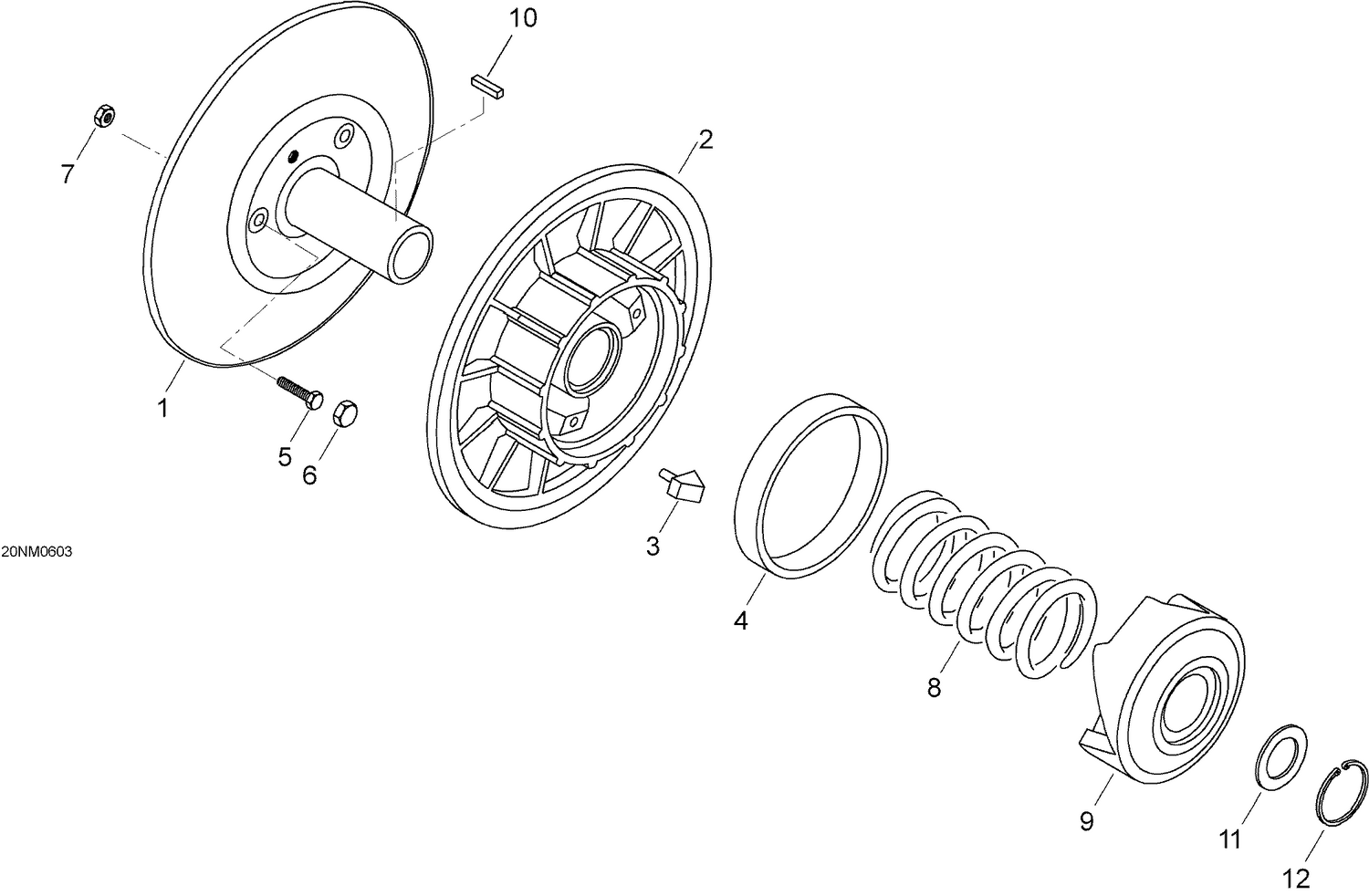

05- Driven Pulley
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417126310 | Fixed flange |
| 3 | 417212500 | SHOE CAM SLIDER - Call your local BRP dealership |
| 4 | 140005 | Bushing |
| 5 | 417118900 | HEX. SCREW - Call your local BRP dealership |
| 6 | 417119600 | PLASTIC CAP - Call your local BRP dealership |
| 7 | 417119000 | NUT - Call your local BRP dealership |
| 8 | 417119100 | RELEASE SPRING - Call your local BRP dealership |
| 9 | 140049 | Cam 40/35 |
| 10 | 417119400 | KEY - Call your local BRP dealership |
| 11 | 417114900 | Shim 0.05'' |
| 11 | 417117000 | SHIM - Call your local BRP dealership |
