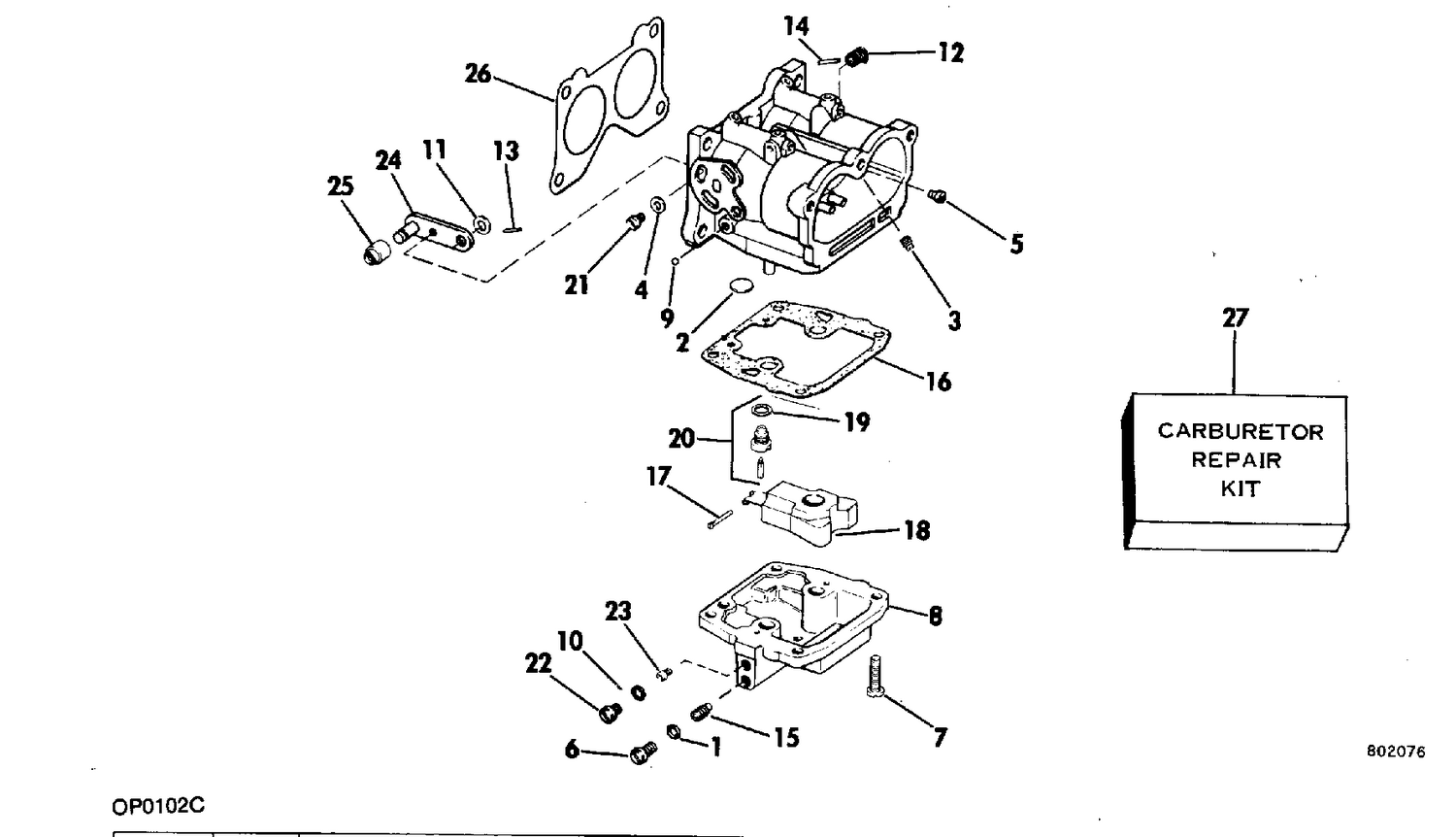

| Ref | Part Number | Description |
|---|
| 6 |
0330131 |
CLAMP, Fuel filter This part replaces 0323783. |
| 8 |
0391755 |
FLOAT CHAMBER ASSY |
| 15 |
0317330 |
ORIFICE PLUG |
| 15 |
0317607 |
ORIFICE PLUG |
| 15 |
0321449 |
ORIFICE PLUG 175 ONLY, No. 60c |
| 16 |
0338884 |
GASKET, Float bowl This part replaces 0323784. |
| 18 |
0383437 |
FLOAT ASSEMBLY |
| 22 |
0317501 |
SCREW PLUG, Orifice |
| 26 |
0327707 |
GASKET, Air silencer This part replaces 0326118. |
| 0390401 |
0390401 |
CARB ASSY., Lower 150 only |
| 0390402 |
0390402 |
CARB ASSY., Middle 150 only |
| 0390404 |
0390404 |
CARB ASSY., Lower 175 only |
| 0390405 |
0390405 |
CARB ASSY., Middle 175 only |
| 0390407 |
0390407 |
CARB ASSY.,Lower 200 only |
| 0390408 |
0390408 |
CARB ASSY.,Middle 200 only |
| 0390410 |
0390410 |
CARB ASSY., Lower 235 only |
| 0390411 |
0390411 |
CARB ASSY., Middle 235 only |
