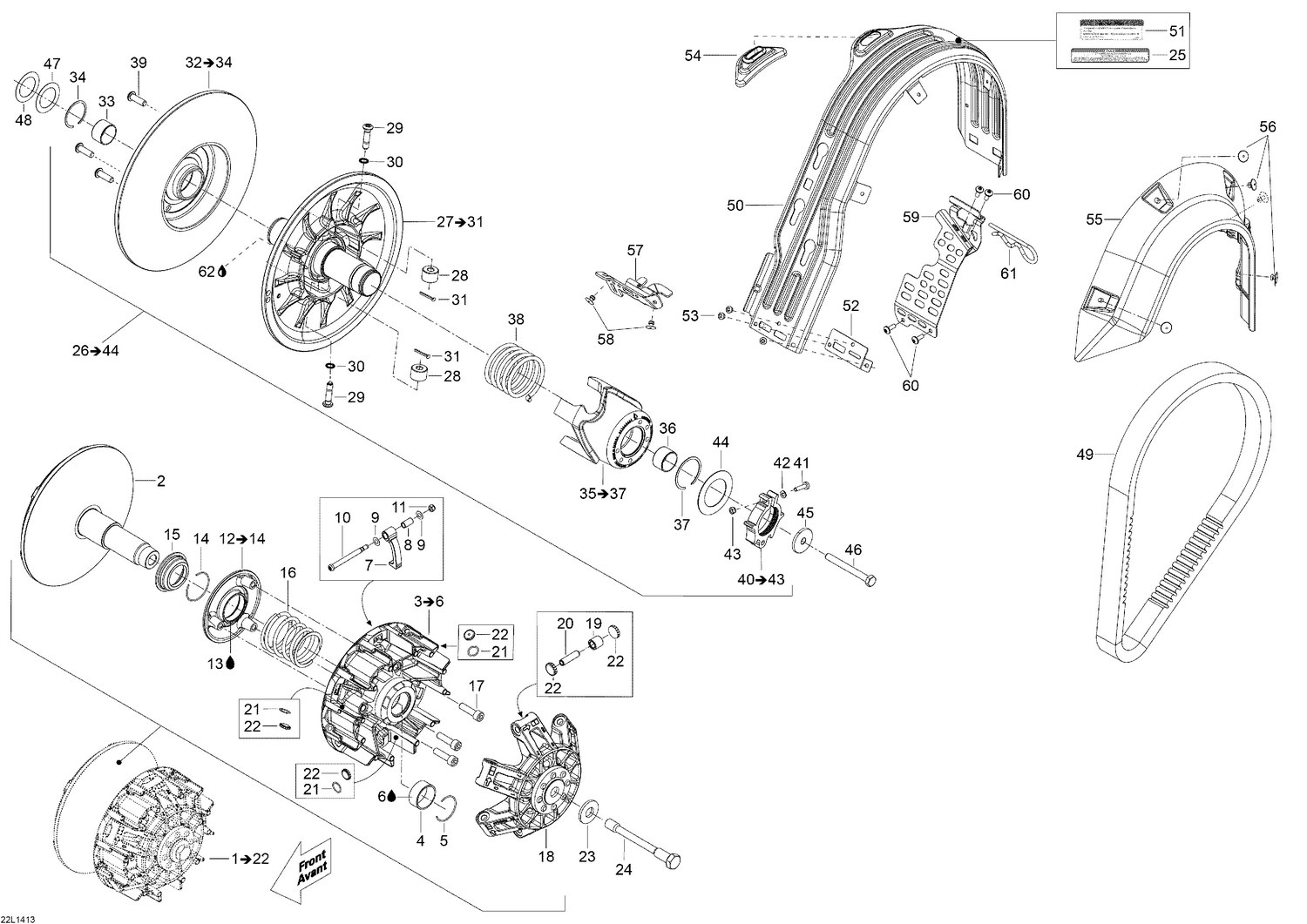

05- Pulley System
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417223534 | Fixed Flange Ass'y |
| 5 | 293370065 | Circlip |
| 6 | 619600012 | Loctite 609, 50 ml |
| 7 | 417223509 | RAMP 712 - Call your local BRP dealership |
| 9 | 417223255 | Thrust Washer |
| 10 | 417223694 | Axle Ramp |
| 11 | 232551414 | Elastic Stop Nut M5 |
| 13 | 619600012 | Loctite 609, 50 ml |
| 14 | 293370063 | CIRCLIP - Call your local BRP dealership |
| 15 | 417223155 | SPRING SEAT - Call your local BRP dealership |
| 16 | 417223315 | Spring (Red / Yellow, 356-756N) |
| 17 | 250000473 | SCREW-SOCKET HEAD S.GRIP - Call your local BRP dealership |
| 18 | 417223778 | GOVERNOR CUP ASS'Y - Call your local BRP dealership |
| 19 | 417223767 | Roller |
| 20 | 417223257 | Roller Axle |
| 21 | 293300185 | O-Ring This part replaces 293300169. |
| 22 | 417223919 | Slider Shoe |
| 23 | 250200144 | Conical Spring Washer M14 |
| 24 | 417300407 | DRIVE BOLT PULLEY - Call your local BRP dealership |
| 25 | 516005503 | Decal, Notice, Drive Pulley Bolt |
| 28 | 417127016 | Roller |
| 29 | 417127294 | Stud |
| 30 | 250200009 | Lock Washer 8mm |
| 31 | 250400063 | Spring Pin M3 x 30 |
| 33 | 417127318 | Bushing |
| 34 | 293370049 | Spacer (1.91/2.21mm) |
| 36 | 417127318 | Bushing |
| 37 | 293370049 | Spacer (1.91/2.21mm) |
| 38 | 417127344 | Spring (Pink / Pink, 204-367N) |
| 39 | 250000283 | Torx Screw M8 x 25, Scotch Grip |
| 41 | 205052544 | Socket Head Screw M10 x 1.5 |
| 42 | 234051410 | Flat Washer M5 |
| 43 | 232551414 | Elastic Stop Nut M5 |
| 44 | 417127155 | Washer |
| 45 | 517302322 | Strength Washer |
| 46 | 207287544 | Hex. Cap Screw M8 x 75 |
| 49 | 417300585 | Drive Belt This part replaces 417300127. |
| 50 | 417300382 | Belt Guard |
| 51 | 516004649 | Security Label |
| 52 | 417300380 | Reinforcement |
| 53 | 390909200 | Avex Rivet |
| 54 | 417300381 | Guide |
| 55 | 417300356 | Side Protector |
| 56 | 293150103 | Pop Rivet 3/16 |
| 57 | 417300360 | FRONT BELT GUARD BRACKET - Call your local BRP dealership |
| 58 | 293150104 | Pop Rivet 3/16 |
| 59 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership |
| 60 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 61 | 114045200 | Hair Pin |
