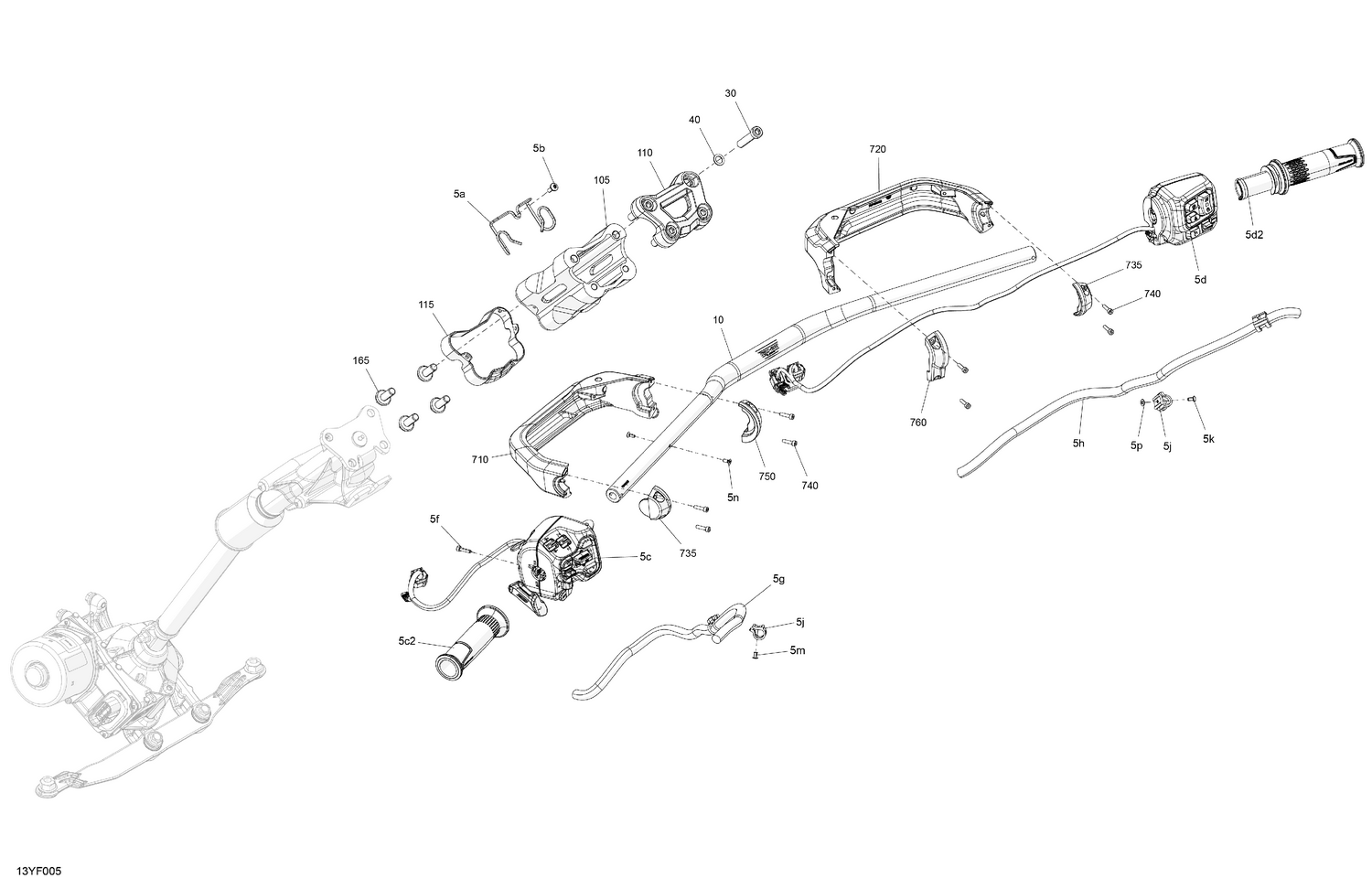

03- Mechanic - Handlebar
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 5a | 709402446 | Wiring Harness Support |
| 5b | 250000742 | Torx Screw M5 X 14 |
| 5c2 | 709402804 | LH Handlebar Grip |
| 5d2 | 709402766 | RH Handlebar Grip |
| 5f | 250000494 | Socket Screw, M4 X 16 Scotch Grip |
| 5g | 710004231 | Braided Sleeve |
| 5h | 710004231 | Braided Sleeve |
| 5j | 709401804 | Wire Guide |
| 5k | 250001349 | Screw Flat Ctsk Torx M4 X 10 |
| 5m | 390403000 | Pop Rivet 5/32 |
| 5n | 250001349 | Screw Flat Ctsk Torx M4 X 10 |
| 10 | 709403159 | Handlebar |
| 30 | 250000997 | Thin Socket Screw, Scotch Grip, M10 |
| 40 | 250200105 | Stainless Flat Washer, 10 mm |
| 105 | 709402835 | Handlebar Riser Block |
| 110 | 709401904 | Black, Central Handle Clamp |
| 115 | 709403079 | Steering Column Trim |
| 165 | 207502546 | Hex. Flange Screw M10 X 25 |
| 710 | 709403124 | LH Deflector Support |
| 720 | 709403126 | RH Deflector Support |
| 735 | 709403120 | Ext Mounting Clamp |
| 740 | 250001011 | Black, Socket Head Screw M4 X 16 |
| 750 | 709403121 | LH Mounting Clamp |
| 760 | 709403122 | RH Mounting Clamp |
