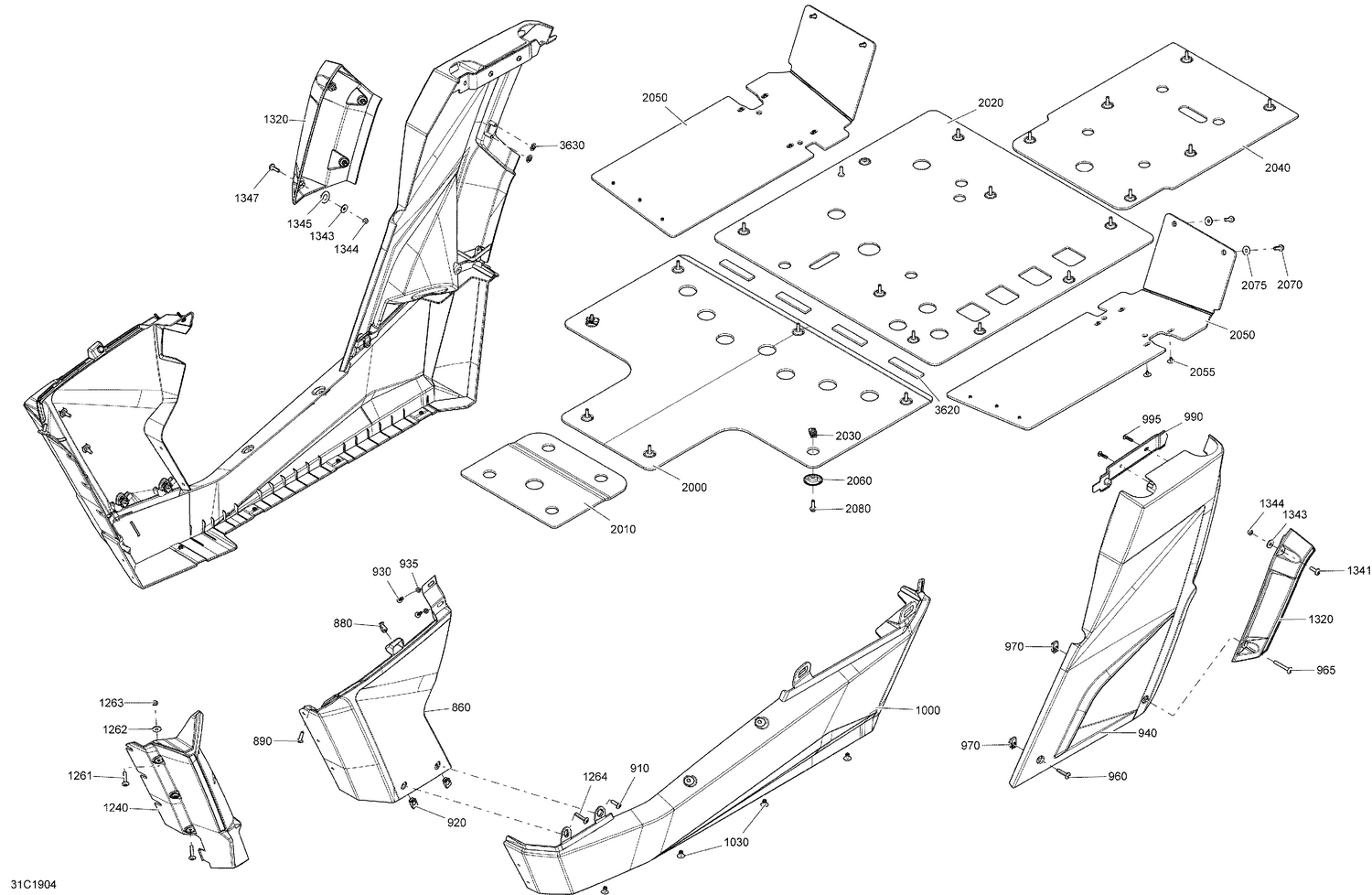

| Ref | Part Number | Description |
|---|
| 860 |
705011644 |
Timeless Black, LH Front Panel |
| 860 |
705011645 |
Timeless Black, RH Front Panel |
| 880 |
293150230 |
Tuflok Plastic Rivet |
| 890 |
250000722 |
Torx Screw M6 X 20 |
| 900 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 910 |
250000722 |
Torx Screw M6 X 20 |
| 920 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 930 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 935 |
234051410 |
Flat Washer M5 |
| 940 |
705011728 |
PANEL_BODY REAR L B-302 - Call your local BRP dealership |
| 940 |
705011729 |
Timeless Black, RH Rear Panel |
| 960 |
250000843 |
Torx Truss Screw M6 X 30 |
| 965 |
250000748 |
Torx Screw M6 X 45 |
| 970 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 990 |
705007916 |
Support Skid Plate |
| 995 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 1000 |
705006993 |
LH Middle Side Pannel |
| 1000 |
705006994 |
RH Middle Side Pannel |
| 1030 |
293150104 |
Pop Rivet 3/16" |
| 1200 |
705008666 |
Black, LH Upper Front Mudguard |
| 1220 |
705008667 |
Black, RH Upper Front Mudguard |
| 1221 |
250000842 |
Stainless, Torx Screw M6 X 30 |
| 1222 |
234062670 |
Stainless Steel Flat Washer |
| 1223 |
232561434 |
Elastic Stop Nut M6 |
| 1240 |
705008668 |
Black, LH Lower Mudguard |
| 1240 |
705008669 |
Black, RH Lower Mudguard |
| 1261 |
250000842 |
Stainless, Torx Screw M6 X 30 |
| 1262 |
234062670 |
Stainless Steel Flat Washer |
| 1263 |
232561434 |
Elastic Stop Nut M6 |
| 1264 |
250000842 |
Stainless, Torx Screw M6 X 30 |
| 1320 |
705008670 |
Black, LH Rear Lower Mudguard |
| 1320 |
705008672 |
RH Rear Lower Black Mudguard |
| 1341 |
250000712 |
Torx Screw M6 X 20 |
| 1343 |
234062670 |
Stainless Steel Flat Washer |
| 1344 |
232561434 |
Elastic Stop Nut M6 |
| 1345 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 1347 |
250000712 |
Torx Screw M6 X 20 |
| 2000 |
705007055 |
Middle Protector Plate |
| 2020 |
705007056 |
Rear Protector Plate |
| 2040 |
705007227 |
Rear Protector Plate |
| 2050 |
705007038 |
RH Lateral Skid Plate |
| 2055 |
293150104 |
Pop Rivet 3/16" |
| 2060 |
705007171 |
Cup |
| 2070 |
210262050 |
Hexagonal Head Screw |
| 2075 |
250200097 |
Flat Washer |
| 2080 |
210262050 |
Hexagonal Head Screw |
| 3620 |
291001932 |
Pad |
