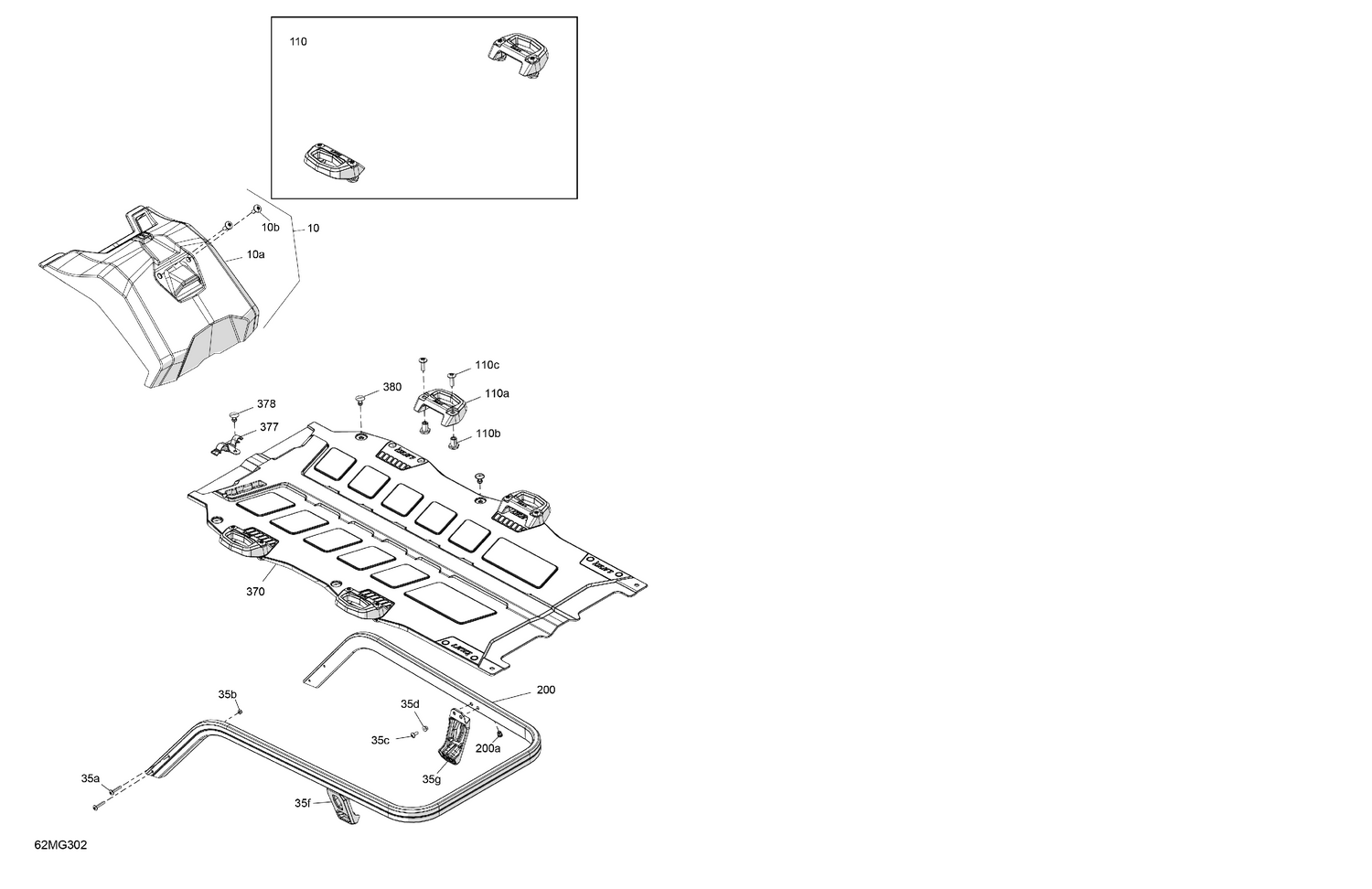

07- Body - Cargo
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 511001210 | Battery Cover |
| 10b | 250001005 | Torx Screw M6 X 16 |
| 35a | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 35b | 232561414 | Elastic Stop Nut M6 |
| 35c | 250000534 | Tork Screw M6 X 16 |
| 35d | 233161464 | Hex. Elastic Flange Nut M6 |
| 35f | 511001735 | LH Rack Support Molded |
| 110a | 860203055 | Linq Anchorage Kit |
| 110b | 511000822 | Threaded Insert |
| 110c | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 200a | 293450275 | Insert |
| 370 | 511001782 | Radiator Trim |
| 377 | 520001722 | Cap |
| 378 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 380 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
