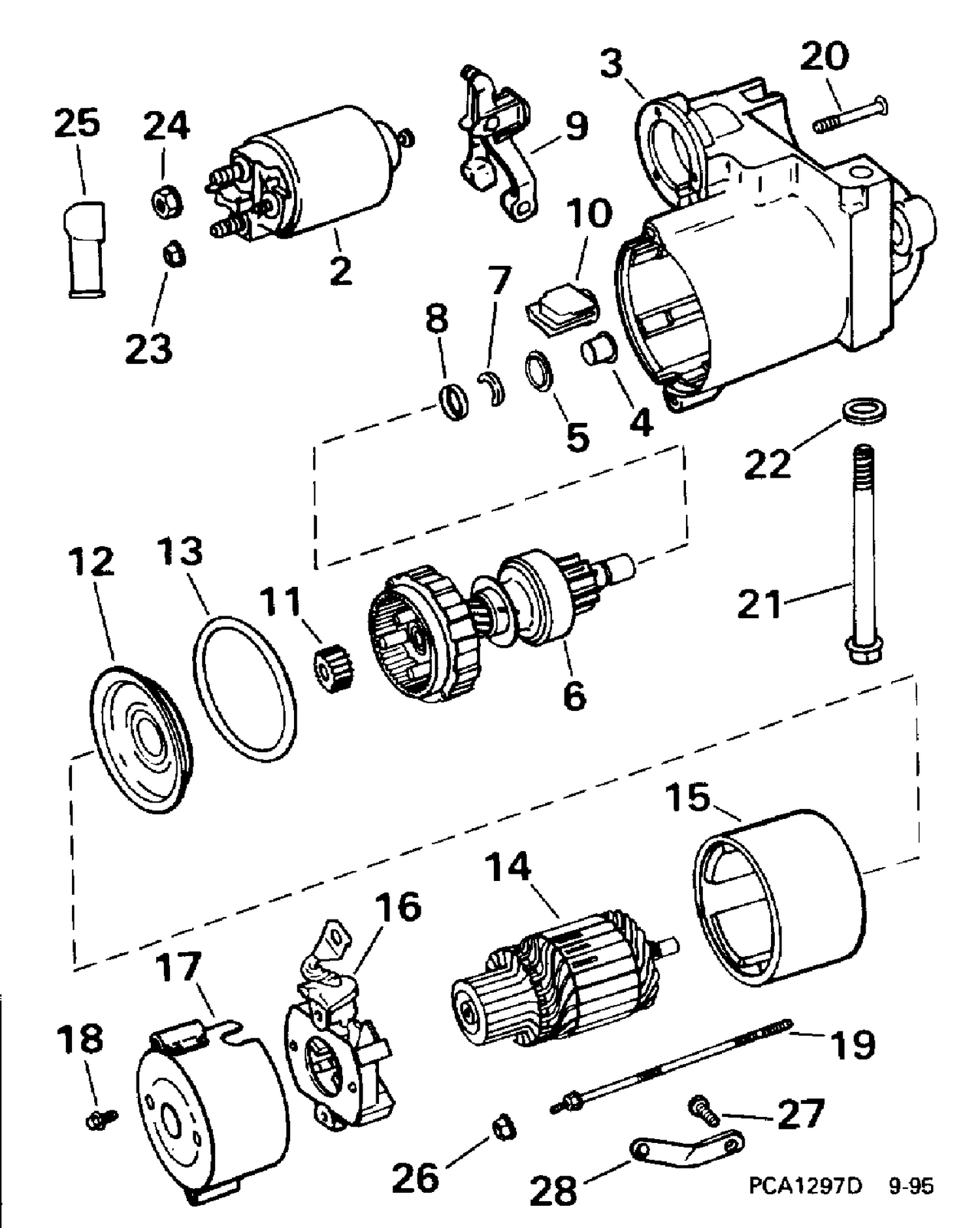

STARTER
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3858463 | Motor Ay This part replaces 3854750. |
| 2 | 3850216 | SOLENOID |
| 3 | HOUSING, | Drive |
| 4 | BEARING, | Drive |
| 5 | 3852724 | COLLAR THRUST |
| 6 | DRIVE | SHAFT ASSY. |
| 7 | 3852725 | COLLAR, Pinion stop |
| 8 | 3852726 | COLLAR STOP |
| 9 | LEVER | Ref: 10 PLUG |
| 11 | GEAR | Ref: 12 SHIELD |
| 13 | 3855893 | GASKET |
| 14 | ARMATURE | Ref: 15 FRAME & FIELD |
| 16 | 3855896 | BRUSH HOLDER |
| 17 | END | FRAME |
| 18 | SCREW, | Brush holder |
| 19 | 3855901 | BOLT |
| 20 | BOLT, | Solenoid |
| 21 | 3854752 | SCREW, Starter |
| 21 | 3854871 | SCREW, Starter, outer |
| 23 | 3852518 | NUT, Solenoid, metric |
| 24 | 3853714 | NUT, Solenoid |
| 25 | 3852487 | BOOT, Battery cable |
| 26 | 3852079 | BRACKET, Oil cooler |
| 27 | 3853399 | SCREW, Brace to alternator |
