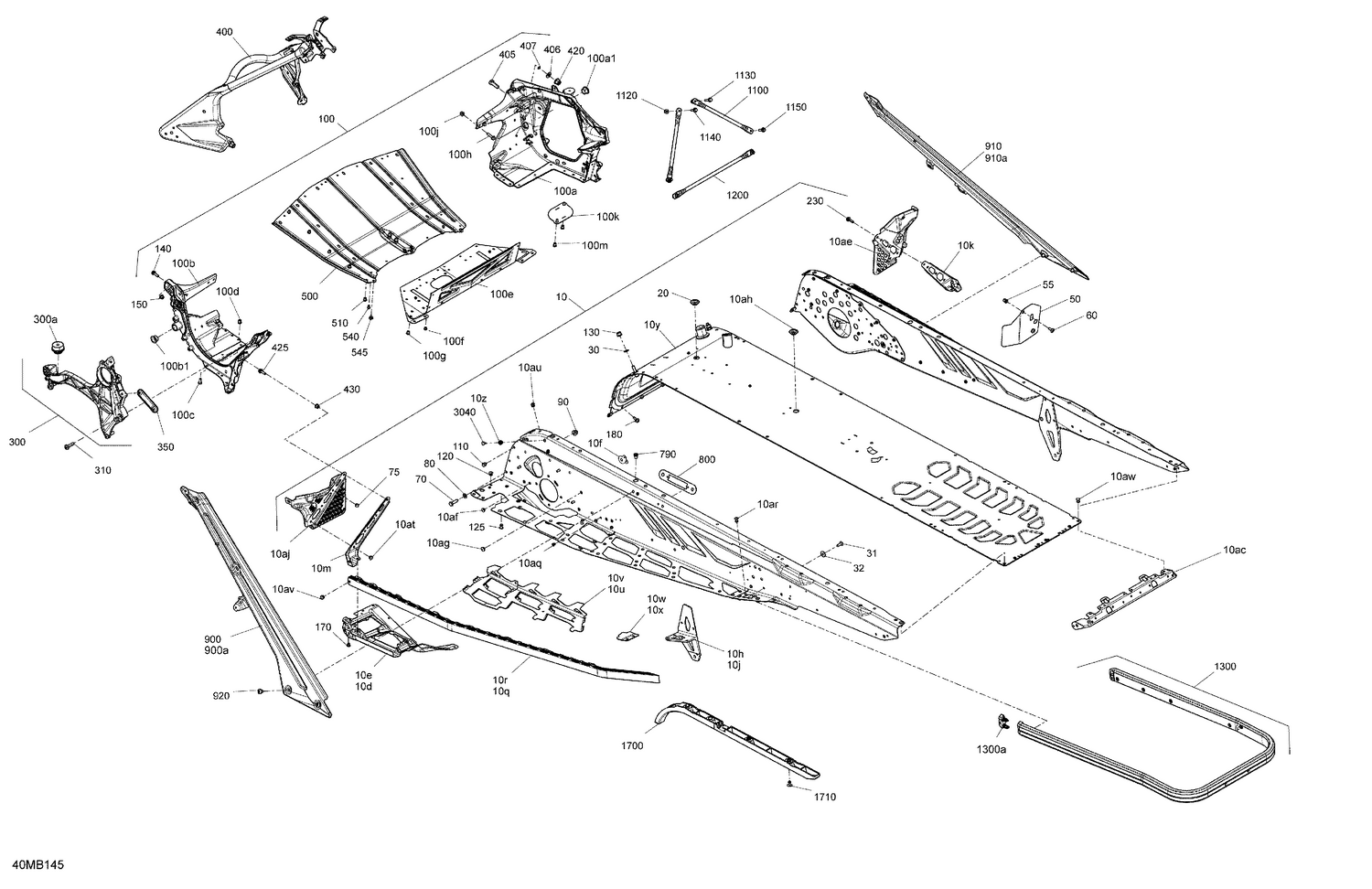

| Ref | Part Number | Description |
|---|
| 10ac |
518328990 |
Rear Cap |
| 10ae |
518330691 |
RH Footrest |
| 10af |
293730041 |
Full Moon Dart 8 mm |
| 10ag |
293730059 |
Full Moon Dart 10 mm |
| 10ah |
293730052 |
Black, Plug |
| 10aj |
518334305 |
LH Foot Protector This part replaces 518331559. |
| 10aq |
293150203 |
Rivet Avibulb 3/16 |
| 10ar |
293150183 |
Rivet |
| 10at |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10au |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10av |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10aw |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10d |
518332803 |
Deep Black, RH Footrest Reinforcement |
| 10e |
518332802 |
Deep Black, LH Footrest Reinforcement |
| 10f |
518335959 |
Front Suspension Arm Reinforcement This part replaces 518329659. |
| 10h |
518329632 |
LH Bracket |
| 10j |
518329633 |
RH Bracket This part replaces 518329633. |
| 10k |
518331253 |
Stirrup Reinforcement |
| 10m |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10q |
518328451 |
RH Roller |
| 10r |
518328452 |
LH Roller |
| 10u |
518331564 |
RH Central Tunnel Reinforcement |
| 10v |
518331565 |
LH Central Tunnel Reinforcement |
| 10w |
518329088 |
LH Reinforcement Plate |
| 10x |
518329089 |
RH Reinforcement Plate |
| 10y |
518334491 |
Radiator Tunnel 154 Ass'y This part replaces 518332554. |
| 10z |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 20 |
293730052 |
Black, Plug |
| 30 |
234081410 |
Flat Washer 8 mm |
| 31 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 32 |
224061201 |
Flat Washer |
| 50 |
518331823 |
Heat Shield |
| 55 |
293450275 |
Insert |
| 60 |
250000717 |
Torx Head Screw M6 X 16 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 75 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a1 |
505072690 |
Leg Bushing |
| 100b1 |
505072690 |
Leg Bushing |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100e |
518332715 |
Bottom Plate |
| 100f |
293150203 |
Rivet Avibulb 3/16 |
| 100g |
293450268 |
Insert M5 X 0.8 |
| 100h |
250000945 |
Hex. Flange Screw M6 X 25 |
| 100j |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100k |
518329454 |
Oil Plate |
| 100m |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 120 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 125 |
293150120 |
Hemlock Rivet 6.5 mm |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Screw-Pan HD.Torx M8X30 |
| 350 |
518331740 |
LH Front Chassis Reinforcement |
| 400 |
518335308 |
Chassis Suspension Module This part replaces 518331593. |
| 405 |
250001148 |
Screw Hex M10 X 30 |
| 406 |
234001410 |
Flat Washer 10 mm |
| 407 |
505072448 |
O-Ring |
| 420 |
250100165 |
Hex. Flange Elastic Nut M10 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 500 |
518331615 |
Front Bottom Plate |
| 510 |
293450268 |
Insert M5 X 0.8 |
| 540 |
390909100 |
Avex Rivet |
| 545 |
293150173 |
Rivet 6,4 mm |
| 790 |
293450278 |
Insert |
| 800 |
518329480 |
Member Fixation Plate |
| 900a |
518333356 |
LH Rear Diagonal Cross Member This part replaces 518333264. |
| 910a |
518332559 |
RH Rear Diagonal Cross Member This part replaces 518333265. |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 1200 |
518329755 |
Center Column Support |
| 1300a |
520001629 |
Bumper Cap |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
