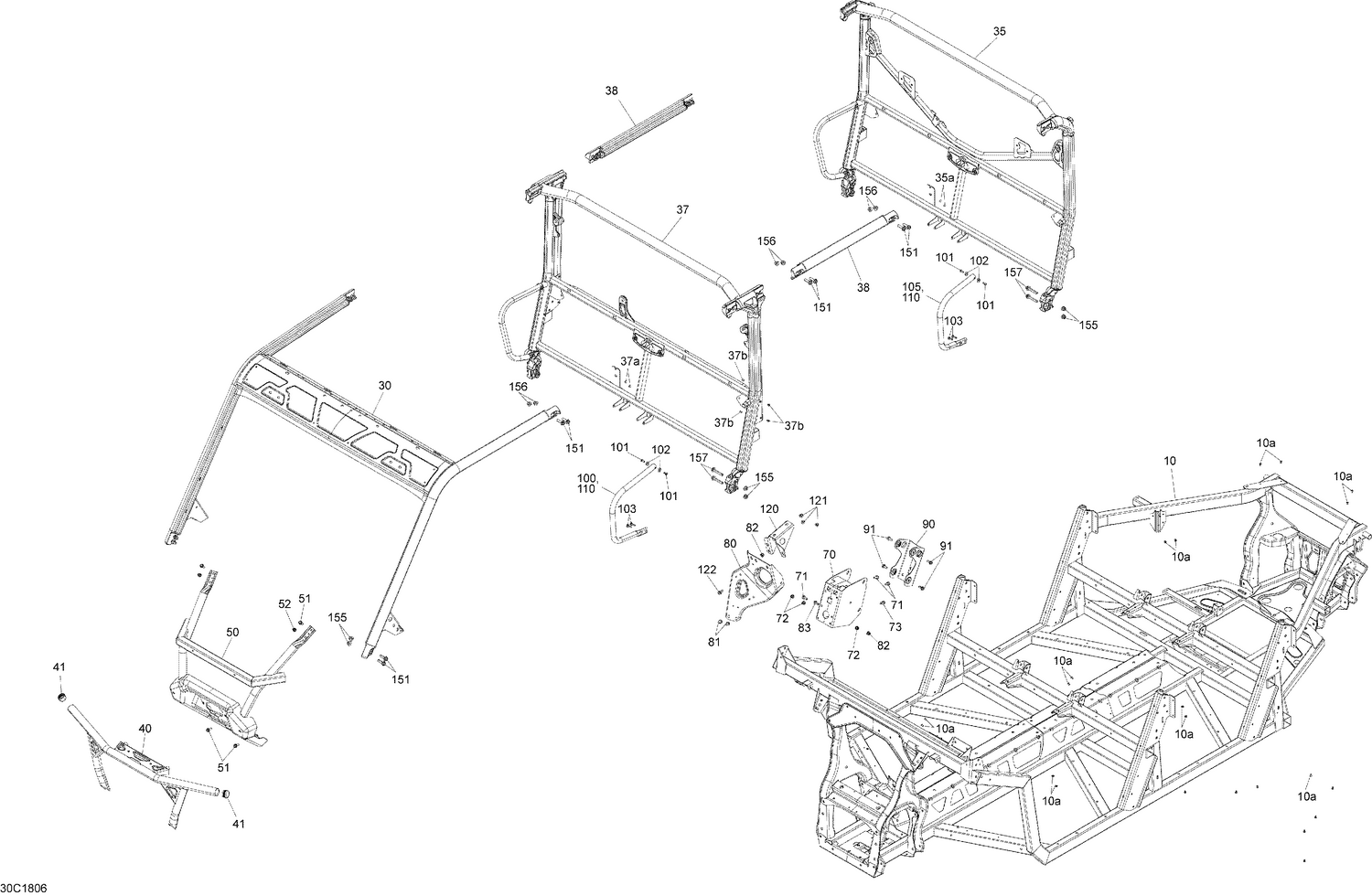

| Ref | Part Number | Description |
|---|
| 10a |
390402200 |
Pop Rivet 3/16" |
| 30 |
715008358 |
Front Cage Service Kit This part replaces 715004028. |
| 35 |
715003569 |
Black, Rear Cage Kit |
| 35a |
390402200 |
Pop Rivet 3/16" |
| 37a |
390402200 |
Pop Rivet 3/16" |
| 37b |
390402200 |
Pop Rivet 3/16" |
| 38 |
705209848 |
Deep Black, Cage Extension This part replaces 705205401. |
| 40 |
715004407 |
XT Front Bumper |
| 41 |
705202455 |
Cap |
| 50 |
705207588 |
Deep Black, Front Bumper This part replaces 705203999. |
| 51 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 70 |
705206316 |
Plate |
| 71 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 72 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 73 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 80 |
705206185 |
DPS Support |
| 81 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 83 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 90 |
705209190 |
Steering Column Support This part replaces 705204429. |
| 91 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 100 |
705204594 |
Deep Black, LH Protector Tube |
| 101 |
250000789 |
Torx Truss M6X14 |
| 102 |
705202223 |
Offset Washer |
| 103 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 105 |
705204590 |
LH Side Protect |
| 110 |
705204592 |
Deep Black, RH Protector Tube |
| 120 |
705205171 |
Shifting Module Support |
| 121 |
233281414 |
Hex. Flange Elastic Nut M8 |
