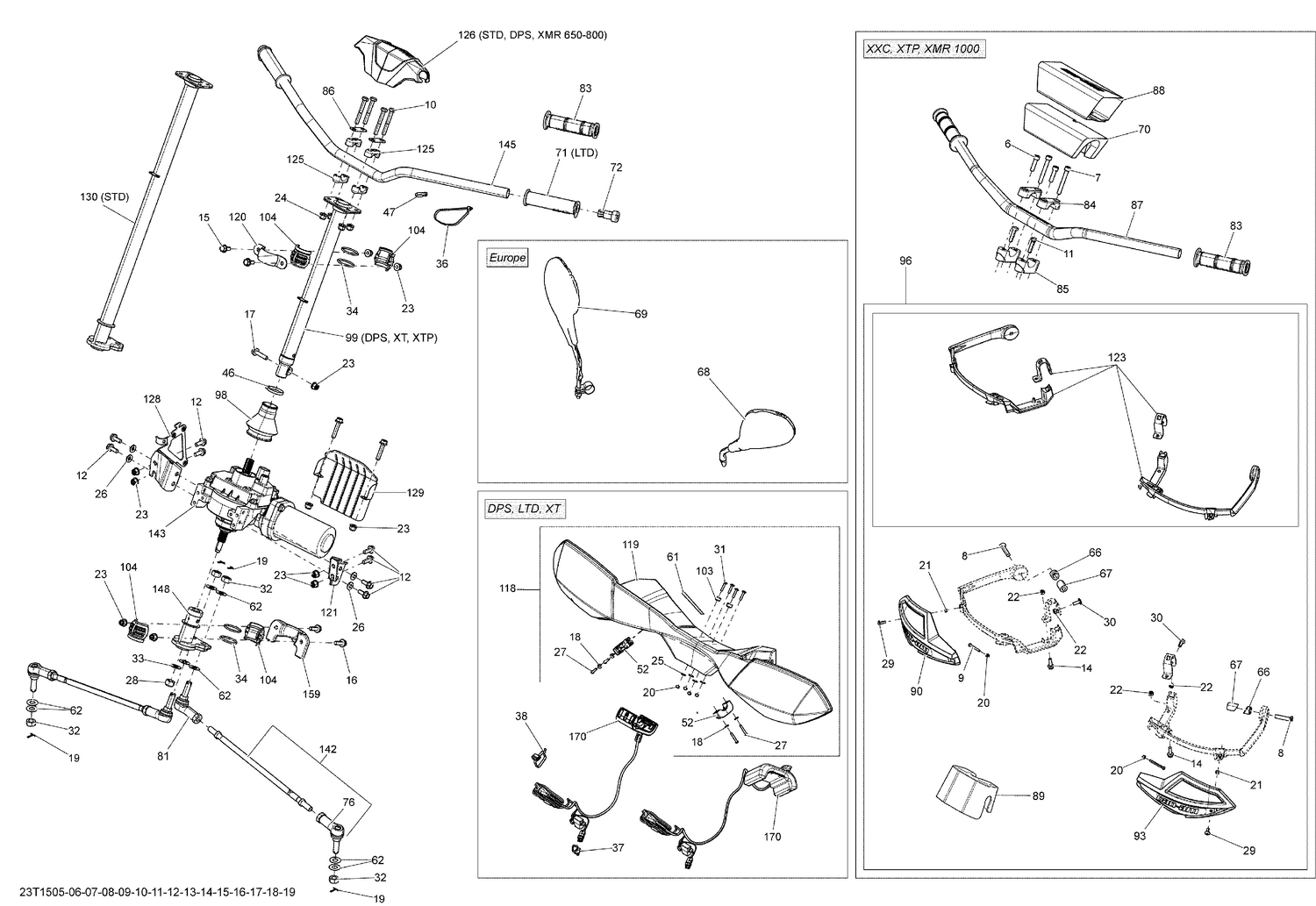

| Ref | Part Number | Description |
|---|
| 12 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 15 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 16 |
207682534 |
Hex. Flange Screw M8 X 25 |
| 17 |
207683544 |
Hex. Flange Screw M8 X 35 |
| 18 |
211200035 |
Flat Washer |
| 19 |
211400013 |
Cotter Pin |
| 23 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 24 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 25 |
XXX |
Not Available As Spare Parts |
| 26 |
234281474 |
Conical Spring Washer M8 |
| 27 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 28 |
250000047 |
Hex. Flange Elastic Nut M12 |
| 31 |
XXX |
Not Available As Spare Parts |
| 32 |
250100099 |
Nut M12 |
| 33 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 34 |
293300068 |
O-Ring |
| 36 |
XXX |
Not Available As Spare Parts |
| 37 |
XXX |
Not Available As Spare Parts |
| 38 |
XXX |
Not Available As Spare Parts |
| 46 |
414115200 |
Tie-Rap 180 mm |
| 47 |
XXX |
Not Available As Spare Parts |
| 52 |
517303264 |
U-Clamp |
| 61 |
704902966 |
DPS Decal |
| 62 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 71 |
XXX |
Not Available As Spare Parts |
| 76 |
709402303 |
LH Ball Joint This part replaces 709400486. |
| 81 |
709402302 |
RH Ball Joint This part replaces 709400490. |
| 83 |
709400493 |
Handle Grip |
| 98 |
709400674 |
Bellows |
| 99 |
703501137 |
Kit Tube-Main. This part replaces 709400703. |
| 103 |
XXX |
Not Available As Spare Parts |
| 104 |
709400783 |
Spherical Half Bushing |
| 119 |
709400822 |
Handle Bar Protector |
| 120 |
709400827 |
Upper Column Attachment |
| 121 |
709400848 |
Power Steering Module Bracket |
| 128 |
709400994 |
RH STEERING BRACKET - Call your local BRP dealership |
| 129 |
709401005 |
HEAT DEFLECTOR - Call your local BRP dealership |
| 130 |
XXX |
Not Available As Spare Parts |
| 142 |
703501038 |
Tie Rod Ass`y This part replaces 703500783. |
| 143 |
709401608 |
Power Steering This part replaces 709401182. |
| 148 |
703500785 |
Pitman Kit |
| 159 |
709401428 |
Column Attachment |
