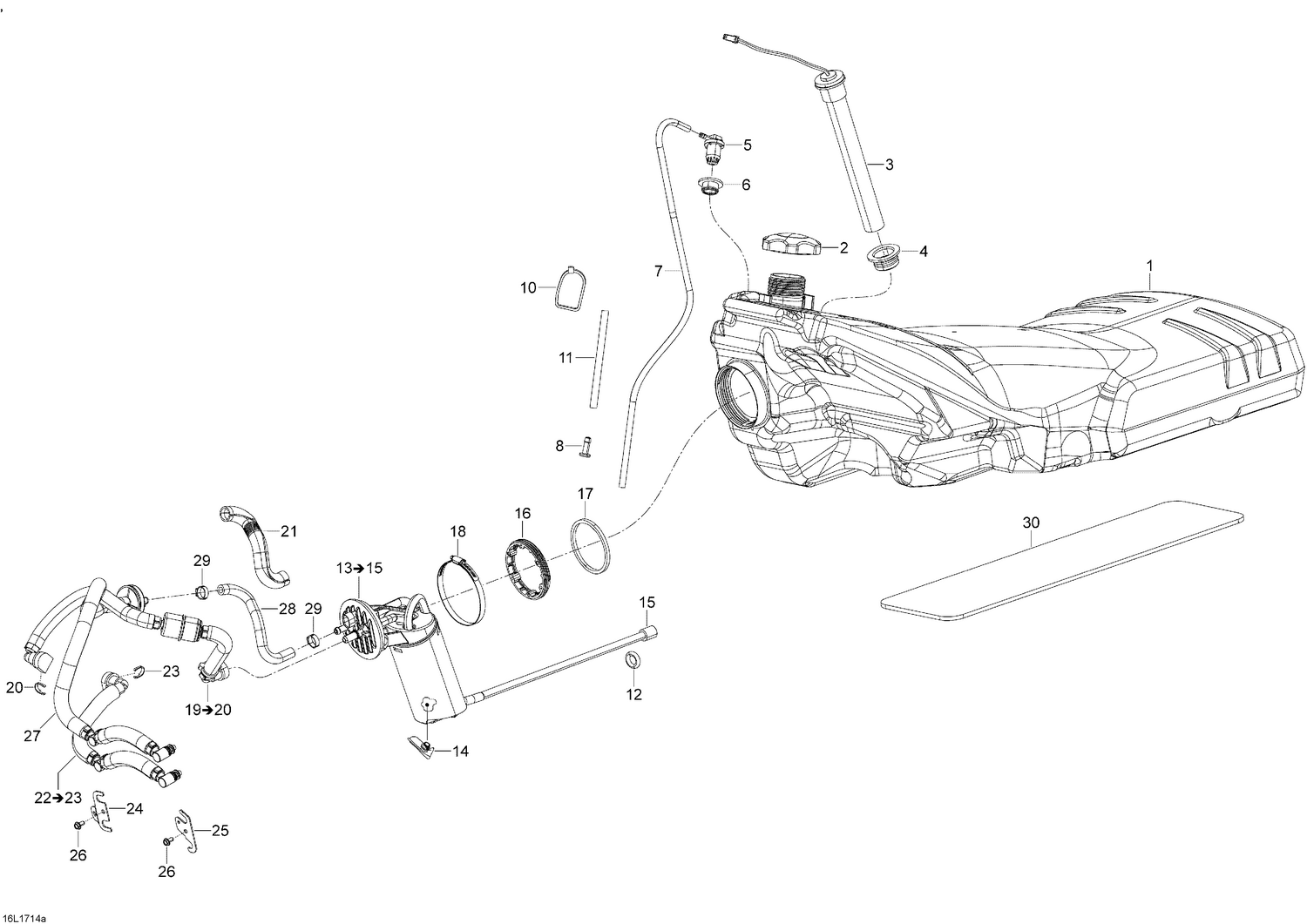

02- Fuel System E-TEC
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033757 | Fuel Tank |
| 2 | 513033723 | Cap |
| 3 | 513033538 | Fuel Sensor |
| 4 | 293720058 | Grommet |
| 5 | 513033842 | Check Valve |
| 6 | 513033596 | Grommet |
| 7 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 8 | 513033821 | HOSE CONNECTOR - Call your local BRP dealership |
| 10 | 414115200 | Tie-Rap 180 mm |
| 11 | 504153074 | Tube Protector This part replaces 504152900. |
| 12 | 293300184 | O Ring |
| 14 | 415129451 | Fuel Filter (In Tank, Fuel Pump) |
| 15 | 414872100 | Fuel Filter (In Tank, Fuel Line) |
| 16 | 513033180 | Ring |
| 17 | 513033334 | Gasket |
| 18 | 513033628 | Clamp |
| 20 | 513033135 | Locking Tab |
| 21 | 415080000 | Protector Tube |
| 23 | 513033135 | Locking Tab |
| 24 | 513033542 | RH Bracket |
| 25 | 513033593 | LH Bracket |
| 26 | 207551044 | Hex. Flange Screw M5 X 10 |
| 27 | 513033631 | Upper Hose Ass'y (Incl. Press. Regulator) |
| 28 | 513033544 | FORMED HOSE - Call your local BRP dealership |
| 29 | 293650047 | Crimp Clamp, 15.3-706R |
