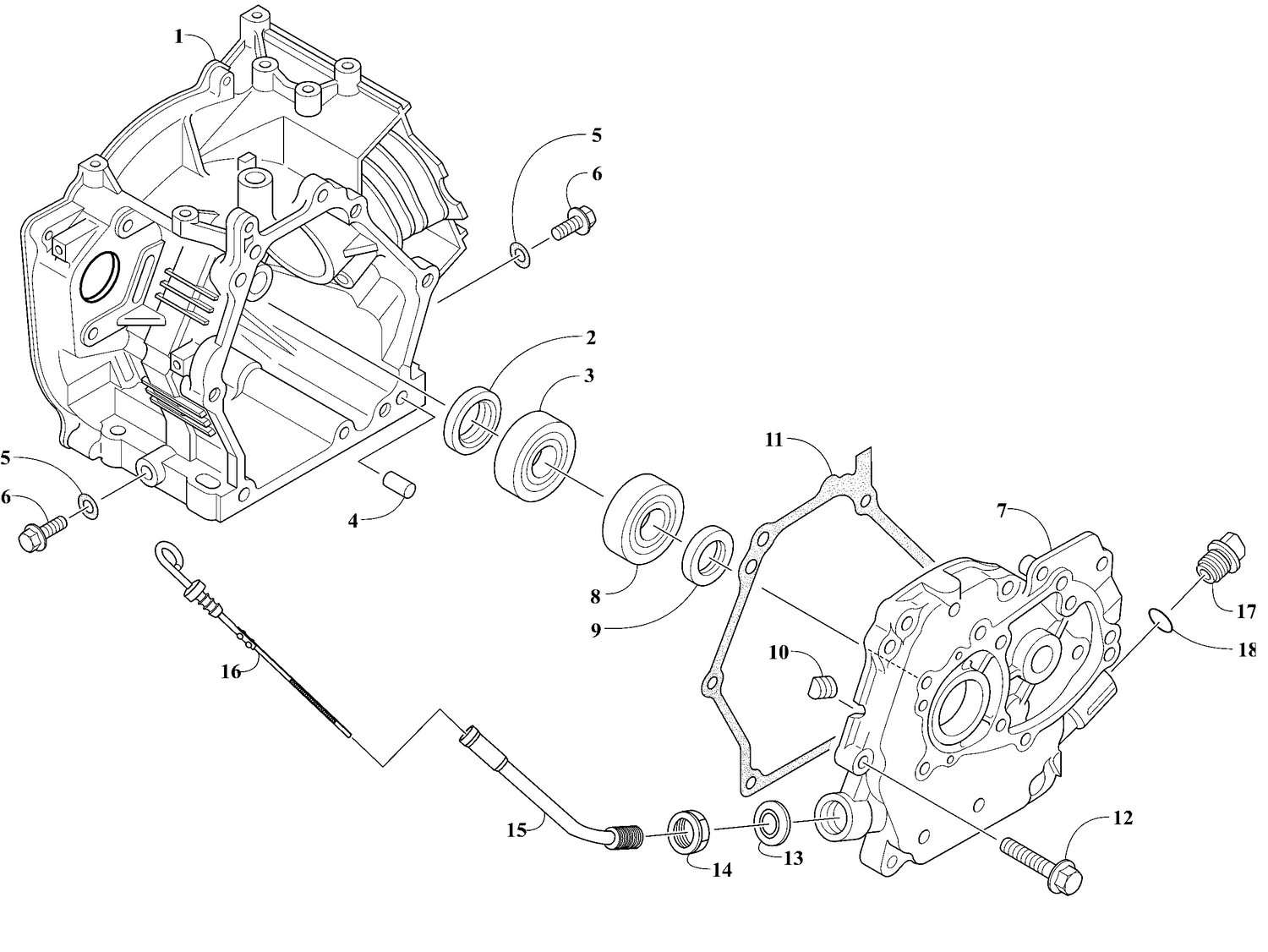

Engine - Crankcase and Cover
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3021-991 | Crankcase (200) |
| 2 | 3020-110 | Oil Seal |
| 3 | 3021-795 | Ball Bearing |
| 4 | 3020-127 | Center Pin |
| 5 | 3021-799 | Gasket This part replaces 3020-101. |
| 6 | 3021-798 | Hex Flange Screw |
| 7 | 3021-803 | Crankcase Cover (200) |
| 8 | 3021-804 | Ball Bearing |
| 9 | 3020-109 | Oil Seal |
| 10 | 3020-100 | Plug |
| 11 | 3021-807 | Crankcase Cover Gasket (200) |
| 12 | 3021-808 | Flange Bolt |
| 13 | 2670-666 | Gasket Ring M20 X 28MM OD |
| 14 | 3021-954 | Nut Retaining Oil (200) |
| 15 | 3021-953 | Oil Level Gauge Tube |
| 16 | 3021-922 | Oil Level Gauge |
| 17 | 3020-060 | Oil Level Filling Plug |
