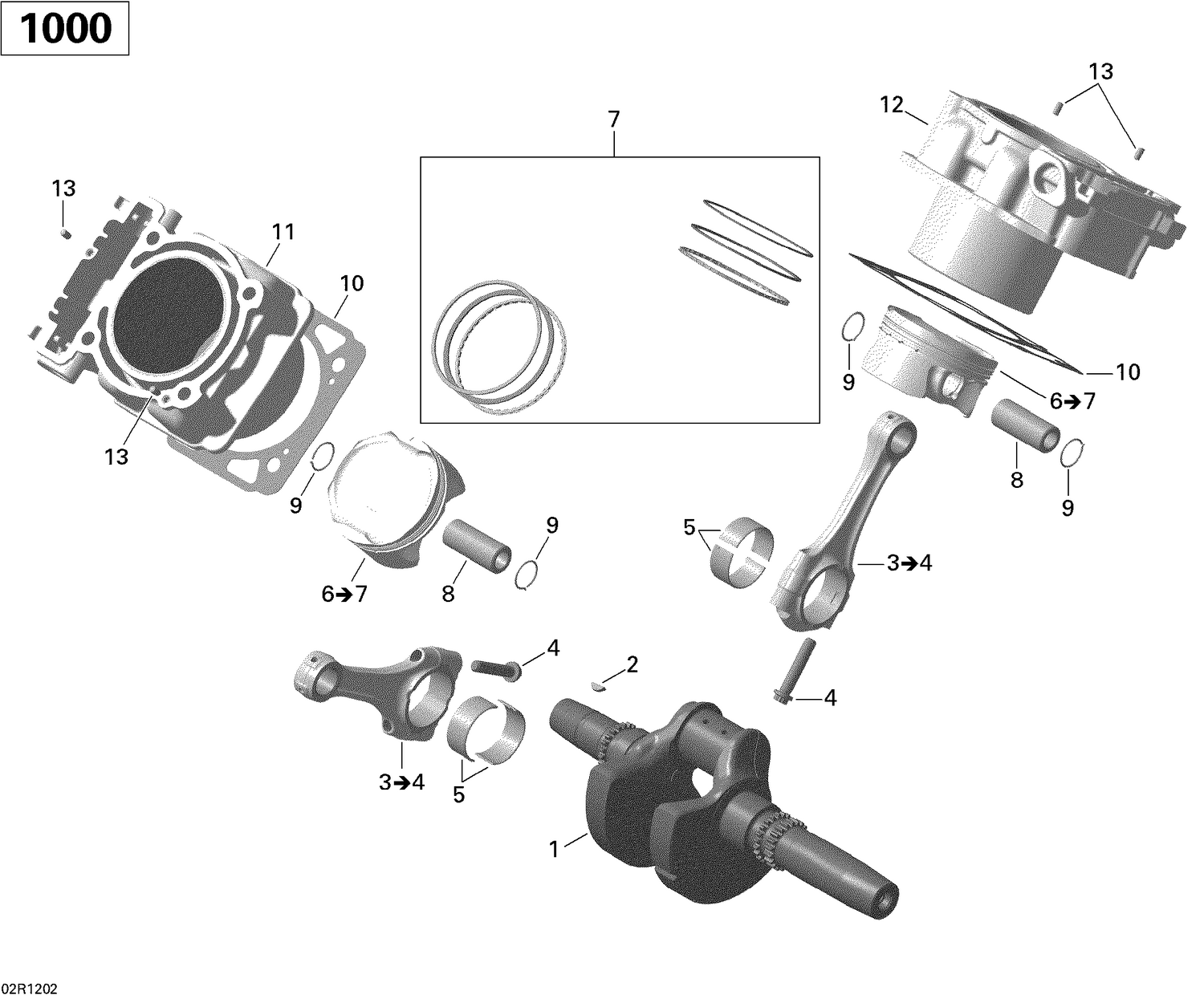

01- Crankshaft, Piston And Cylinder
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420219736 | Crankshaft This part replaces 420219735. |
| 2 | 420246570 | Woodruff Key 4 X 5 |
| 4 | 420641475 | Connecting Rod Screw M9 X 1 This part replaces 420641477. |
| 5 | 420233726 | Plain Bearing |
| 7 | 420296774 | Piston Ring Set This part replaces 420685244. |
| 8 | 420216351 | Piston Pin |
| 9 | 420245436 | Piston Circlip |
| 10 | 420630211 | Gasket Aramid This part replaces 420630210. |
| 11 | 420413111 | Cylinder Front This part replaces 420623566. |
| 12 | 420413116 | Cylinder Rear This part replaces 420623568. |
