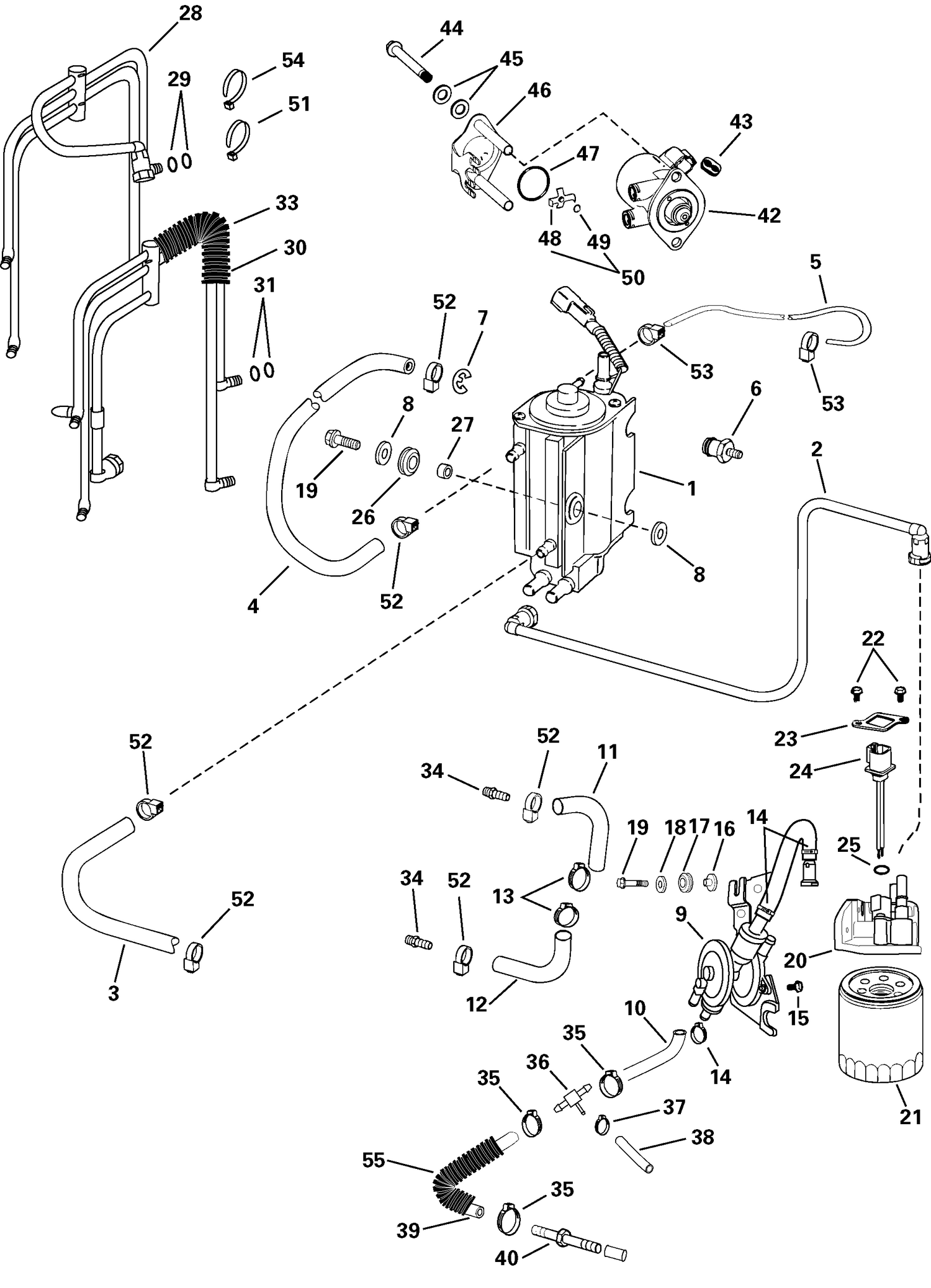

| Ref | Part Number | Description |
|---|
| 1 |
5004428 |
VAPOR SEPARATOR/FUEL PUMP |
| 2 |
0439821 |
FUEL SUPPLY TUBE Assy, Filter to vapor separator |
| 3 |
0333381 |
HOSE, Connector to filter |
| 4 |
0344794 |
HOSE, Water to EMM from vapor sep |
| 7 |
0510487 |
RETAINING RING |
| 9 |
5010025 |
Pump Ay This part replaces 5004459. |
| 20 |
5001252 |
FILTER HOUSING Assy, Fuel |
| 21 |
5012363 |
Filter Ay This part replaces 0502906. |
| 27 |
0335328 |
SCREW, Connector |
| 28 |
5000203 |
FUEL MANIFOLD Assy, Supply |
| 30 |
5005404 |
FUEL MANIFOLD Assy, Return |
| 36 |
0345701 |
FITTING, Fuel to Oil tee |
| 37 |
0348838 |
CLAMP, 10.5mm |
| 39 |
0348790 |
HOSE, Fuel inlet to tee |
| 46 |
5001718 |
CAP, SLEEVE & O-RING |
| 52 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
