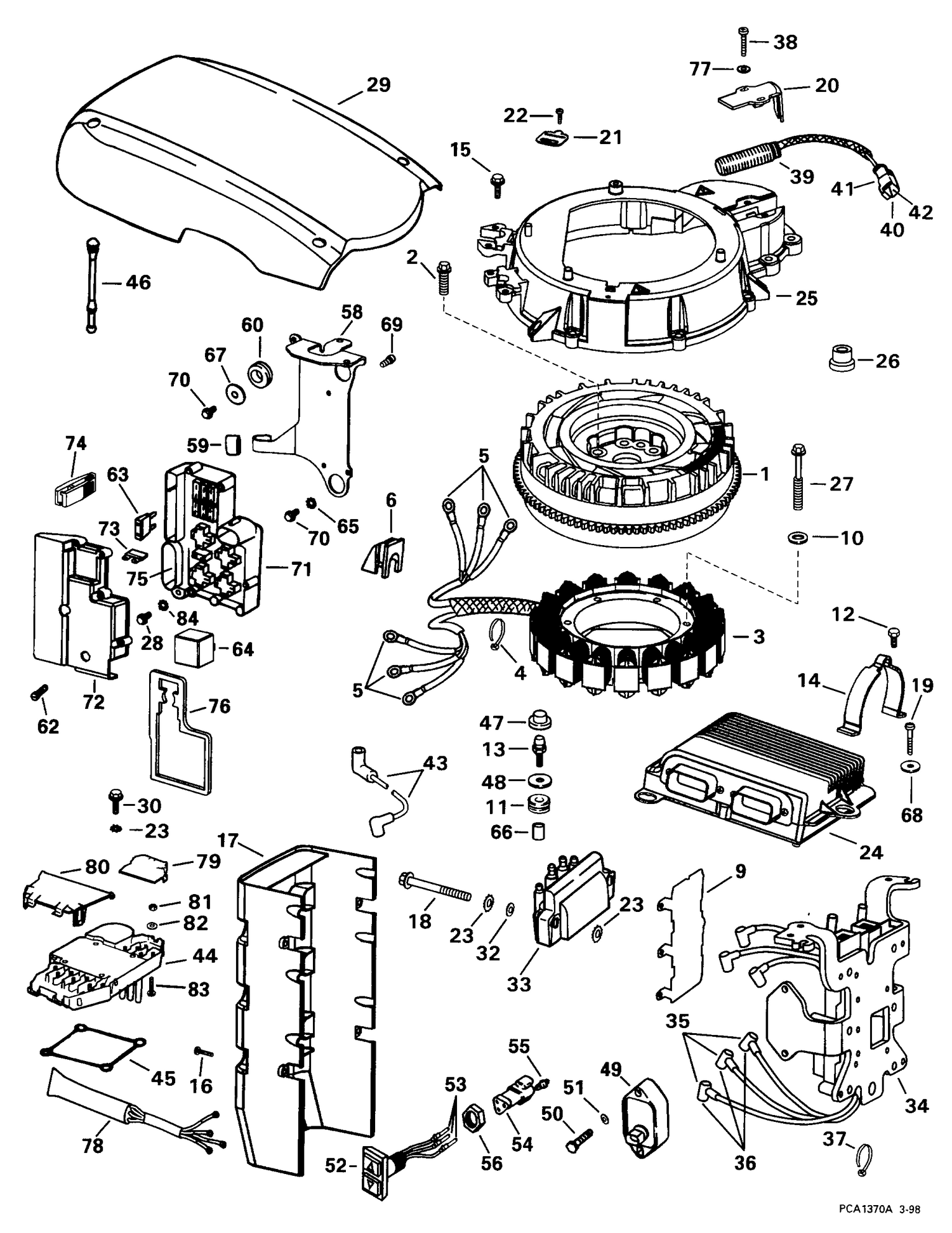

| Ref | Part Number | Description |
|---|
| 1 |
0586247 |
FLYWHEEL ASSY. |
| 2 |
0336135 |
SCREW, Flywheel |
| 3 |
0585257 |
STATOR ASSY. |
| 4 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 |
0360252 |
WASHER This part replaces 0306311. |
| 12 |
0331036 |
VIS, attache de palier |
| 13 |
0343754 |
STUD, ECU to flywheel cover |
| 14 |
0514891 |
CLAMP, Capacitor |
| 15 |
0909533 |
SCREW, Pressure relief valve cover |
| 17 |
0343521 |
COVER, Ignition module |
| 18 |
0343571 |
SCREW, Coil mounting |
| 19 |
0909676 |
SCREW |
| 20 |
0343468 |
COVER, Sensor |
| 25 |
5004519 |
COVER Assy, Flywheel This part replaces 0437628. |
| 27 |
0343525 |
SCREW, Stator |
| 29 |
0341156 |
COVER, ECU, power pack to flywheel |
| 30 |
3010525 |
SCREW, Regulator |
| 31 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 33 |
0583740 |
COIL Assy |
| 34 |
0586381 |
IGNITION MODULE |
| 39 |
0586221 |
SENSOR ASSY., Crank position |
| 43 |
5001890 |
LEAD ASSY., Ignition coil - Z This part replaces 0586378. |
| 44 |
0586394 |
RECTIFIER & REGULATOR |
| 46 |
0343751 |
STRAP, ECU cover |
| 49 |
0585171 |
SUPPRESSOR ASSY. |
| 58 |
0514867 |
BRACKET, Fuse assy. |
| 59 |
0343598 |
BUMPER, Bracket to block |
| 62 |
0343838 |
SCREW, Cover to base |
| 66 |
0335328 |
SCREW, Connector |
| 68 |
0336316 |
WASHER, screw, bracket to hood |
| 71 |
0586754 |
POWER DISTRIBUTION PANEL This part replaces 0586252. |
| 72 |
0586223 |
COVER ASSY. |
| 76 |
0514772 |
SEAL, Cover |
| 78 |
0176894 |
SUPPRESSOR ASSY. |
| 78E |
078E |
Production, 6-Screw Cover |
| 79 |
3010088 |
COVER, Rectifier, port |
| 80 |
3010089 |
COVER, Rectifier, port |
| 80L |
080L |
Production, 2-Screw Cover |
| 81 |
3010522 |
NUT |
| 82 |
3010523 |
BUSHING, Leads |
| 83 |
3010521 |
SCREW, Regulator terminal |
| 84POWER |
84POWER |
DISTRIBUTION PANEL |
