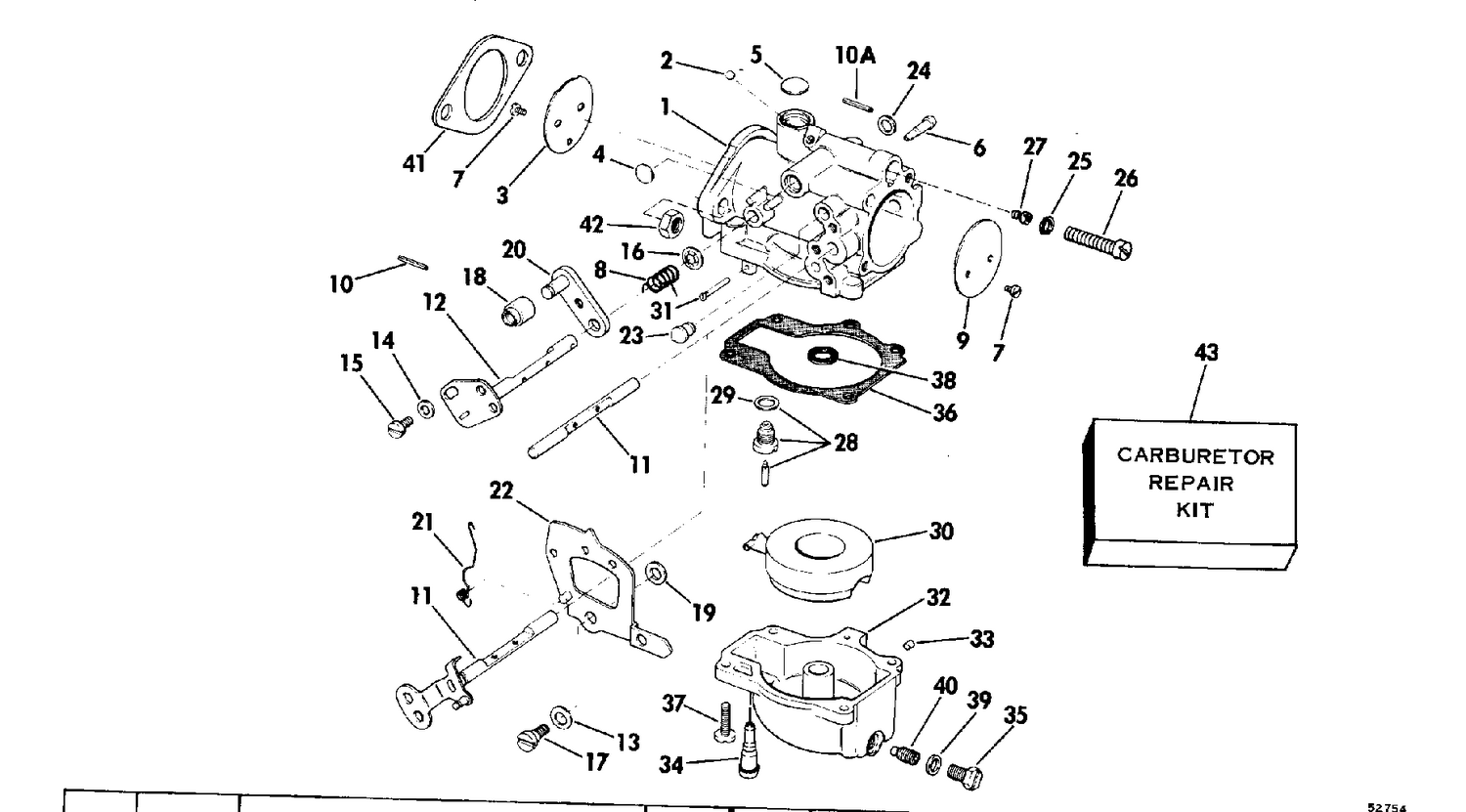

CARBURETOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0387127 | BODY ASSEMBLY,Upper & lower |
| 1 | 0387128 | BODY ASSEMBLY,Middle |
| 9 | 0322182 | CHOKE VALVE This part replaces 0313359. |
| 11 | 0321798 | CHOKE SHAFT This part replaces 0313358. |
| 32 | 0383318 | FLOAT CHAMBER ASSEMBLY |
| 32 | 0383319 | FLOAT CHAMBER ASSEMBLY |
| 35 | 0307832 | PLUG, Screw |
| 40 | 0319907 | ORIFICE PLUG |
| 41 | 0325092 | GASKET This part replaces 0314477. |
| 42 | 0316355 | BUT, Carburetor mounting |
| 0387125 | 0387125 | CARBURETOR ASSEMBLY,Upper & lower |
| 0387126 | 0387126 | CARBURETOR & ASSEMBLY,Middle |
