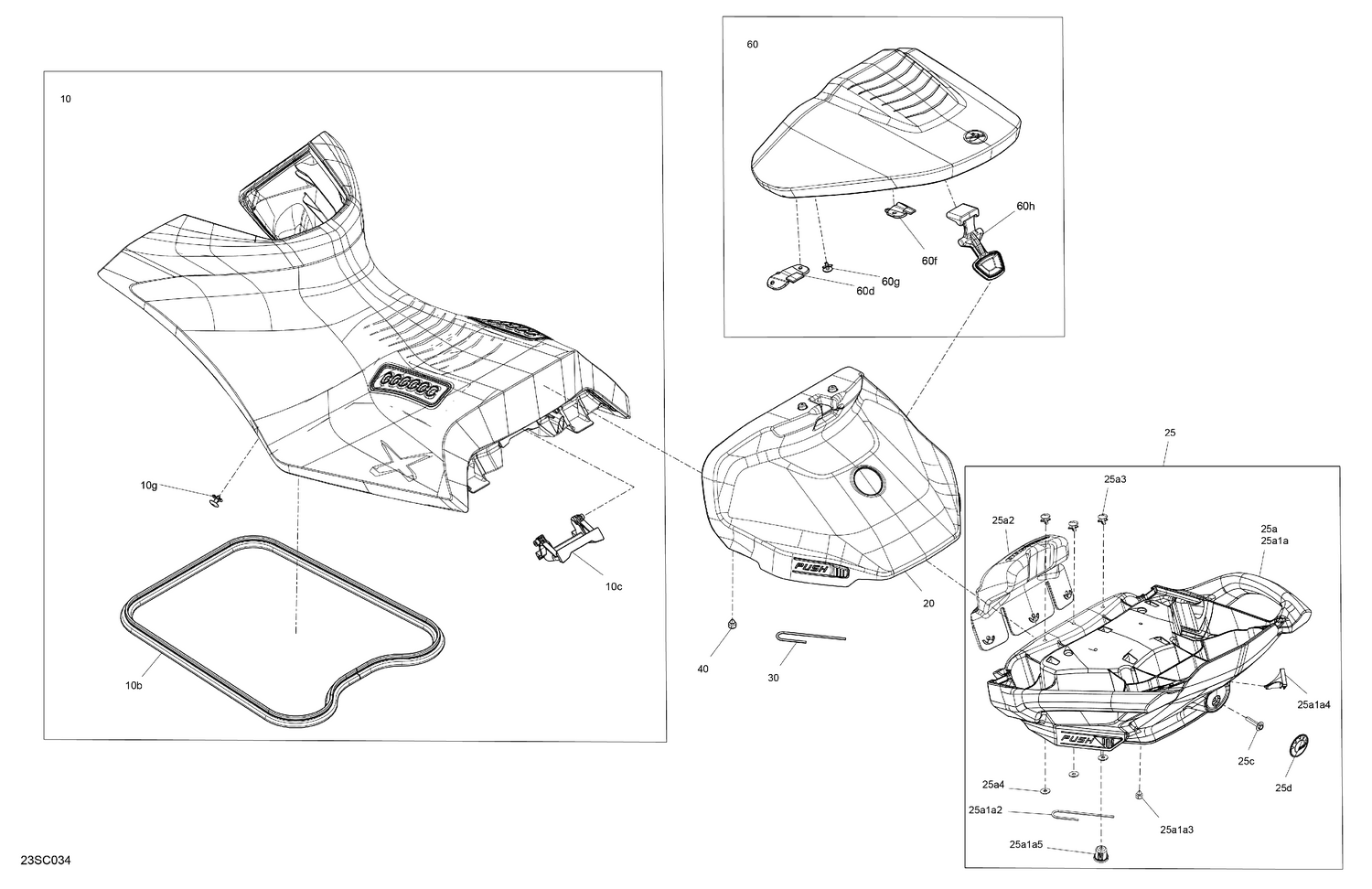

07- Body - Seat
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 219704366 | Was 293200062 Seal |
| 10c | 269003103 | Seat Latch |
| 10g | 293150067 | Rivet |
| 20 | 269003475 | Molded Base Support |
| 25a1a2 | 269003083 | Spring Latch |
| 25a1a3 | 293830005 | Rubber Bumper |
| 25a1a4 | 269004355 | Handle Trim This part replaces 269003778. |
| 25a1a5 | 269003085 | Stud Receiver |
| 25a2 | 269003542 | Rear Holding Handle |
| 25a3 | 293150067 | Rivet |
| 25a4 | 234062600 | Flat Washer M6, Stainless |
| 25c | 250000399 | Hexagonal Cap Screw M6 X35 |
| 25d | 219906417 | Emblem Logo BRP 48 MM UV |
| 30 | 269003083 | Spring Latch |
| 40 | 293830005 | Rubber Bumper |
| 60d | 269003503 | LH Retaining Hook |
| 60f | 269003505 | RH Retaining Hook |
| 60g | 293150222 | Pop Rivet 3/16" |
