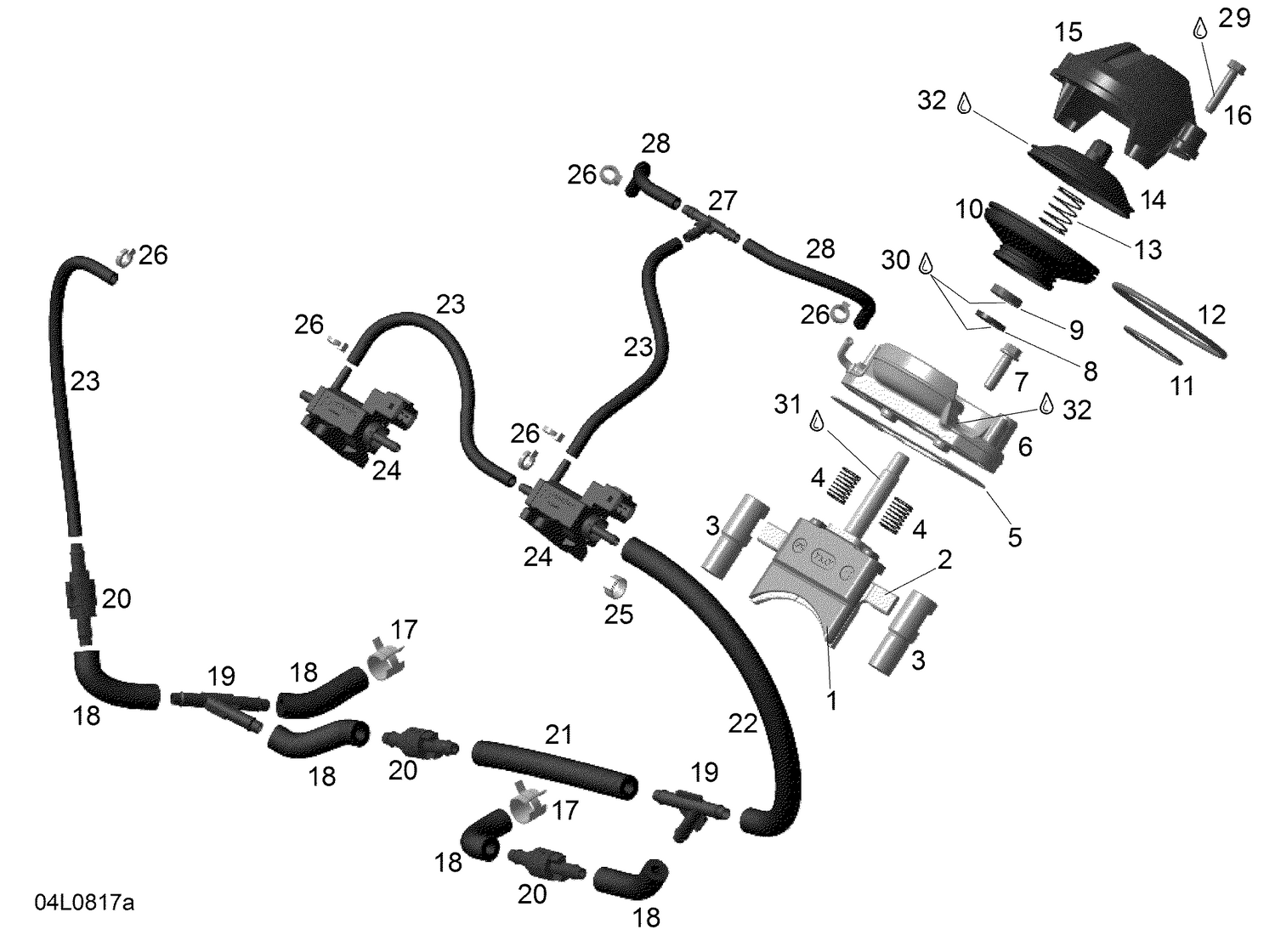

| Ref | Part Number | Description |
|---|
| 1 |
420854900 |
Ehaust valva upper |
| 2 |
420854906 |
LOWER EXHAUST VALVE - Call your local BRP dealership |
| 3 |
420854890 |
Exhaust valve |
| 4 |
420238558 |
Spring This part replaces 420238554. |
| 5 |
420430030 |
Gasket |
| 6 |
420854887 |
VALVE HOUSING - Call your local BRP dealership |
| 7 |
420440207 |
Flanged Torx Screw M6X20-SW8/T30 This part replaces 420440202. |
| 8 |
420431380 |
Gasket ring |
| 9 |
420950732 |
Oil Seal This part replaces 420950730. |
| 10 |
420260725 |
Bellows This part replaces 420260724. |
| 11 |
420838255 |
Hose spring |
| 12 |
420939286 |
Hose Spring This part replaces 420939285. |
| 13 |
420238557 |
Spring This part replaces 420238555. |
| 14 |
420854444 |
EXHAUST VALVE PISTON - Call your local BRP dealership |
| 15 |
420812710 |
Valve cover |
| 16 |
420241271 |
Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 17 |
293650214 |
Spring Clamp This part replaces 420853510. |
| 18 |
420660561 |
Pressure line, 50mm |
| 19 |
293710059 |
T-Fitting This part replaces 420460635. |
| 20 |
420660543 |
Check Valve This part replaces 420660545. |
| 21 |
420660564 |
HIGH PRESSURE AIR HOSE 100 MM - Call your local BRP dealership |
| 22 |
420660565 |
HIGH PRESSURE AIR HOSE 220 MM - Call your local BRP dealership |
| 23 |
420660571 |
Pressure line, 180mm |
| 24 |
420664630 |
Solenoid valve |
| 25 |
420851463 |
Clamp |
| 26 |
420866720 |
Tie Rap This part replaces 420866718. |
| 27 |
293710068 |
T-Fitting This part replaces 420660550. |
| 28 |
420660576 |
HIGH PRESSURE AIR HOSE 110 MM - Call your local BRP dealership |
| 29 |
293800060 |
Loctite 243 |
| 30 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 31 |
Not |
Available As Spare Part - Molukote G-N slide paste |
