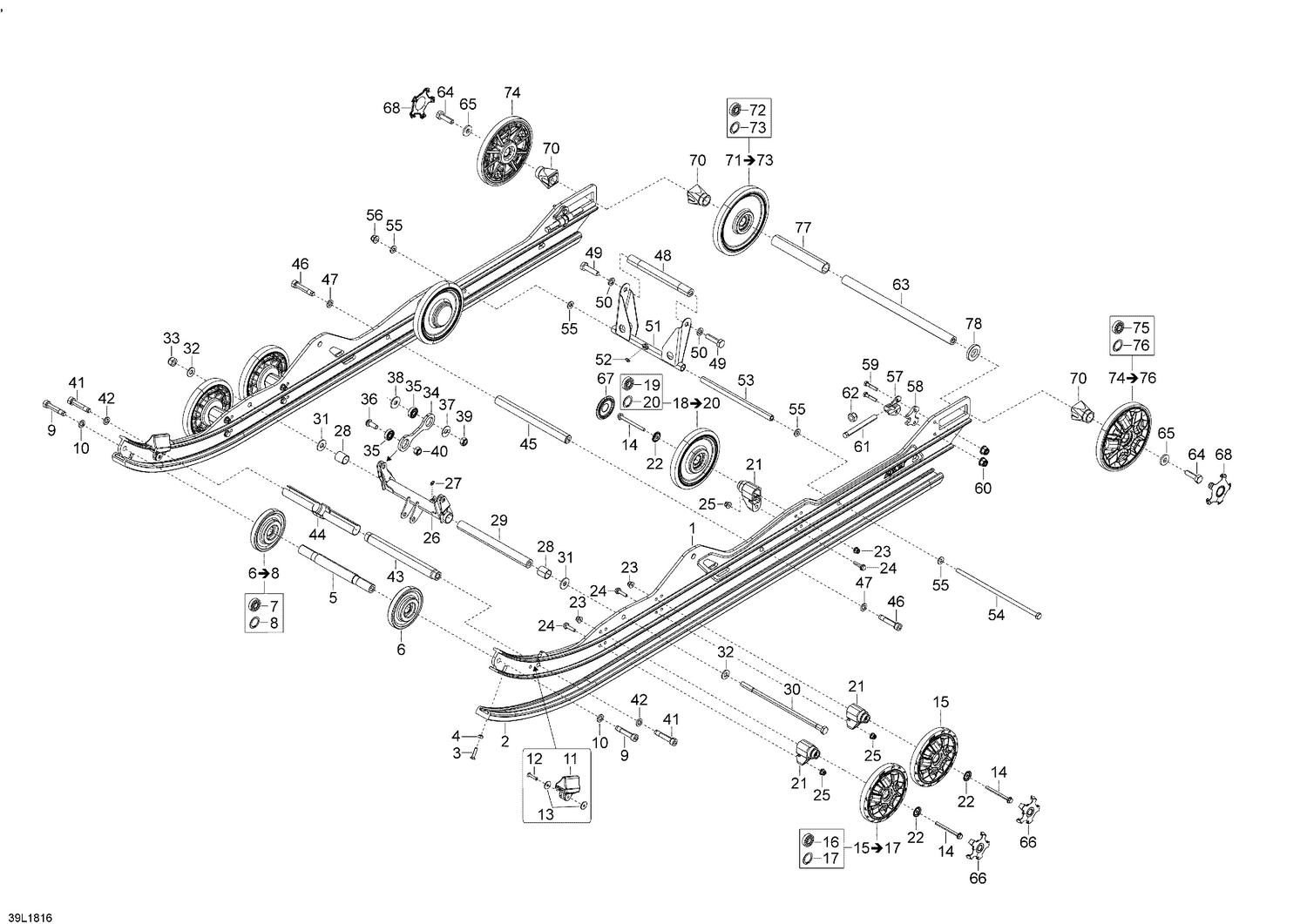

08- Rear Suspension XTRIM - 600 ACE
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503194242 | LH Runner |
| 1 | 503194243 | RH Runner |
| 2 | 503193170 | Slide Shoe |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 503192842 | Front Wheel Shaft |
| 7 | 503190396 | Ball Bearing |
| 8 | Not | Available As Spare Part - Circlip |
| 9 | 205504544 | Socket Screw |
| 10 | 503192496 | Washer |
| 11 | 503192106 | Rubber Stopper |
| 12 | 293150142 | Pop Rivet 3/16" |
| 13 | 503191273 | Washer |
| 14 | 207667056 | Hex. Flange Screw M6 x 70 |
| 16 | 503190396 | Ball Bearing |
| 17 | Not | Available As Spare Part - Circlip |
| 19 | 503190396 | Ball Bearing |
| 20 | 415129371 | Retaining Ring |
| 21 | 503193894 | Casted Support |
| 22 | 503191820 | Wheel Cup M6 |
| 23 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 24 | 207662556 | Hex. Flange Screw M6 X 25 |
| 25 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 26 | 503194799 | Front Swing |
| 27 | 408200700 | Grease Fitting |
| 28 | 503193822 | Bushing |
| 29 | 503193893 | Lower Shaft |
| 30 | 503193227 | Bolt M10 X 251MM |
| 31 | 503191926 | Washer |
| 32 | 250200138 | Washer |
| 33 | 233601466 | Elastic Locking Nut M10 |
| 34 | 605254159 | Connecting Rod |
| 35 | 503194696 | Bearing |
| 36 | 205402546 | Socket Screw BN.HD.ISO.7380 |
| 37 | 25004 | Cup Spring |
| 38 | 234002600 | Flat Washer 10 mm, Stainless |
| 39 | 233401414 | Lock Spring Nut M10 |
| 40 | 232500416 | Elastic Stop Nut M10 |
| 41 | 205505054 | Socket Screw |
| 42 | 503192496 | Washer |
| 43 | 503195015 | Limiter Strap Shaft |
| 44 | 503194867 | Holder, Limiter Strap |
| 45 | 5343471 | Shaft |
| 46 | 205505054 | Socket Screw |
| 47 | 503192496 | Washer |
| 48 | 503193638 | Shaft-lower |
| 49 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 50 | 503192496 | Washer |
| 51 | 503194342 | Rear Swing |
| 52 | 408200700 | Grease Fitting |
| 53 | 503189156 | Pivot Arm Axle |
| 54 | 503192440 | Bolt M8 X 248mm |
| 55 | 503192494 | Washer |
| 56 | 233281466 | Elastic Flang Nut M8 |
| 57 | 503192583 | Tensioner This part replaces 503192814. |
| 58 | 503193250 | Spacer |
| 59 | 207063054 | Hex. Cap Screw M6 X 30 |
| 60 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 61 | 230100054 | Hex Screw M10 x 100 |
| 62 | 233601466 | Elastic Locking Nut M10 |
| 63 | 503190429 | Rear Axle |
| 64 | 250000019 | Hex. Screw With Nylon |
| 65 | 503190439 | Washer |
| 66 | 503193735 | BlackWheel Cap |
| 67 | 503192771 | Black, Wheel Cap |
| 68 | 503193810 | Black Wheel Cap |
| 70 | 503190428 | Rear Wheel Spacer |
| 72 | 503190396 | Ball Bearing |
| 73 | 415129371 | Retaining Ring |
| 75 | 503190396 | Ball Bearing |
| 76 | 415129371 | Retaining Ring |
| 77 | 503196317 | Spacer This part replaces 503190430. |
