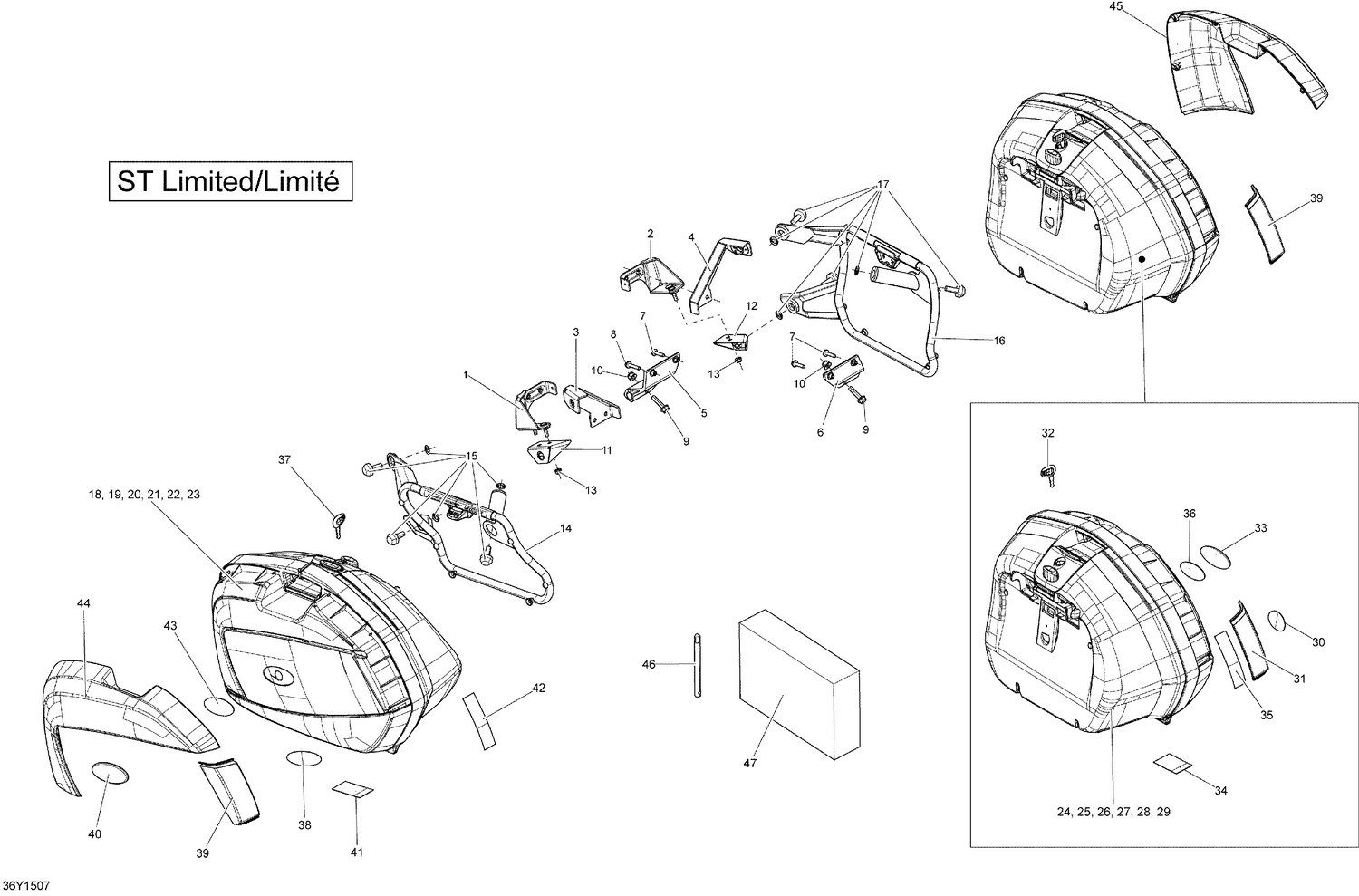

| Ref | Part Number | Description |
|---|
| 1 |
708300775 |
LH LOWER SUPPORT - Call your local BRP dealership |
| 2 |
708300776 |
RH LOWER SUPPORT - Call your local BRP dealership |
| 3 |
708300897 |
LH FRONT SUPPORT - Call your local BRP dealership |
| 4 |
708300898 |
RH FRONT SUPPORT - Call your local BRP dealership |
| 5 |
708300778 |
LH REAR SUPPORT - Call your local BRP dealership |
| 6 |
708300779 |
RH REAR SUPPORT - Call your local BRP dealership |
| 7 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 8 |
207563044 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 9 |
207683544 |
Hex. Flange Screw M8 X 35 |
| 10 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 11 |
708300747 |
LH LOWER TIE - Call your local BRP dealership |
| 12 |
708300749 |
RH LOWER TIE - Call your local BRP dealership |
| 13 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 15 |
219400224 |
GIVI FASTENER KIT - Call your local BRP dealership |
| 17 |
219400224 |
GIVI FASTENER KIT - Call your local BRP dealership |
| 18 |
708300854 |
LH SIDE CASE ASS'Y - Call your local BRP dealership |
| 19 |
708300444 |
Red Pulley |
| 20 |
708300445 |
Inner Straps |
| 21 |
708300446 |
Lid Straps |
| 22 |
708301030 |
KEY AND BARRELS KIT - Call your local BRP dealership |
| 23 |
708300448 |
LATCH KIT - Call your local BRP dealership |
| 24 |
708300855 |
RH SIDE CASE ASS'Y - Call your local BRP dealership |
| 25 |
708300444 |
Red Pulley |
| 26 |
708300445 |
Inner Straps |
| 27 |
708300446 |
Lid Straps |
| 28 |
708301030 |
KEY AND BARRELS KIT - Call your local BRP dealership |
| 29 |
708300448 |
LATCH KIT - Call your local BRP dealership |
| 30 |
708300141 |
DECAL, CAN-AM - Call your local BRP dealership |
| 31 |
219400235 |
GIVI REFLECTOR KIT - Call your local BRP dealership |
| 32 |
708301030 |
KEY AND BARRELS KIT - Call your local BRP dealership This part replaces 708300371. |
| 33 |
219400236 |
RED LATERAL REFLECTOR - Call your local BRP dealership This part replaces 705001572. |
| 34 |
704902091 |
REAR MAXIMUM LOAD DECAL - Call your local BRP dealership |
| 35 |
704902052 |
STRIP REFLECTOR - Call your local BRP dealership |
| 36 |
704904535 |
SPACER DECAL - Call your local BRP dealership This part replaces 704902053. |
| 37 |
708301030 |
KEY AND BARRELS KIT - Call your local BRP dealership |
| 38 |
708300141 |
DECAL, CAN-AM - Call your local BRP dealership |
| 39 |
219400235 |
GIVI REFLECTOR KIT - Call your local BRP dealership |
| 40 |
219400237 |
GIVI REFLECTOR - Call your local BRP dealership This part replaces 705001573. |
| 41 |
704903112 |
WARNING DECAL, MAXIMUM LOAD - Call your local BRP dealership |
| 42 |
704902052 |
STRIP REFLECTOR - Call your local BRP dealership |
| 43 |
704904535 |
SPACER DECAL - Call your local BRP dealership |
| 44 |
708300849 |
TRIM_SADDLEBAG REAR L B-313 - Call your local BRP dealership |
| 44 |
708301423 |
TRIM_SADDLEBAG REAR L B-266 - Call your local BRP dealership |
| 44 |
708301429 |
TRIM_SADDLEBAG REAR L B-374 - Call your local BRP dealership |
| 45 |
708300850 |
TRIM_SADDLEBAG REAR R B-313 - Call your local BRP dealership |
| 45 |
708301424 |
TRIM_SADDLEBAG REAR R B-266 - Call your local BRP dealership |
| 45 |
708301430 |
TRIM_SADDLEBAG REAR R B-374 - Call your local BRP dealership |
| 46 |
708300261 |
GIVI Tool |
