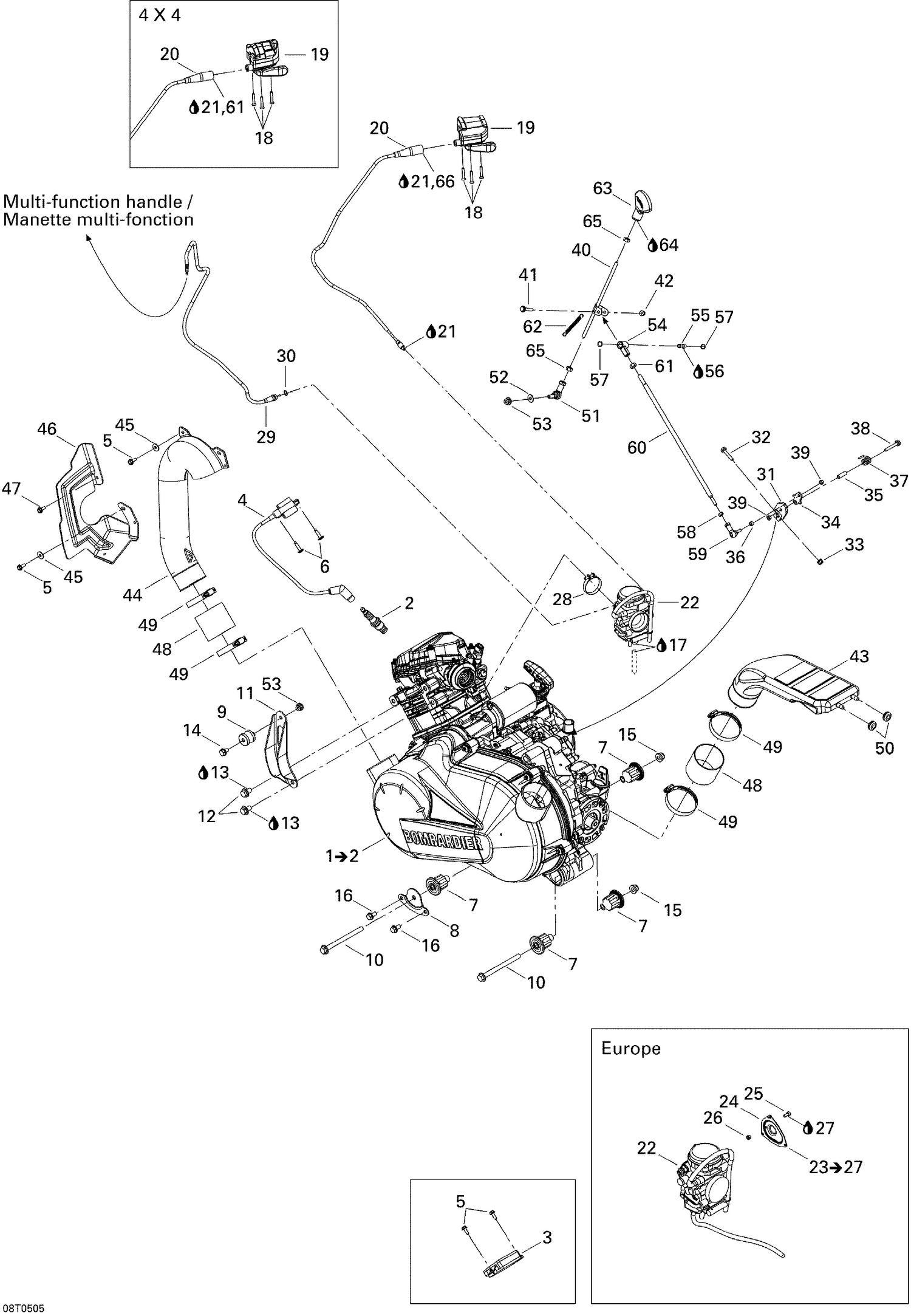

| Ref | Part Number | Description |
|---|
| 2 |
715900637 |
Spark Plug NGK DCPR8E This part replaces 707000246. |
| 4 |
420265358 |
IGNITION COIL ASS'Y - Call your local BRP dealership |
| 5 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 6 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 7 |
707000218 |
Anti-Vibration Mount |
| 8 |
707000220 |
LH FRONT ENGINE BRACKET - Call your local BRP dealership |
| 9 |
707000949 |
Rubber Isolator This part replaces 274000839. |
| 10 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 11 |
707000224 |
UPPER ENGINE BRACKET - Call your local BRP dealership |
| 12 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 13 |
293800060 |
Loctite 243, 10 ml |
| 14 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 15 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 16 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 17 |
413708300 |
Glue Tube, Loctite 454, 20 G |
| 18 |
205052588 |
Socket Head Screw M5 X 25 |
| 20 |
707000226 |
THROTTLE CABLE - Call your local BRP dealership |
| 21 |
293600041 |
CABLE LUBRICANT, 400 G - Call your local BRP dealership |
| 28 |
293650164 |
GEMI CLAMP - Call your local BRP dealership |
| 29 |
707000228 |
CHOKE CABLE - Call your local BRP dealership |
| 30 |
293300075 |
O-RING - Call your local BRP dealership |
| 31 |
707000503 |
Lever This part replaces 707000295. |
| 32 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 34 |
707000507 |
Pivot Plate This part replaces 707000309. |
| 35 |
293900079 |
Bushing This part replaces 293900050. |
| 36 |
293900104 |
Bushing This part replaces 293900029. |
| 37 |
707000310 |
Spring |
| 38 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 39 |
232561414 |
Elastic Stop Nut M6 |
| 40 |
707000786 |
Lever Arm This part replaces 707000258. |
| 41 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 42 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 43 |
707000361 |
AIR OUTLET - Call your local BRP dealership |
| 44 |
707000261 |
Air Intake |
| 45 |
250200082 |
Flat Washer This part replaces 391302000. |
| 46 |
707000697 |
CVT WATER DEFLECTOR - Call your local BRP dealership This part replaces 707000304. |
| 47 |
414745900 |
Tuflock Phillips Plastic Screw |
| 48 |
707000154 |
FLEXIBLE ADAPTOR - Call your local BRP dealership |
| 49 |
293650064 |
Tridon Clamp |
| 50 |
709000582 |
Grommet This part replaces 293720053. |
| 51 |
707001959 |
RH Ball Joint This part replaces 707000278. |
| 52 |
234081410 |
Flat Washer 8 mm |
| 53 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 54 |
707000568 |
PIVOT - Call your local BRP dealership This part replaces 707000279. |
| 55 |
293900075 |
Bushing This part replaces 293900047. |
| 56 |
293550010 |
Synthetic Grease, 400 G |
| 57 |
414583300 |
O-RING - Call your local BRP dealership |
| 58 |
232066414 |
LH HEX. NUT M6 - Call your local BRP dealership |
| 59 |
707000545 |
LH BALL JOINT - Call your local BRP dealership This part replaces 707000143. |
| 60 |
707000567 |
Threaded Rod This part replaces 707000280. |
| 61 |
232081414 |
Hex. Nut M8 |
| 62 |
707000569 |
Spring This part replaces 707000281. |
| 63 |
707000284 |
Lever Handle |
| 64 |
293800060 |
Loctite 243, 10 ml |
| 65 |
232081414 |
Hex. Nut M8 |
