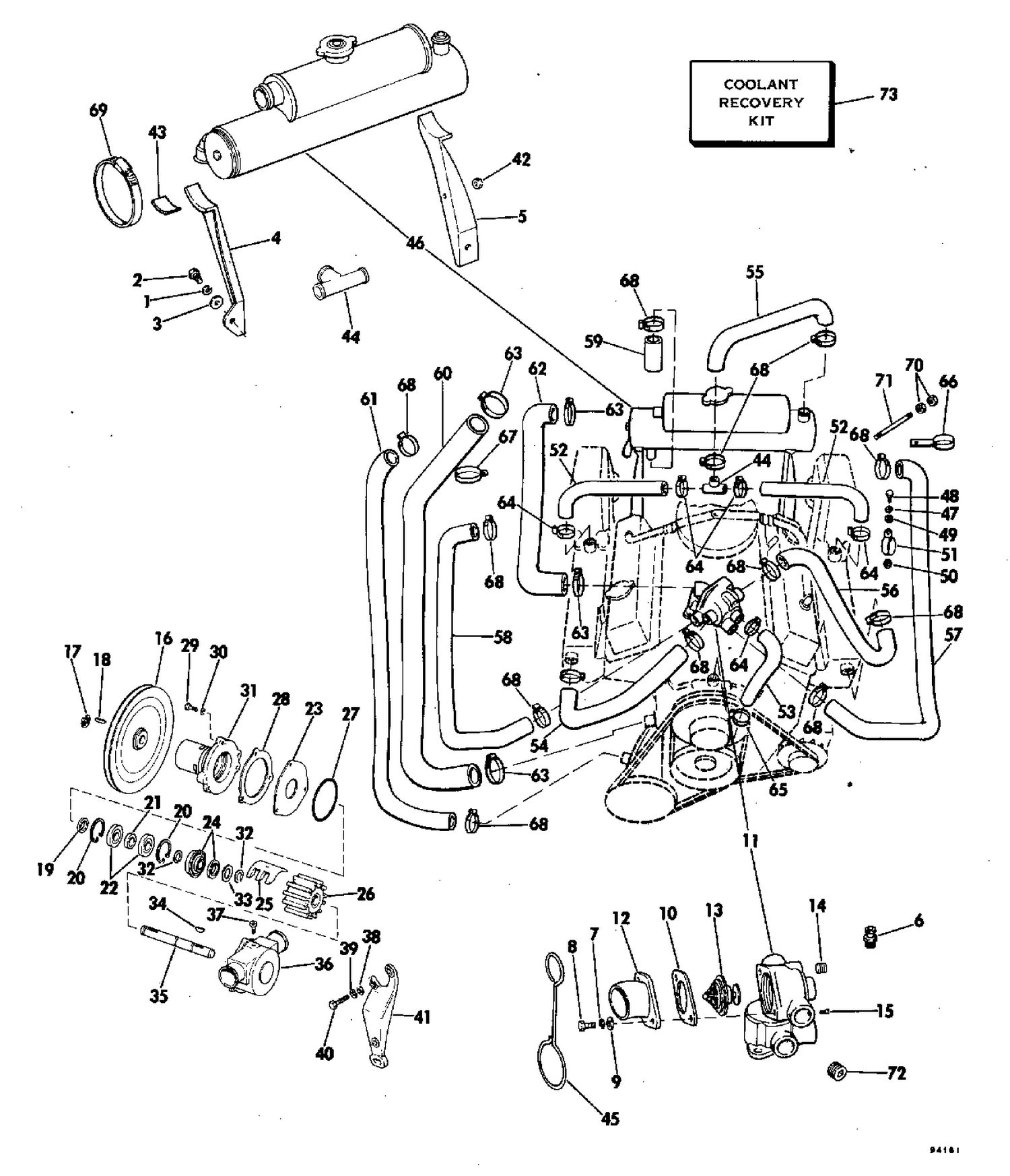

| Ref | Part Number | Description |
|---|
| 1 |
0120177 |
L'WASHER, Alternator to brkt |
| 1 |
0303269 |
L'WASHER, Upper |
| 2 |
0306414 |
SCREW |
| 2 |
0306539 |
BOLT, Distributor |
| 2 |
0306838 |
BOLT, Bracket to head |
| 2 |
0310896 |
SCREW |
| 4 |
0909837 |
BRACKET, Heat exchanger, starboard |
| 4 |
0909839 |
BRACKET, Heat exchanger, starboard |
| 4 |
0909884 |
BRACKET, Heat exchanger, starboard |
| 4 |
0909886 |
BRACKET, Heat exchanger, starboard |
| 5 |
0909838 |
BRACKET, Heat exchanger, port |
| 5 |
0909840 |
BRACKET, Heat exchanger, port |
| 5 |
0909879 |
BRACKET, Heat exchanger, port |
| 5 |
0909885 |
BRACKET, Heat exchanger, port |
| 6 |
0909864 |
NIPPLE, Water pump by-pass |
| 7 |
030632K |
LOCKWASHER, Screw, nipple to housing |
| 8 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 9 |
0306453 |
LOCKWASHER, Fuel pump |
| 10 |
3701777 |
GASKET, Nipple to hsg |
| 11 |
0909832 |
THERMOSTAT HOUSING |
| 12 |
0909833 |
NIPPLE, Thermostat |
| 13 |
0981966 |
TERHMOSTAT |
| 15 |
0160280 |
DRIVE SCREW |
| 16 |
098229M |
PULLEY ASSY |
| 17 |
0121599 |
BOWED "E" RING |
| 18 |
0910129 |
KEY, Pulley to shaft |
| 19 |
0910127 |
SPACER, Puller to brg (1) |
| 20 |
0548323 |
RETAINING RING |
| 21 |
0910126 |
SPACER, Bearing |
| 22 |
0982299 |
BEARING |
| 23 |
3854295 |
END PLATE This part replaces 0910131. |
| 24 |
0982298 |
SEAL & SEAT ASSY |
| 25 |
0910130 |
CAM, Impeller |
| 26 |
0910132 |
IMPELLER |
| 27 |
3854293 |
O-RING, Housing This part replaces 0909694. |
| 28 |
3854296 |
GASKET, Plate to body This part replaces 0910134. |
| 29 |
3854297 |
SCREW, Body to hsg. This part replaces 0910135. |
| 30 |
3854292 |
LOCK WASHER, Screw to hsg. This part replaces 0304145. |
| 31 |
0910123 |
BODY |
| 32 |
0910121 |
RETAINING RING |
| 33 |
0910122 |
THRUST WASHER, Seal |
| 34 |
3854294 |
KEY, Impeller This part replaces 0910120. |
| 35 |
0910125 |
SHAFT |
| 36 |
0910118 |
HOUSING |
| 37 |
0910119 |
SCREW, Cam |
| 39 |
0120255 |
LOCKWASHER |
| 40 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 41 |
0909816 |
BRACKET, Water pump |
| 42 |
0314898 |
L'NUT, Stud, alt frt |
| 43 |
0909842 |
PAD, Bracket, heat exchanger |
| 44 |
0909861 |
TEE, Hose, water discharge |
| 45 |
0910077 |
SUPPORT, Hose, starboard |
| 46 |
0982353 |
HEAT EXCHANGER |
| 46 |
0982354 |
HEAT EXCHANGER |
| 48 |
0306403 |
SCREW, Hose clip to spacer, car stud |
| 49 |
0306453 |
LOCKWASHER, Fuel pump |
| 50 |
0908218 |
NUT, Long |
| 51 |
0909844 |
CLIP, Hose |
| 52 |
HOSE, |
Tee to high rise |
| 53 |
0909865 |
HOSE, Housing to water pump by-pass |
| 54 |
0909867 |
HOSE, Manifold to housing starboard |
| 54 |
0909877 |
HOSE, Manifold to housing |
| 55 |
0909869 |
HOSE, Heat exchanger to tee |
| 55 |
0909888 |
HOSE, Heat exchanger to tee |
| 56 |
0909870 |
HOSE, Manifold to housing port |
| 56 |
0909889 |
HOSE, Manifold to housing, port |
| 57 |
0909871 |
HOSE, Block to manifold, port |
| 57 |
0909875 |
HOSE, Block to manifold, port |
| 58 |
0909872 |
HOSE, Block to manifold starboard |
| 58 |
0909876 |
HOSE, Block to manifold starboard |
| 59 |
0909890 |
HOSE, Oil cooler to heat exchanger |
| 60 |
0909873 |
HOSE, Water pump to heat aexchanger |
| 60 |
HOSE, |
Water pump to heat exchanger |
| 61 |
0909814 |
HOSE, Water pump to clr |
| 62 |
0909841 |
HOSE, Thermo housing to heat exchanger |
| 62 |
0909874 |
HOSE, Thermo housing to heat exchanger |
| 64 |
0912627 |
CLAMP This part replaces 0313851. |
| 65 |
0979803 |
CLAMP |
| 66 |
0910075 |
CLAMP, Hose to manifold |
| 67 |
0910076 |
CLAMP, Hose, stud, stbd |
| 68 |
098057M |
CLAMP, Hose |
| 69 |
3852604 |
CLAMP, Exhaust This part replaces 0981323. |
| 70 |
0306320 |
NUT |
| 71 |
0315821 |
STUD, Carburetor mounting, front |
| 72 |
0908276 |
CAP PLUG |
| 0981939 |
0981939 |
WATER PUMP ASSEMBLY |
