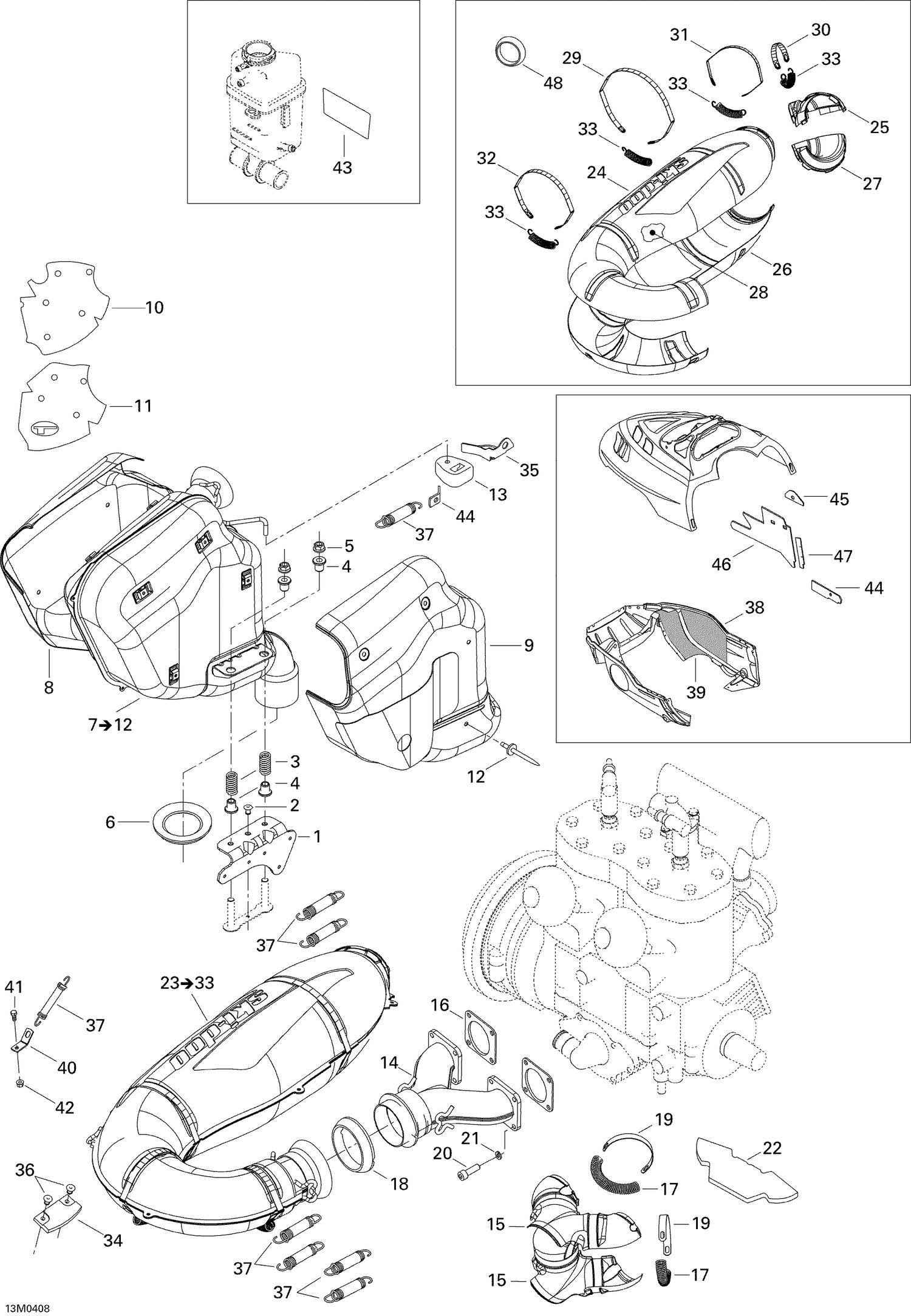

01- Exhaust System
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514053263 | Muffler Bracket |
| 2 | 390402200 | Pop Rivet 3/16" |
| 3 | 414913700 | SPRING - Call your local BRP dealership |
| 4 | 514053343 | GUIDE - Call your local BRP dealership |
| 5 | 233481413 | Lock Spring Nut M8 |
| 6 | 514053064 | Exhaust Grommet |
| 8 | 514053694 | RH Heat Shield |
| 9 | 514053680 | LH Heat Shield |
| 10 | 514053681 | RH Insulating Wool |
| 11 | 514053682 | LH Insulating Wool |
| 12 | 390910000 | Pop Rivet 3/16” |
| 13 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 15 | 514053593 | Enveloppe, Exhaust Manifold |
| 17 | 514053643 | Spring |
| 18 | 514053487 | Exhaust Gasket |
| 19 | 514053603 | RETAINING STRAP - Call your local BRP dealership |
| 20 | 205062044 | Socket Head Screw M6 X 20 |
| 21 | 234161471 | Lock Washer M6, Black |
| 22 | 514053588 | INSULATING WOOL - Call your local BRP dealership |
| 24 | 514053690 | Upper Enveloppe |
| 25 | 514053313 | REAR UPPER ENVELOPE - Call your local BRP dealership |
| 26 | 514053691 | Lower Envelope |
| 27 | 514053314 | REAR LOWER ENVELOPE - Call your local BRP dealership |
| 28 | 514053696 | Insulating Wool |
| 29 | 514053540 | RETAINING STRAP - Call your local BRP dealership |
| 30 | 514053492 | Retaining Strap |
| 31 | 514053500 | RETAINING STRAP - Call your local BRP dealership |
| 32 | 514053512 | RETAINING STRAP - Call your local BRP dealership |
| 33 | 514053643 | Spring |
| 34 | 570044100 | Rubber Pad |
| 35 | 514053442 | SUPPORT - Call your local BRP dealership |
| 36 | 293150103 | Pop Rivet 3/16" |
| 37 | 415107100 | Spring |
| 38 | 514052718 | Reflective Sheet |
| 39 | 514053390 | REFLECTIVE SHEET - Call your local BRP dealership |
| 40 | 514053436 | Spring Bracket |
| 41 | 207151244 | Hex. Screw M5 X 12 |
| 42 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 43 | 514053399 | Reflective Sheet |
| 44 | 514053435 | Reflective Sheet, Black Cab |
| 45 | 514053446 | Reflective Sheet, Black Cab |
| 46 | 514053624 | Reflective Sheet |
| 47 | 514053450 | Reflective Sheet |
