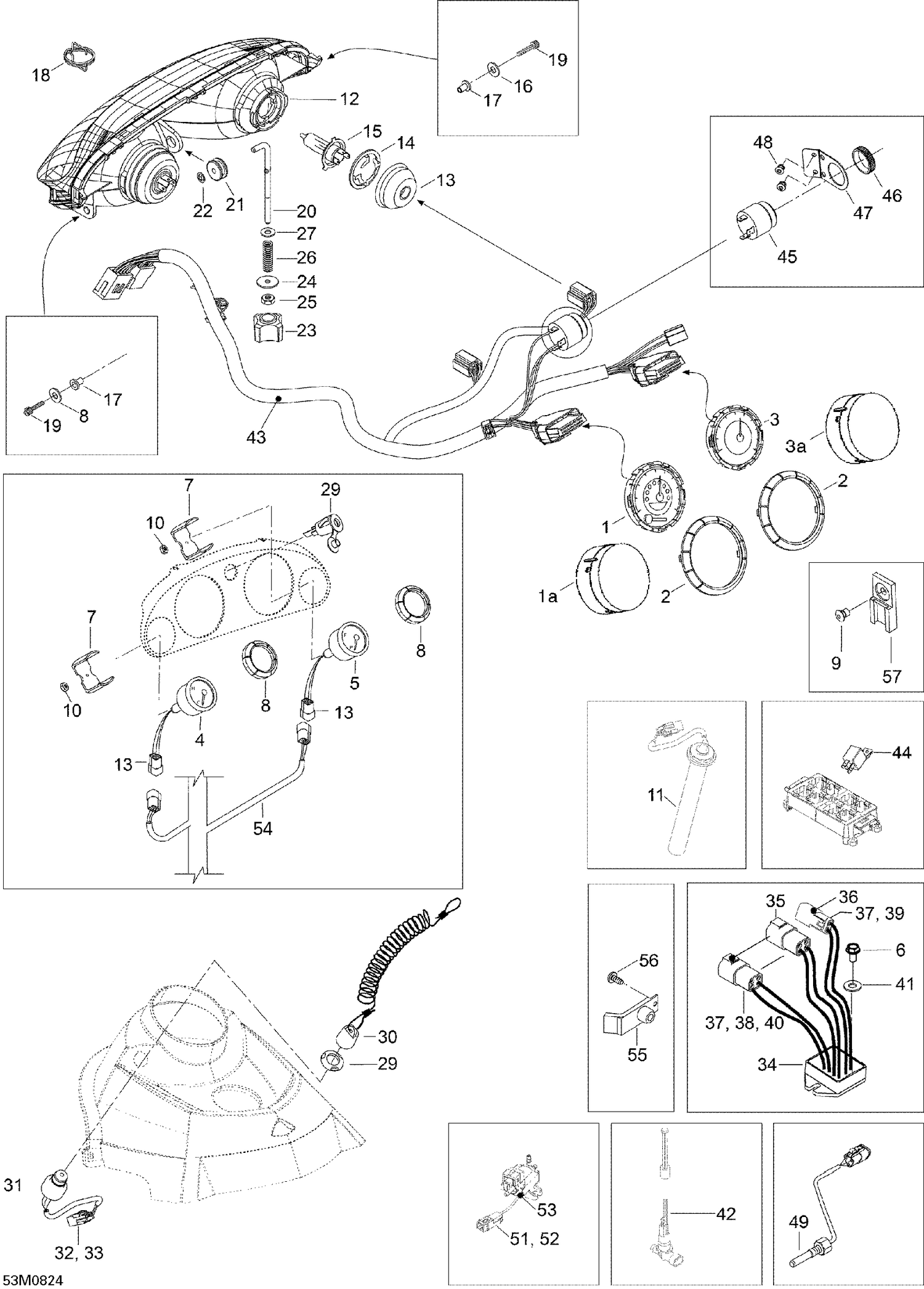

| Ref | Part Number | Description |
|---|
| 1 |
515176477 |
SPEEDOMETER - Call your local BRP dealership |
| 1a |
415128938 |
REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 3 |
515176478 |
TACHOMETER - Call your local BRP dealership |
| 3a |
415129320 |
Lens This part replaces 415128937. |
| 4 |
515176214 |
Temperature Gauge |
| 5 |
515176215 |
FUEL GAUGE - Call your local BRP dealership |
| 6 |
M40322 |
Screw |
| 7 |
515176235 |
HOLDER CASE - Call your local BRP dealership |
| 8 |
515176216 |
RING GAUGE - Call your local BRP dealership |
| 9 |
36005 |
Rivet This part replaces M36005. |
| 10 |
232541414 |
Elastic Stop Nut M4 |
| 11 |
605354909 |
FUEL SENSOR - Call your local BRP dealership |
| 12 |
515176311 |
Halogen Headlamp Ass'y |
| 16 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 17 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 18 |
M5447238 |
SPRING - Call your local BRP dealership |
| 19 |
M40235 |
Screw M5X35 |
| 20 |
605450023 |
ADJUSTER ROD - Call your local BRP dealership |
| 21 |
415100800 |
Grommet - Call your local BRP dealership |
| 22 |
36084 |
Safety Washer This part replaces M36084. |
| 23 |
515175548 |
Handle - Call your local BRP dealership |
| 24 |
M20038 |
WASHER - Call your local BRP dealership |
| 25 |
232561414 |
Elastic Stop Nut M6 |
| 26 |
415100600 |
SPRING - Call your local BRP dealership |
| 27 |
234061410 |
Flat Washer 6 mm |
| 28 |
710001248 |
DC Outlet |
| 29 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 30 |
515178284 |
DESS This part replaces 515176461. |
| 31 |
515177249 |
DESS Switch This part replaces 515175797. |
| 32 |
515175232 |
Male Terminal |
| 33 |
515175494 |
Male Housing, 3 Circuits |
| 34 |
515176243 |
Voltage Regulator |
| 35 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 36 |
278001674 |
Mâle Terminal Housing, 2 Circuits |
| 37 |
515175568 |
Male Terminal |
| 38 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 39 |
278001672 |
Male Lock, 2 Circuits |
| 40 |
293000052 |
Sealing Cap |
| 41 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 42 |
605452095 |
OIL SENSOR - Call your local BRP dealership |
| 43 |
605355336 |
MAIN HARNESS - Call your local BRP dealership |
| 44 |
515177672 |
Relais *Relay This part replaces 410113604. |
| 45 |
515176035 |
HORN - Call your local BRP dealership |
| 46 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 47 |
M5447941 |
Holder |
| 48 |
36005 |
Rivet This part replaces M36005. |
| 49 |
515176132 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 50 |
515176473 |
Heater Element Ass'y |
| 51 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 52 |
515175232 |
Male Terminal |
| 53 |
512059809 |
Heating Element Bracket |
| 54 |
605354914 |
HARNESS ASS'Y - Call your local BRP dealership |
| 55 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 56 |
293700048 |
Screw Plastofast Mp 6 X 16 Pz This part replaces M40905. |
