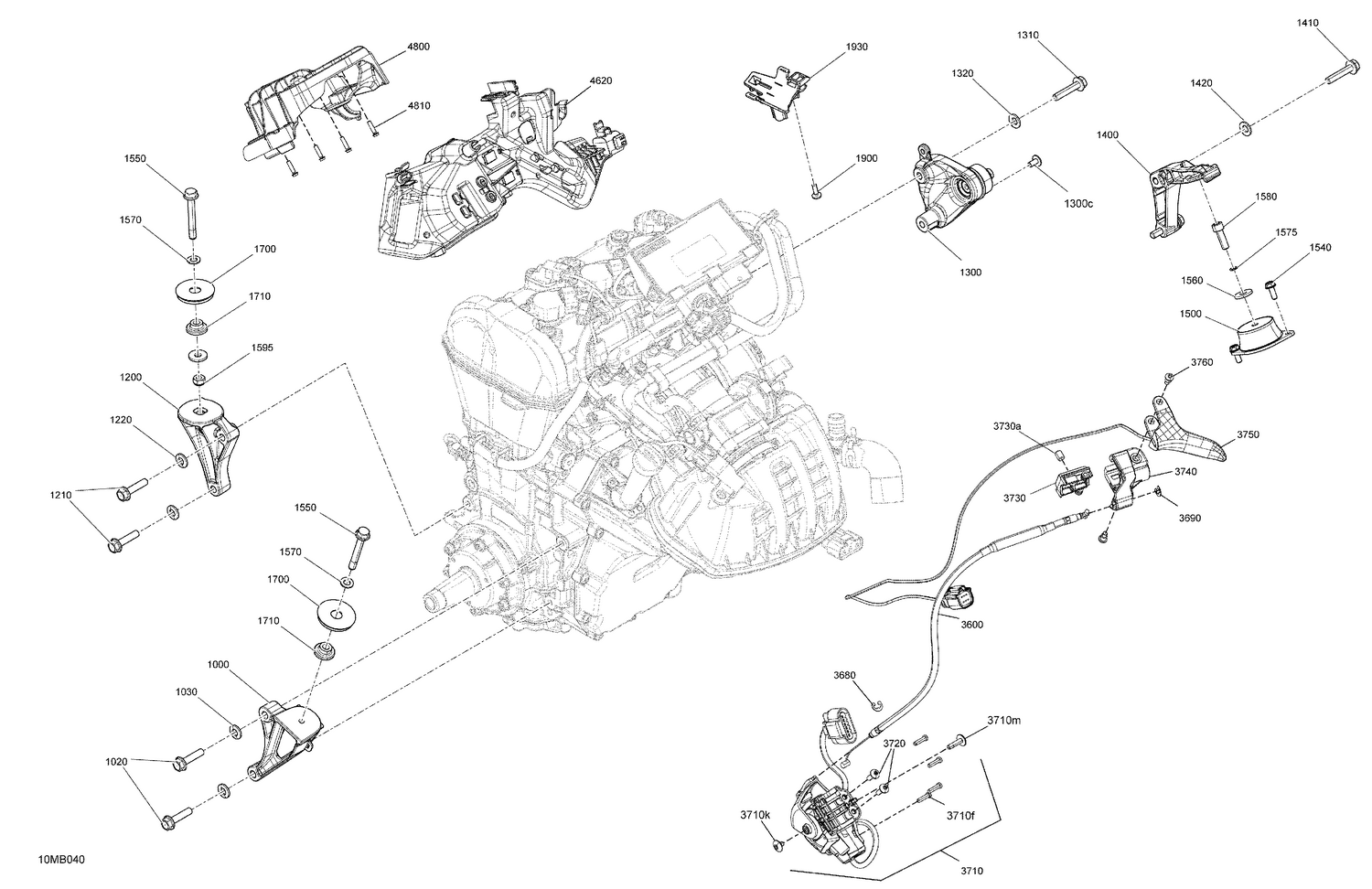

02- Engine - System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 512061220 | Rear PTO Support |
| 1020 | 250000986 | Hex. Flange Screw M8 X 35 |
| 1030 | 250200146 | Conical Spring Washer M8 |
| 1200 | 512061193 | Front PTO Support |
| 1210 | 250000986 | Hex. Flange Screw M8 X 35 |
| 1220 | 250200146 | Conical Spring Washer M8 |
| 1300c | 250000767 | Torx Truss Screw M6 X 12 |
| 1310 | 250001057 | Hex. Flange Screw M8 X 40 Scotch.GRIP |
| 1320 | 250200146 | Conical Spring Washer M8 |
| 1400 | 512061194 | Rear Support, Mag |
| 1410 | 250001057 | Hex. Flange Screw M8 X 40 Scotch.GRIP |
| 1420 | 250200146 | Conical Spring Washer M8 |
| 1500 | 512061514 | Rubber Mount |
| 1540 | 250001062 | Hex. Flange Screw M6 X 16 |
| 1550 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 1560 | 503183200 | Yellow, Washer |
| 1570 | 250200008 | Flat Washer With Teflon 8 mm |
| 1575 | 293300123 | O-Ring |
| 1580 | 205082544 | Socket Head Screw M8 X 25 |
| 1595 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1700 | 512061408 | Engine Stopper |
| 1710 | 512060285 | Spacer |
| 1900 | 250000720 | Torx Screw K50 X 16 |
| 1930 | 512061327 | Support Solenoid |
| 3600 | 512061396 | Throttle Cable |
| 3680 | 414274500 | Circlip |
| 3690 | 414274500 | Circlip |
| 3710f | 250000671 | Torx Screw |
| 3710k | 512060961 | Screw |
| 3710m | 250000528 | Torx Screw M5 X 20 |
| 3720 | 250000742 | Torx Screw M5 X 14 |
| 3730a | 414440800 | Socket Set Screw M8 X 10 |
| 3740 | 512060860 | Lower Housing |
| 3750 | 512061266 | Throttle Ass'y |
| 3760 | 250000991 | Flange Screw M5x12 |
| 4620 | 512061395 | Multi Purpose Support |
| 4800 | 512061397 | Module Support |
