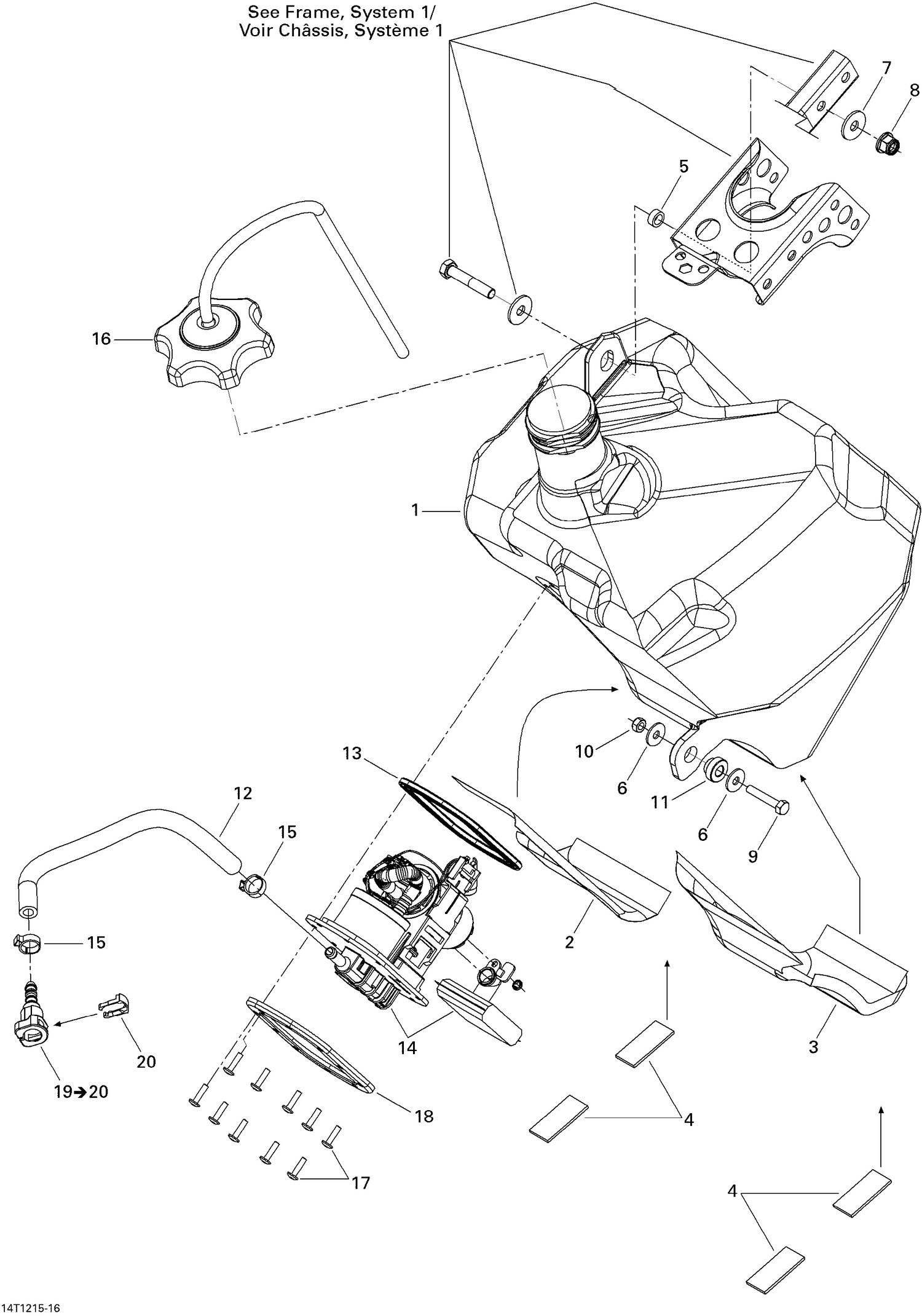

02- Fuel System
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709000237 | FUEL TANK - Call your local BRP dealership |
| 2 | 709000242 | REFLECTIVE SHEET - Call your local BRP dealership |
| 3 | 709000243 | REFLECTIVE SHEET - Call your local BRP dealership |
| 4 | 709000401 | Rubber Pad |
| 5 | 293900067 | BUSHING - Call your local BRP dealership |
| 6 | 250200082 | Flat Washer |
| 7 | 234082430 | Flat Washer M8 |
| 8 | 233281434 | Hex. Flange Elastic Nut M8 |
| 9 | 207063544 | Hex. Flange Screw M6 X 35 |
| 10 | 232561434 | Elastic Stop Nut M6 |
| 11 | 293900088 | BUSHING - Call your local BRP dealership |
| 12 | 219704440 | Was 709000163 Fuel Line |
| 13 | 709000540 | Joint Etanche *Gasket This part replaces 709000109. |
| 14 | 709000386 | Fuel Pump |
| 15 | 293650047 | Crimp Clamp, 15.3-706R |
| 16 | 709000117 | FUEL CAP - Call your local BRP dealership |
| 17 | 250000750 | Torx Screw M4 X 16 This part replaces 250000242. |
| 18 | 709000170 | Pump Ring |
