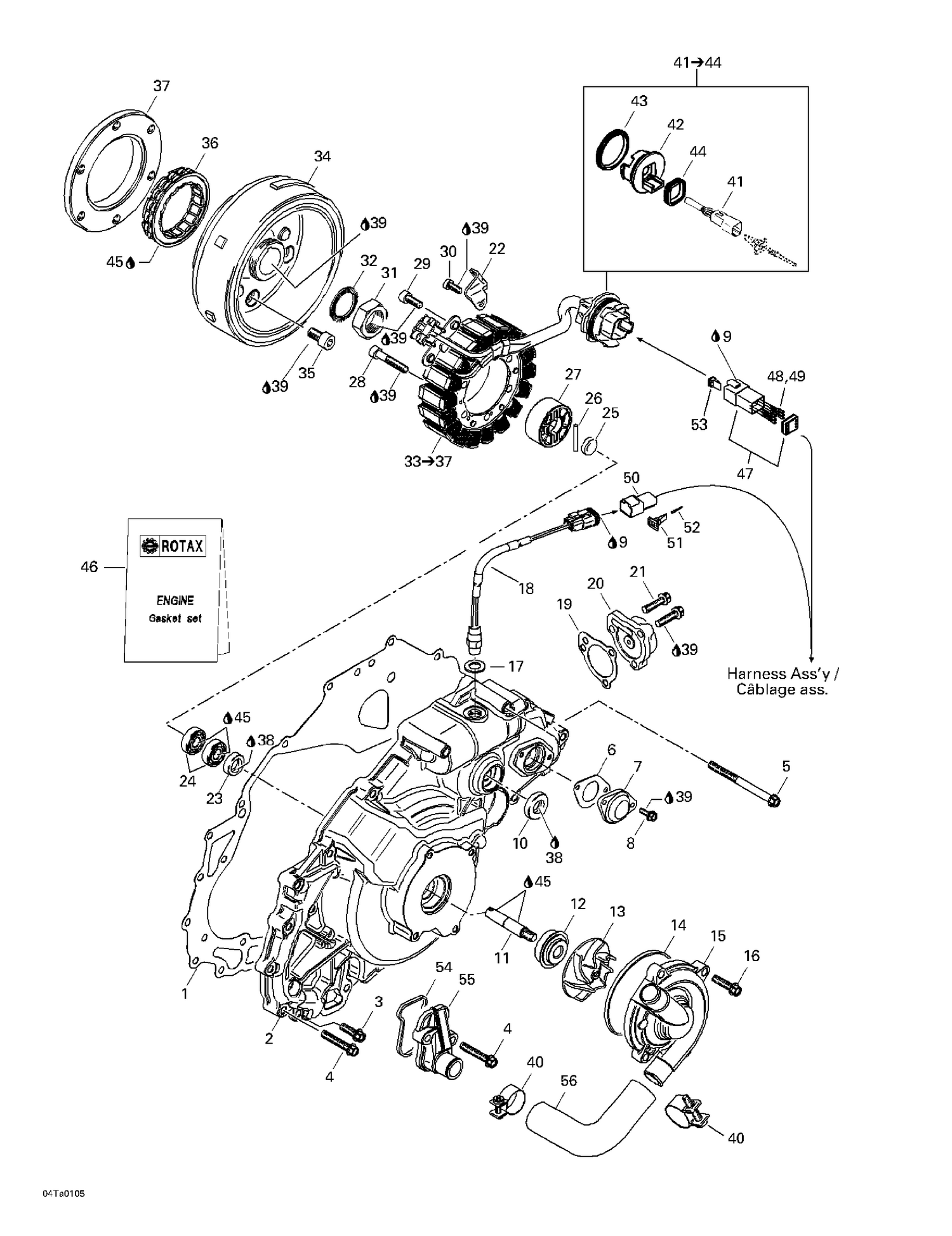

03- Ignition And Water Pump
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 711650602 | Gasket, Ignition Cover |
| 2 | 711211825 | Ignition Cover |
| 3 | 711241861 | Hex. Flange Screw M6 x 20 |
| 4 | 711941126 | Hex. Flange Screw M6 x 35 |
| 5 | 711940576 | Hex. Flange Screw M6 x 70 |
| 6 | 711630050 | Gasket |
| 7 | 711627450 | Cover |
| 8 | 420440291 | SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership This part replaces 711440291. |
| 9 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 10 | 420250450 | Oil Seal This part replaces 711250450. |
| 11 | 711220560 | Water Pump Shaft |
| 12 | 420650371 | Rotary Seal This part replaces 420650370. |
| 13 | 711222540 | Water Impeller |
| 14 | 711650570 | Rubber Ring |
| 15 | 711222550 | Water Pump Housing |
| 16 | 711241911 | Hex. Screw M6 x 25 |
| 17 | 711250735 | Gasket Ring |
| 18 | 711265780 | Ball Switch |
| 19 | 711650640 | Hydraulic Cover Gasket |
| 20 | 711211950 | Hydraulic Cover |
| 21 | 711241911 | Hex. Screw M6 x 25 |
| 22 | 711251180 | Cable Clamp |
| 23 | 711250080 | Oil Seal |
| 24 | 711632170 | Ball Bearing |
| 25 | 711247030 | Distance Sleeve |
| 26 | 711932885 | Needle Pin |
| 27 | 711659190 | Pawl |
| 28 | 711941126 | Hex. Flange Screw M6 x 35 |
| 29 | 711241751 | Hex. Flange Screw M6 x 16 |
| 30 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership This part replaces 732600027. |
| 31 | 711242875 | Nut M22 |
| 32 | 711245875 | Washer 22 mm |
| 34 | Not | Available As Spare Part - Rotor With Sprag Clutch Ass'y |
| 35 | 205081644 | SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership |
| 36 | 420659117 | SPRAG CLUTCH - Call your local BRP dealership This part replaces 711659117. |
| 37 | 420659129 | Clutch Sprag Housing This part replaces 711659220. |
| 38 | 413707000 | Dow Corning 111, 150 g |
| 39 | 293800060 | Loctite 243, 10 ml |
| 40 | 711251222 | Gear Clamp |
| 41 | 710001539 | Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 42 | 270000138 | Adaptor |
| 43 | 293300033 | Gasket |
| 44 | 293200055` | Gasket |
| 45 | Not | Available As Spare Part - Engine Oil |
| 46 | 711296373 | Engine Gasket Set |
| 47 | 710001540 | CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736. |
| 48 | 278000632 | Female Terminal |
| 49 | 278001661 | FEMALE TERMINAL - Call your local BRP dealership This part replaces 710000034. |
| 50 | 515175257 | Male Housing (2 Circuits) |
| 51 | 515175258 | Male Lock (2 Circuits) |
| 52 | 409014800 | MALE TERMINAL - Call your local BRP dealership |
| 53 | 278000737 | MALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 54 | 711650940 | Sealing Ring |
