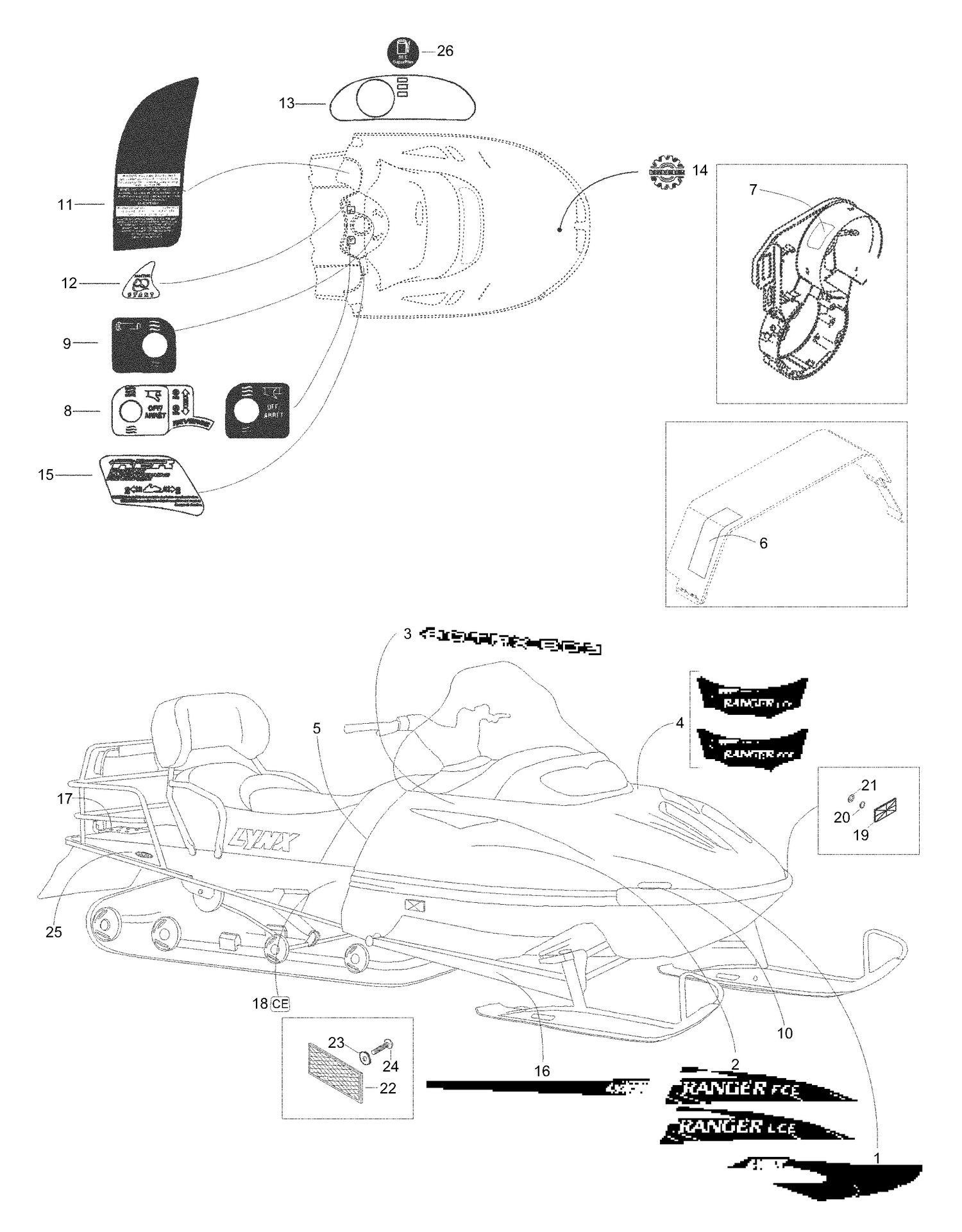

09- Decals
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5347007 | L.H. hood decal, front |
| 1 | 5347008 | R.H. hood decal, front |
| 2 | 5346502 | R.H. hood decal |
| 2 | 5346503 | L.H. hood decal |
| 3 | 5346508 | Rotax 503, decal |
| 4 | 5346504 | Front hood decal |
| 5 | 544068 | Oil check decal |
| 6 | 546820 | Instruction label |
| 7 | 544073 | Fan Belt Decal |
| 8 | 516000262 | Heat thumb decal |
| 9 | 414898500 | Dash decal |
| 10 | 861805523 | Kit Yellow Rear Reflector This part replaces 418001009. |
| 11 | 414935000 | Warning decal |
| 12 | 516000271 | Electric decal |
| 13 | 5347036 | Dash dekal |
| 14 | 516008738 | Logo 48mm "BRP" This part replaces 516000983. |
| 15 | 418001602 | RER label |
| 16 | 5346510 | Swing Arm Decal R.H. |
| 16 | 5346511 | Swing Arm Decal L.H. |
| 17 | 5447073 | Warning label |
| 18 | 5445636 | CE-decal |
| 19 | 21148 | Reflector, White |
| 20 | 48227 | O-ring |
| 21 | 41034 | Locking ring |
| 22 | 414510200 | REFLECTOR, AMBER - Call your local BRP dealership |
| 23 | 20018 | Washer |
| 24 | 40070 | Slot sc. M5 x 10DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 25 | 21121 | REFLECTOR (YELLOW) - Call your local BRP dealership |
