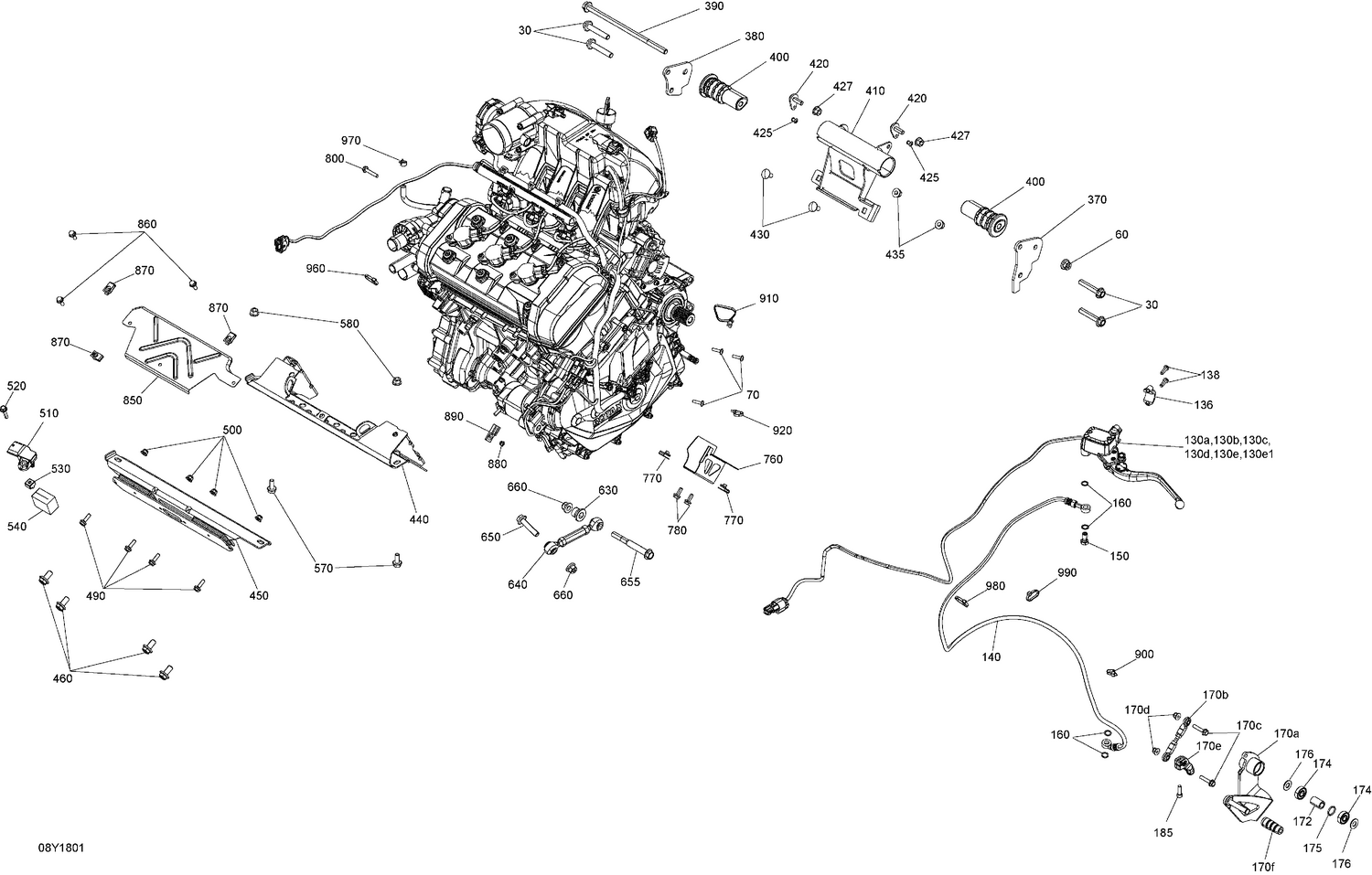

01- Engine
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 207505544 | Hex. Flange Screw M10 X 55, Scotch Grip |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 |
| 70 | 250000724 | Torx Screw M5 X 20 |
| 370 | 707001293 | LH Engine Support |
| 380 | 707001294 | RH Engine Support |
| 390 | 250000507 | Hex. Flange Screw M10 X 220 |
| 400 | 707000973 | Rubber Mount |
| 410 | 707000877 | Frame Extension |
| 420 | 707001292 | Attach |
| 425 | 390402300 | Pop Rivet 3/16" |
| 427 | 233081416 | Hex. Flange Nut M8 |
| 430 | 207782046 | Carriage Bolt M8 X 20 |
| 435 | 233081416 | Hex. Flange Nut M8 |
| 440 | 707001561 | Front Engine Support |
| 450 | 707000876 | Rubber Mount |
| 460 | 207502044 | Hex Flange Screw M10 X 20 |
| 490 | 207662044 | Hex. Flange Screw M6 X 20 |
| 500 | 233261466 | Hex. Flange Elastic Nut M6 |
| 510 | 707000995 | Pressure And Temperature Sensor |
| 520 | 207662554 | Hex. Flange Screw M6 X 25 |
| 540 | 707000586 | Foam Filter |
| 570 | 207682046 | Hex. Flange Screw M8 X 20 |
| 580 | 233081416 | Hex. Flange Nut M8 |
| 630 | 707001736 | Spacer |
| 640 | 707001918 | Connecting Rod |
| 650 | 207504546 | Hex. Flange Screw M10 X 45 Scotch Grip |
| 655 | 250001099 | Hex. Flange Screw M10 X 100 This part replaces 250000702. |
| 660 | 233201436 | Hex. Flange Elastic Nut M10 |
| 760 | 707001353 | Connector Support |
| 770 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 780 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 850 | 707601057 | Upper Heat Deflector |
| 860 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 870 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 880 | 390402200 | Pop Rivet 3/16" |
| 890 | 270000141 | Clip |
| 910 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 920 | 293750008 | Tie Wrap 368 mm |
