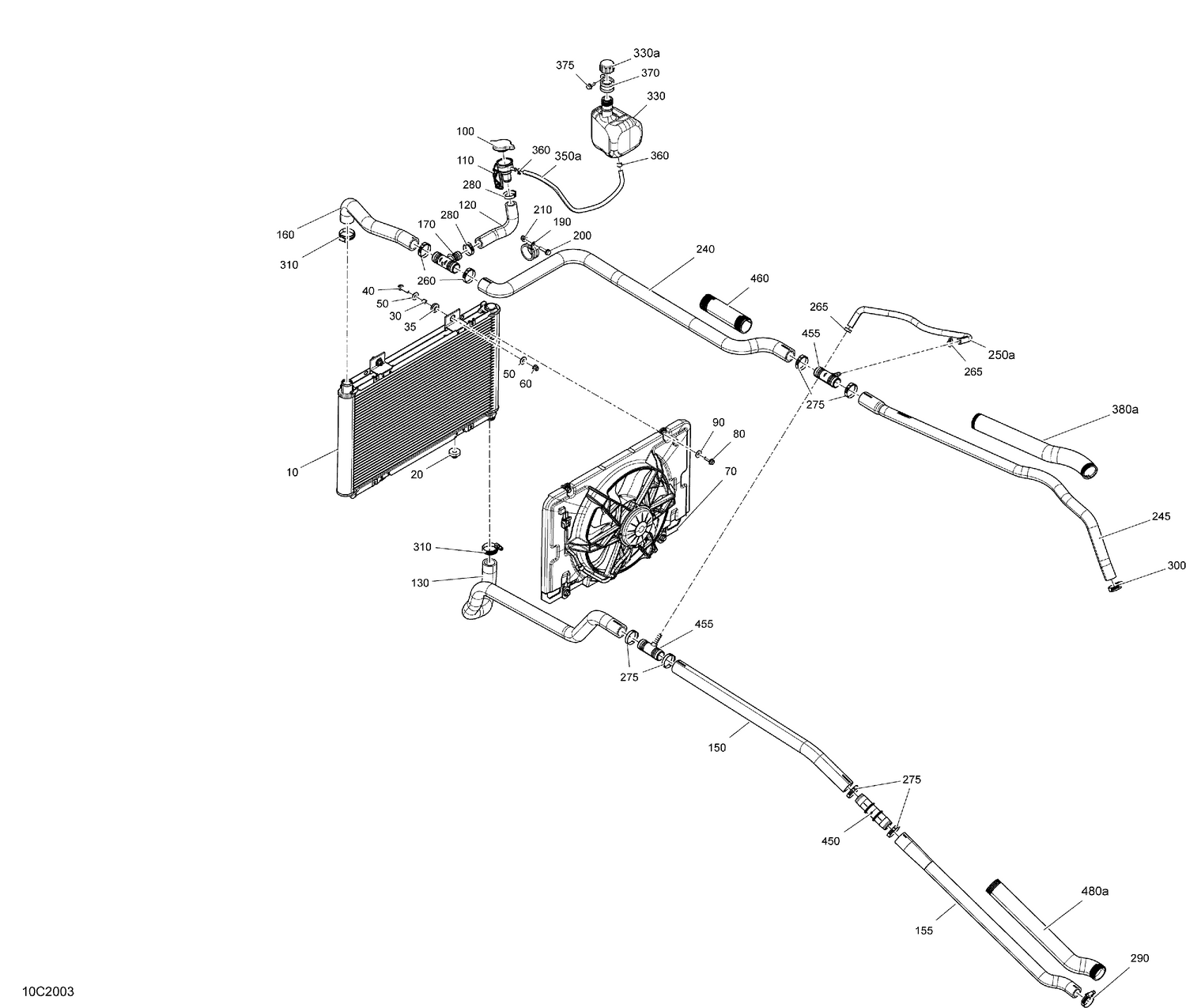

01- Cooling - System
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709200395 | Radiator |
| 20 | 709200285 | Grommet |
| 30 | 293900105 | Bushing |
| 35 | 709000582 | Grommet This part replaces 293720053. |
| 40 | 207662534 | Hex. Flange Screw M6 X 25 |
| 50 | 250200082 | Flat Washer |
| 60 | 233261434 | Flange Elastic Nut M6 |
| 70 | 709200566 | Fan Ass'y |
| 80 | 207662044 | Hex. Flange Screw M6 X 20 |
| 90 | 234062410 | Flat Washer 6 mm |
| 100 | 709200207 | Radiator Pressure Cap |
| 110 | 709200179 | Filler Neck |
| 120 | 709200264 | Filler Neck Hose |
| 130 | 709200620 | Radiator Inlet Hose |
| 150 | 709200809 | Pump Hose This part replaces 709200619. |
| 155 | 709200496 | Pump Hose |
| 160 | 709200265 | Radiator Outlet Hose |
| 170 | 509000372 | T-Fitting |
| 190 | 293650218 | Hose Retainer |
| 200 | 207662534 | Hex. Flange Screw M6 X 25 |
| 210 | 233261434 | Flange Elastic Nut M6 |
| 240 | 709200618 | Intermediate Hose |
| 245 | 709200617 | HOSE - Call your local BRP dealership |
| 260 | 509000162 | Gear Clamp |
| 265 | 293650053 | Crimp Clamp |
| 275 | 509000162 | Gear Clamp |
| 280 | 293650099 | Crimp Clamp |
| 290 | 293650098 | Norma Gear Clamp |
| 300 | 293650098 | Norma Gear Clamp |
| 310 | 293650098 | Norma Gear Clamp |
| 330a | 709200587 | Tank Cap |
| 350a | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 360 | 414554800 | Spring Clamp |
| 370 | 709200036 | Hose Anchor |
| 375 | 207661644 | Hex. Flange Screw M6 X 16 |
| 380a | 219704428 | Tubing 35 MM 1000MM Long |
| 450 | 509000914 | Fitting |
| 455 | 509000510 | T-Fitting |
| 460 | 219704428 | Tubing 35 MM 1000MM Long |
